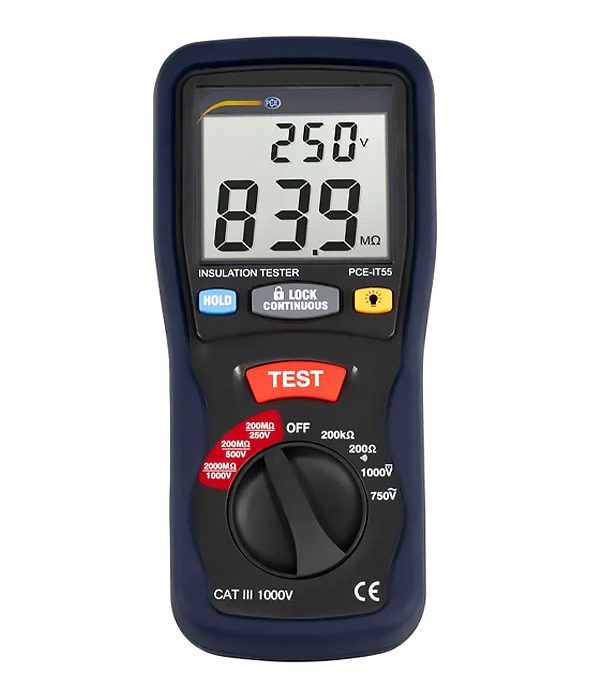

PCE-IT55 Insulation Meter
Short Description:
The PCE-IT55 is an insulation resistance tester or insulation meter used for measuring the insulation resistance of electrical systems and equipment. PCE IT55 is designed to assess the quality and safety of electrical insulation by measuring how well the insulation material resists the flow of electrical current.
Product purchase
AED 872 (excl.VAT)
18
People watching this product now!
Terms of sending goods ›
- In-stock items are delivered within 2 business days.
- We are not Supporting COD Payments Terms Outside UAE

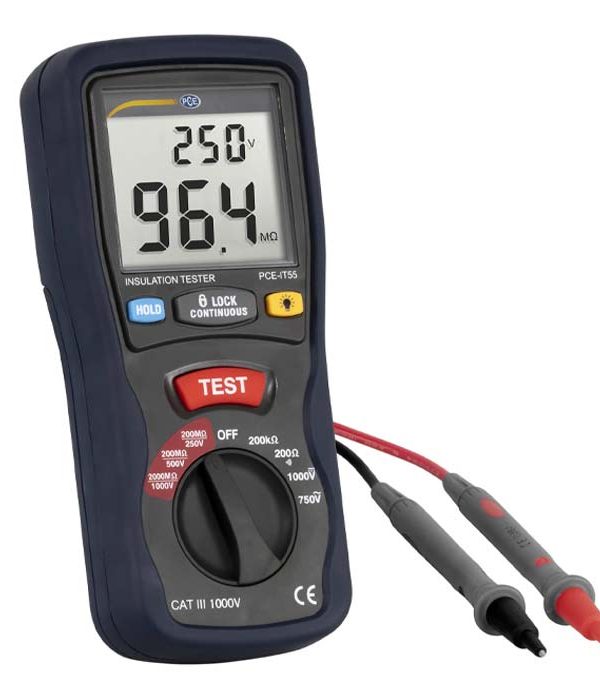

PCE-IT55 Insulation meter
The PCE-IT55 is an insulation resistance tester or insulation meter used for measuring the insulation resistance of electrical systems and equipment. PCE IT55 is designed to assess the quality and safety of electrical insulation by measuring how well the insulation material resists the flow of electrical current.
This is important in ensuring the integrity of electrical systems, as poor insulation can lead to electrical faults, short circuits, and even electrical fires.
Product Overview
Insulation resistances up to 2000 M and auxiliary voltages up to 1000 V are measured using the insulation meter. The PCE IT55 insulation meter also incorporates the measurement of resistance up to a maximum of 200 k, as well as DC voltages up to 1000 V DC and AC voltages up to 750 V AC. For resistances less than 40, the insulation tester does a continuity measurement. A buzzer signal enables a speedy inspection.
applications
An insulation meter is used to measure the electrical resistance of electrical cable insulation as well as to maintain and repair industrial electrical circuits, electrical installations, and electrical and electronic equipment.
PCE-IT55 Insulation meter features
- Insulation resistance up to 2000 M
- CAT III 1000 V according to standard IEC 1010-1
- A large LCD display with a backlight
- 30-minute automatic shutdown after inactivity
- HOLD and LOCK features – ISO calibration certificate is optional
PCE-IT55 Insulation meter specifications
AC voltage | ||
Measuring range | 0 … 750 V | |
Resolution | 1V | |
Accuracy | ±1.2% ±10 digits | |
DC voltage | ||
Measuring range | 0 … 1000 V | |
Resolution | 1V | |
Accuracy | ±0.8% ±3 digits | |
Resistance | ||
Measuring range | 0 … 200 kΩ | |
Resolution | 0.1Ω | 0 … 200 Ω |
1Ω | 200 … 200 kΩ | |
Accuracy | ±1.0% ±2 digits | |
Insulation resistance | ||
Measuring range | 0 … 2000 MΩ | |
Resolution | 0.1MΩ | 0 … 200 MΩ |
1MΩ | 200 … 2000 MΩ | |
Accuracy | ±3.5% ±5 digits | |
test voltage | 250 V for 200 MΩ | |
500 V for 200 MΩ | ||
1000 V for 2000 MΩ | ||
Other specifications | ||
Continuity test | Audible beep | ≤40Ω |
Loop current | ≤200mA | |
Screen | LCD with backlight | |
Automatic shutdown | After 30 minutes of inactivity | |
Feed | 6 x 1.5 V type AA batteries | |
Operational conditions | 0 … +40 ºC / <80 % Rh | |
Dimensions | 200 x 92 x 50mm | |
Weight | 470g (without batteries) | |
Standards | IEC 1010-1 / CAT III 1000V |
Dimensions |
200 x 92 x 50 mm / 7.9 x 3.6 x 2 in |
---|---|
Weight |
700 g / 1.5 lbs |
Power |
6 AA batteries |
Earth Resistance Test(range/resolution/accuracy) |
0-200 Ω/0.1 Ω/±1.0% ± 2 digits ,200 … 2000 Ω/1 Ω/±1.0% ± 2 digits |
Insulation resistance(range/resolution/accuracy) |
0-200 MΩ/100 kΩ to1 MΩ/±3.5% ± 5 digits ,200…2000 MΩ/100 kΩ to1 MΩ/±3.5% ± 5 digits |
Test current(range/resolution/accuracy) |
≤200-mA |
Test voltage(range/resolution/accuracy) |
1000V – 2000 MΩ ,500V – 200 MΩ |
