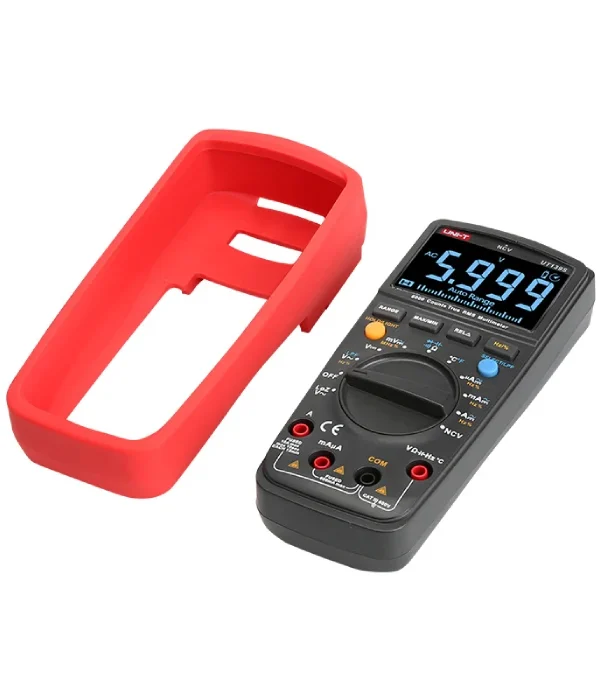

Uni T UT139C True RMS Digital Multimeter

Uni T UT139C True RMS Digital Multimeter

Uni-T UT139C digital multimeter is a True RMS digital multimeter manufactured by Uni-Trend Technology (UNI-T). This multimeter is designed to measure various electrical parameters in industrial and household applications.

The UT139 series is a CAT III 600V digital multimeter designed for electricians. Its NCV function can effectively check the electrical condition by measuring the EM field strength. The new UT139E/S models include special features such as LoZ (ACV) for “virtual” voltage measurement.

The Uni-T UT139C True RMS Digital Multimeter is a reliable and adaptable tool that provides a wide variety of measuring functions. It is made to give precise readings for testing the diode, resistance, capacitance, frequency, temperature, AC/DC current, and AC/DC voltage.

The Uni-T UT139C comes with features like data hold, relative measurement, and auto power-off for increased convenience. It also has a big LCD display for simple reading.

Its integrated 31-segment analog stick also provides electricians with better visual visibility of measurement results. The UT139S is built with a black EBTN display and it is a perfect gauge for working in dark environments.

To buy uni t ut139c and get more specifications about this product you can contact us through MME.Also, you can get more information about Uni t UT139C’s price and its delivery service in the same way.

Related Products

The Uni-T UT139S and Uni-T UT890C are related products in the Uni-T UT series, with the Uni T UT139C Digital Multimeter being the predecessor that serves as the common foundation for these devices. Each of these multimeters is designed to meet the needs of professionals and hobbyists working in electrical and electronic fields.

UT139C Introduction

Uni T UT 139C Features

• MAX/MIN/REL modes
• Data hold, LED backlight, auto power off
• Full range protection (600V)
• True RMS
• NCV
• Auto/manual ranges selectable

Applications of Uni T UT139C

• Frequency measurement
• NCV measurement
• Resistance measurement
• Voltage measurement

Uni-T UT 139 C Specifications

• DC voltage (V) 600V ±(0.5%+2)
• AC voltage (V) 600V ±(0.8%+3)
• DC current (A) 10A ±(0.7%+2)
• AC current (A) 10A ±(1%+3)
• Resistance (Ω) 60MΩ ±(0.8%+2)
• Capacitance (F) ±(4%+5)
• Frequency (Hz) ±(0.1%+4)
• Temperature (°C) ±(1%+3)
• Temperature (°F) ±(1.5%+5)

Features

• Display count 6000
• Auto range/Manual range /True RMS √
• Bandwidth (Hz) 45Hz~1kHz
• NCV/Continuity buzzer √
• Duty cycle √
• Diode Around 3V

General

• Power 1.5V battery (R6) x 2
• Display 58mm x 36mm
• Product color Red and grey
• Product net weight UT139A/B/C: 354g; UT139S: 345g
• Product size 170mm x 80mm x 48mm
• Standard accessories UT139A/B: Batteries, test leads;
• UT139C/S: Batteries, test leads, temperature probe
• Standard individual packing Gift box, English manual
• Standard quantity per carton 20pcs
• Standard carton measurement 450mm x 330mm x 340mm
• Standard carton gross weight 12.2kg
• Optional accessory UT139C: Current sensor AC/DC 40A
