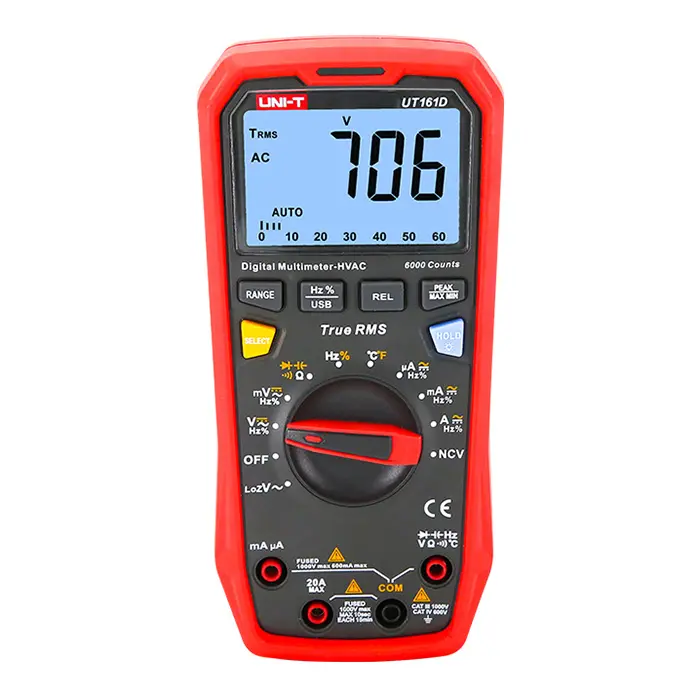

UNI-T UT161D 1000V True RMS Digital Multimeter

Brand: Uni-T

SKU: 61132

The UNI-T UT161D 1000V True RMS Digital Multimeter is a feature-packed instrument that offers advanced functionality and precise measurements. Its high-resolution display, true RMS capability, and user-friendly design make it a valuable tool for professionals in various fields. To learn more about the UNI-T UT161D and to purchase this multimeter, visit the mme.ae website.

Datasheet PDF

Safe Buy
Fast Delivery
Original Guarantee
Online Payment

Call for price

Ask on WhatsApp

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

Request a rental quote in 3 quick steps.

Step 1 of 3 — Contact

First name

Last name

No login needed — guests can submit. We email your quote to this address.

Repair & calibration request — 2 steps.

Step 1 of 2 — Contact

First name

Last name

Phone

Company

Address

ZIP / Postal code

No login needed — guests can submit a repair request.

Description

Overview

The UNI-T UT161D is a professional 6000-count True RMS digital multimeter rated to 1000V with USB connectivity and optional Bluetooth/app support. It measures DC/AC voltage and current up to 20A, resistance, capacitance, frequency, duty cycle and temperature, and adds LoZ ACV, peak hold and a 31-segment analog bar graph for demanding electrical work.

Key Features

True RMS 6000-count display with 31-segment analog bar
DC/AC voltage up to 1000V and current up to 20A
Resistance, capacitance, frequency, duty cycle and temperature
LoZ ACV, peak hold and USB data connectivity
Optional Bluetooth/app support and gold-plated test leads

Applications

Professional and industrial electrical servicing
Motor drives and non-linear load measurements
HVAC and temperature diagnostics
Data-logging and connected measurement work

What’s in the Box

UT161D digital multimeter
Gold-plated test leads
USB cable
Temperature probe
Battery, cloth bag and English manual

Why buy from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Uni-T test and measurement equipment in the UAE. We offer genuine products, competitive pricing, fast local delivery across Dubai, Abu Dhabi and the wider UAE, and knowledgeable after-sales support. Download the datasheet

Specifications

PARAMETER	SPECIFICATION
DC Voltage	Up to 1000V, ±(0.5%+3)
AC Current	Up to 20A, ±(1.2%+5)
DC Current	Up to 20A, ±(1%+2)
Resistance	Up to 60MΩ, ±(1%+2)
Capacitance	Up to 60mF, ±(3%+5)
Frequency	Up to 10MHz, ±(0.1%+4)
Duty Cycle	0.1% ~ 99.9%, ±(2%+5)
Temperature	-40°C ~ 1000°C, ±(1%+3)
Display Count	6000
True RMS / Bandwidth	Yes, 40Hz ~ 1kHz
LoZ ACV / Peak Hold	Yes
Analog Bar	31 segments
Connectivity	USB (optional Bluetooth/app)
Net Weight	350g
Dimensions	190mm × 90mm × 50mm
