Uni-T UT33D Plus Palm Size Multimeter
Short Description:
A multimeter the size of a palm is a portable instrument used to measure electrical quantities like voltage, current, resistance, and more. Uni-Trend Technology (Uni-T), a respected name in test and measurement equipment, is the manufacturer of the Uni-T UT33D Plus model.
Product purchase
Original price was: AED 78.AED 60Current price is: AED 60. (excl.VAT)
20
People watching this product now!
Terms of sending goods ›

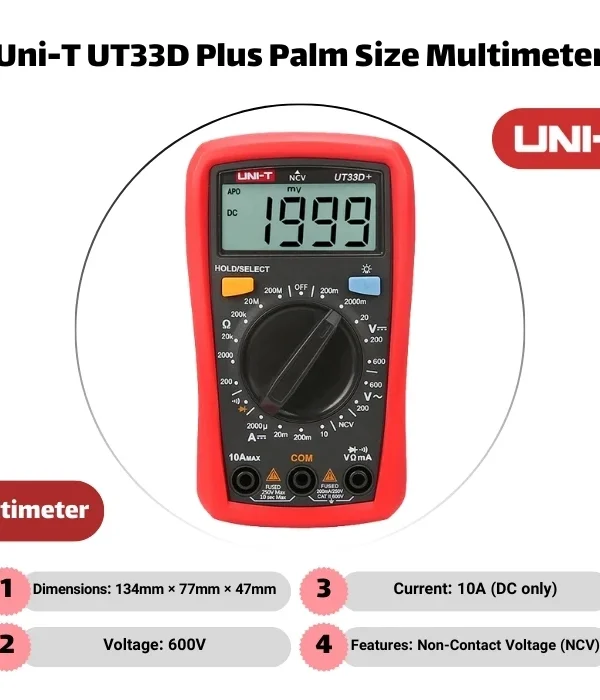

Uni-T UT33D Plus Palm Size Multimeter
The performance requirements for entry-level digital multimeters are redefined by the next-generation UT33+ series. These goods can endure drops of up to two meters thanks to our inventive industrial design. An improved user experience is provided by the redesigned LCD display arrangement. Users can operate safely in a CAT II 600V environment thanks to this series.
A multimeter the size of a palm is a portable instrument used to measure electrical quantities like voltage, current, resistance, and more. Uni-Trend Technology (Uni-T), a respected name in test and measurement equipment, is the manufacturer of the Uni-T UT33D Plus model.
The UT33D Plus is unique among the multimeters offered by Uni-T. It is an improved version of the Uni-T UT33A+ and UT33B Plus that it replaced.
Although the UT33A+ and Uni-T UT33B+ multimeters are likewise trustworthy, the UT33D Plus has more features and advancements. The UT33D+ Multimeter price is very cost-effective compared to its functionality.
To buy Uni-T Multimeter UT33D+ Palm Size, you can get in touch with our experts. They will assist you in the buying process and provide you with all the necessary information. Additionally, you can make an informed decision by comparing Uni-T products with other items available on our website.
Uni-T UT33D Plus Features
- Clear LCD display

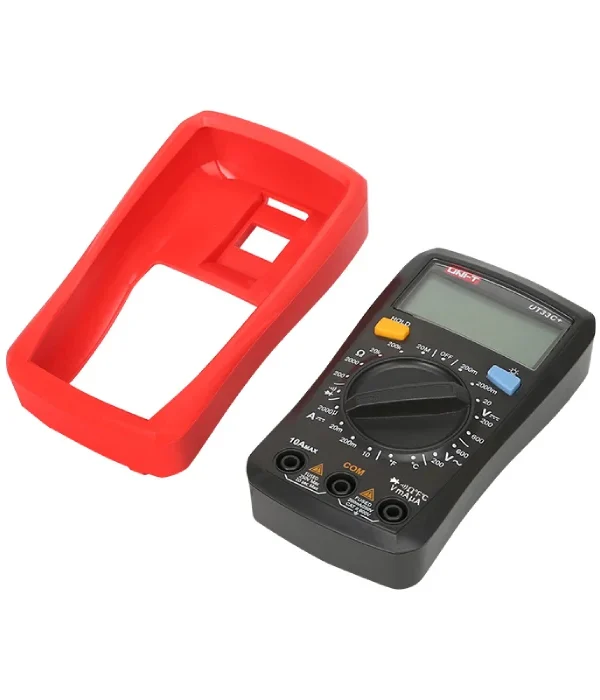

- Comfortable protective cover, with test lead hanging groove
- 2 meters drop test, precision protection
- Loud buzzer sound; Ergonomic design
Uni-T UT33D+ Specifications
| Specifications | Range | UT33D+ |
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) |
| AC voltage (V) | 200V/600V | ±(1.2%+3) |
| DC current (A) | 2000μA/20mA/200mA/10A | ±(1%+2) |
| AC current (A) | 10A | no |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ//200kΩ/20MΩ/200MΩ | ±(0.8%+2) |
| Capacitance (F) | 2mF | no |
| Features | ||
| Display count | 2000 | |
| Auto power off/Auto backlight off | √ | |
| Diode test/Continuity buzzer | √ | |
| 2m drop test/ Test probe holder | √ | |
| Range selection | Manual | |
| NCV | √ | |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 2 | |
| Display | 66mm x 51mm | |
| Product Color | Red and grey | |
| Product net weight | 206g (batteries included) | |
| Product size | 134mm x 77mm x 47mm | |
| Standard accessories | Batteries, test leads, K-type thermocouple (UT33C+) | |
| AC voltage range/resolution/accuracy | , |
|---|---|
| DC voltage range/resolution/Accuracy | , , , , |
| DC current range/resolution/Accuracy |
10A/±(1.0%rdg+2dgt) ,2000μA/±(1.0rdg%＋2dgt) ,200mA/±(1.0rdg%＋2dgt) ,20mA/±(1.0rdg%＋2dgt) |
| Resistance Range/resolution/Accuracy |
200kΩ/±(0.8rdg%＋2dgt) ,200MΩ/±(0.8%rdg+2dgt) ,200Ω/±(0.8rdg%＋2dgt) ,20kΩ/±(0.8rdg%＋2dgt) ,20MΩ/±(0.8rdg%＋2dgt) ,2kΩ/±(0.8rdg%＋2dgt) |
| Dimensions |
134mm x 77mm x 47mm |
| Weight |
206g |
| Power |
1.5V battery (R03) x 2 |
| Accessories |
Batteries ,test leads |
| Auto range |
No |
| Automatic shutdown |
√ |
| Continuity test |
√ |
| Diode test |
√ |
| NCV |
√ |
| Display-count |
2000 count |
Datasheet
