DEEPSEA 8920 Control Module Load Share and Synchronising

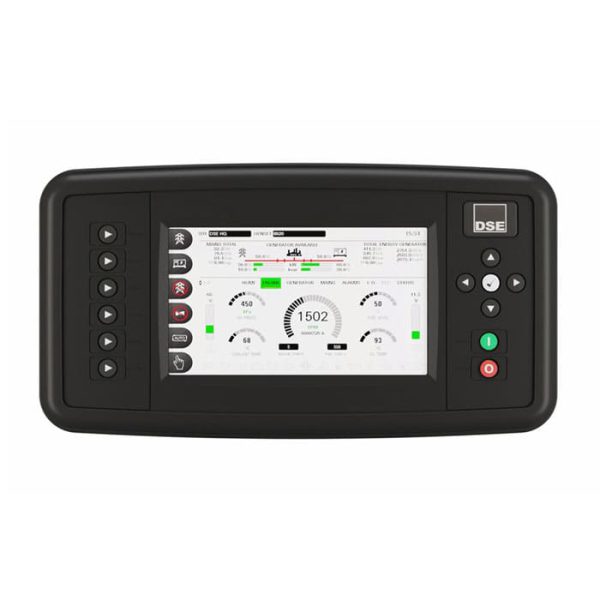

DEEPSEA 8920 Control Module 7 Colour Load Share and Synchronising

The DSE8920.7 color load sharing and synchronization control module have been designed to run single generators in parallel with the main supply. This module provides additional flexibility as it is configurable to act as a DSE8910 automatic starter load-sharing control module for parallel pairing up to 32 generators to multiple main supplies.

DEEPSEA 8920 Control Module 7 Colour Load Share and Synchronising Specifications:

• MAXIMUM PANEL THICKNESS:8 mm
• OFFSET VOLTAGE:0 V to 10 V DC, Fully Isolated
• OUTPUT A & B:15 A DC at supply voltage
• FREQUENCY RANGE:10,000 Hz (max)
• MAXIMUM OPERATING CURRENT:1.2 A at 12 V, 0.6 A at 24 V
• GAIN VOLTAGE:0 V to 10 V DC
• MINIMUM LOAD IMPEDANCE: 500 Ω
• FREQUENCY RANGE: 10,000 Hz (max)
• CHARGE FAIL/EXCITATION RANGE: 0 V to 35 V
• DIGITAL INPUTS A TO L: Negative Switching
• OUTPUTS A & B (FUEL & START): 15 A DC at supply voltage
• OUTPUTS C & D: 8 A AC at 250 V AC (volt-free)
• AUXILIARY OUTPUTS E TO L: 2 A DC at supply voltage
