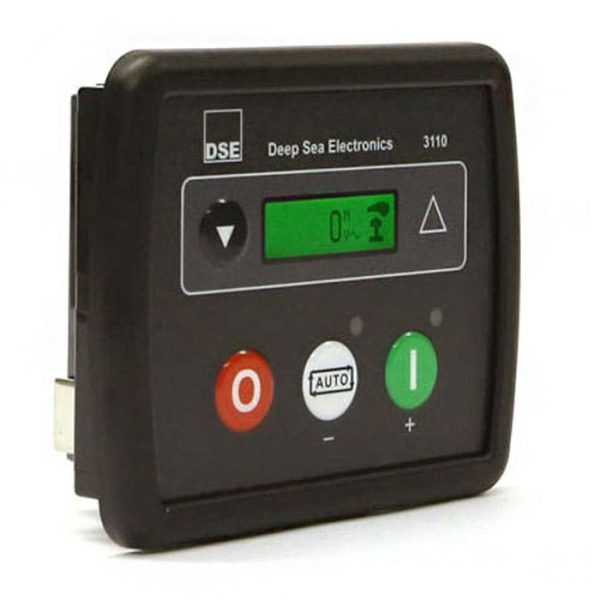

DEPPSEA DSE3110 Manual And Auto Start Control Module
1 Comments
Control module enabling manual and auto start for generator sets. Simplifies panel integration and quick setup, delivering reliable start/stop control for standby or prime power applications.
Terms of sending goods ›
Order Via phone number
In stockDelivers in 2-3 business days.
Description
Buy DEPPSEA DSE3110 Manual And Auto Start Control Module
The DSE3110 is an outstanding compact control module that provides a comprehensive range of features for single-set applications. The controller can be used in manual or auto start mode.Buy this product from M.M.ELECTRONICS with best price.Be in touch with us via Email.
DEPPSEA DSE3110 Manual And Auto Start Control Module Specifications:
- OVERALL SIZE:98 mm x 79 mm x 40 mm (3.9” x 3.1” x 1.6”)
- PANEL CUTOUT SIZE:80 mm x 68 mm (3.1 ” x 2.7″)
- MAXIMUM PANEL THICKNESS:8.0 mm (0.3”)
- WEIGHT :0.16kg
- PRODUCT VARIANTS:3110-01 – Manual & Auto Start Control Module (Mpu)
- OUTPUT A (FUEL): 2 A DC at supply voltage
- OUTPUT B (START): 2 A DC at supply voltage
- AUXILIARY OUTPUTS C & D: 2 A DC at supply voltage
- CONTINUOUS VOLTAGE RATING: 8 V to 35 V Continuous
- CRANKING DROPOUTS: Able to survive 0 V for 50 mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. This is achieved without the need for internal batteries
