EXTECH 380395 Professional High Voltage Digital Insulation Tester
EXTECH 380395 High Voltage Digital Insulation Tester
EXTECH 380395 High Voltage Digital Insulation Tester
Click to enlarge
    EXTECH 380395 Professional High Voltage Digital Insulation Tester
    EXTECH 380395 High Voltage Digital Insulation Tester
    EXTECH 380395 High Voltage Digital Insulation Tester

    EXTECH 380395 High Voltage Digital Insulation Tester

    Compare
    4 Comments

    EXTECH 380395  key features:

    • Test Voltages of 500V, 1000V, 2500V, and 5000V
    • Measure Insulation Resistance to 60GOhm
    • Large 6000 count display with bargraph and backlight
    • Polarization Index measurement (PI)
    • Dielectric Absorption Ratio measurement (DAR)

    Terms of sending goods ›
    • In-stock items are delivered within 2 business days.
    • We are not Supporting COD Payments Terms Outside UAE
    • For out-of-stock items, delivery may take 2 to 4 business weeks.
    SKU: 8023 Categories: ,
    Brand:Extech

    Show Price on WhatsApp

    Order Via phone number
    In stockDelivers in 2-3 business days.
    Description

    EXTECH 380395  Insulation Tester

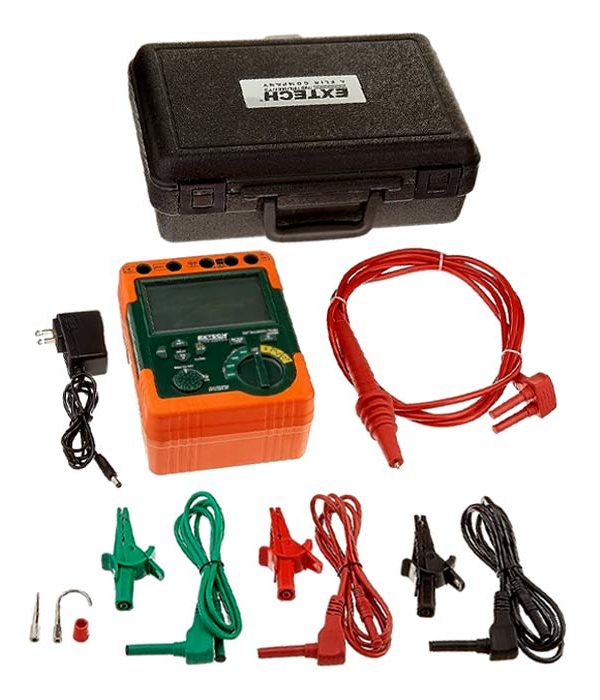

    The Extech 380395 measure Insulation Resistance to 60GΩ with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak, and Relative functions, and a 1 to 15-minute timer function for IR measurements. Extech 380395 comes with test leads, eight C batteries, a 120 V AC adaptor, a heavy-duty carrying case, and a user manual.

    EXTECH High-voltage Insulation Tester 380395  key features

    • Test Voltages of 500V, 1000V, 2500V, and 5000V
    • Measure Insulation Resistance to 60GOhm
    • Large 6000 count display with bargraph and backlight
    • Polarization Index measurement (PI)
    • Dielectric Absorption Ratio measurement (DAR)
    • Powered by standard batteries
    Datasheet

    Datasheet

    Mme-pdfs-image

    specifications

    specifications

    Specification Details
    Accuracy ±2.5% of reading
    AC/DC Voltage 0 to 600V
    Voltage Accuracy ±1% of reading
    Resistance 0 to 600Ω
    Resistance Accuracy ±1.5% of reading
    Continuity 50Ω
    Power Eight type C batteries
    Test Voltage 500V / 1000V / 2500V / 5000V
    Insulation Resistance 0 to 6MΩ, 0 to 60MΩ, 0 to 600MΩ, 0 to 6GΩ, 0 to 60GΩ
    Power Eight type C batteries
    Dimensions 7.8 x 5.8 x 3.4″ (198 x 148 x 86mm)
    Weight 3.2lbs (1438g)
    Advantages – Autoranging, Auto Power off, and battery check
    – Complete with test leads, 8 x C batteries, 120V AC adaptor, and heavy-duty carrying case
    – AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak, and Relative functions
