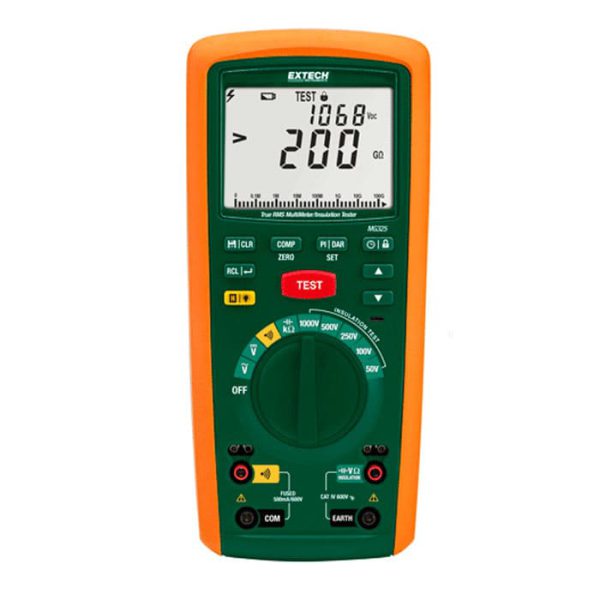

EXTECH MG325 CAT IV Insulation Tester True RMS
2 Comments
EXTECH MG325 CAT IV Insulation Tester True RMS key features
- Test Voltages of 250V, 500V, and 1000V
- Measure Insulation Resistance to 5.5GOhm (autoranging)
- AC Voltage measurement from 30 to 600V
- Polarization Index measurement (PI)
- Dielectric Absorption Ratio measurement (DAR)
- 10MOhm internal resistance test
Terms of sending goods ›
This product is discontinued.
Order Via phone number
In stockDelivers in 2-3 business days.
Description
EXTECH MG325 CAT IV Insulation Tester True RMS
Combines a 200GΩ/1000V high-range Insulation Tester with a full-featured True RMS MultiMeter in a single, compact instrument. CAT IV safety rating ensures the highest level of protection.
EXTECH MG325 CAT IV Insulation Tester True RMS specifications
- Insulation Resistance 50MΩ, 100MΩ, 200MΩ,500MΩ, 2000MΩ, 1GΩ, 10GΩ, 20GΩ, 50GΩ, 100GΩ, 200GΩ 0.001MΩ ±(3%+3d)
- Insulation Test Voltages 50V, 100V, 250V, 500V, 1000V _ 0 to 20%
- AC/DC Voltage 600V 0.01V AC: ±(1.5%+5d)/ DC: ±(2%+3d)
- Leakage Current 2000µA 10µA ±(10%+3d)
- Resistance 10MΩ 0.01kΩ ±(3%+3d)
- Low Resistance 100Ω 0.01Ω ±(1.5%+5d)
- Capacitance 500µF 0.1nF ±(5%+5d)
- Frequency 1kHZ 0.1HZ ±(0.1%+3d)
- Continuity (audible) Yes
- Dimensions/ Weight 8.9 x 4.1 x 2.3″ (225 x 103 x 59mm)/ 1.5lbs (0.7kg)
Datasheet
Datasheet
