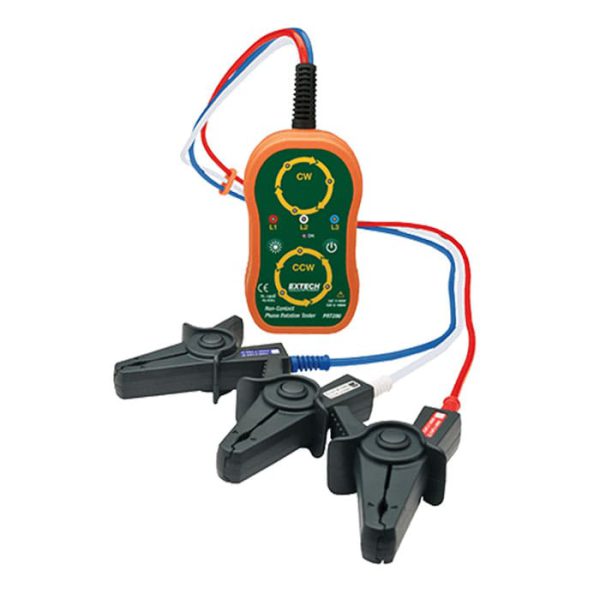

EXTECH PRT200 Non Contact Phase Sequence Tester

EXTECH PRT200 Non Contact Phase Sequence Tester Key Features :

  • 75 to 1000VAC input voltage with 45 to 65Hz frequency range
  • LEDs indicate phase orientation  and whether each phase is live
  • Beeper sounds intermittently when correct phase is detected and continuously if phase is reversed
  • Durable housing with back cover magnet for attachment to an AC distribution panel for easy measurement
  • Adjustable Hi/Lo LED brightness switch for making measurements in dimly lit areas or sunlight
  • Fully insulated alligator clips with wide jaws
  • Low battery warning
  • Complete with three built-in 30″ test leads with large color-coded alligator clips, four AA batteries, and pouch case

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 839 (excl.VAT)

20People watching this product now!

EXTECH PRT200 Non Contact Phase Sequence Tester

The PRT200 is a non-contact phase sequence tester that can test up to 1000 VAC and provides visual and audio feedback. The extech phase rotation meter offers a frequency range of 45 to 65Hz, an adjustable Hi Lo LED brightness switch for measuring in dimly lit locations or in direct sunshine, a low battery indicator, and fully insulated alligator clips with wide jaws.

The extech non contact phase rotation meter is CAT IV 600 Volt safe and comes with a one-year guarantee, three built-in 30-inch test leads with huge color-coded alligator clips, four AA batteries, and a bag case.M.M.ELECTRONICS has the best pricing and good quality for this product. Please contact us by email!

EXTECH PRT200 Specifications:

  • Measurement Principle: Static induction
  • Input Voltage: 75 to 1000VAC
  • Frequency Range:45 to 65Hz
  • Max conductor diameter: 33mm
  • Probe length:1.5m
  • Auto-Off:5 min. without sequence detection
  • Low Battery Warning: Power LED flashes
  • Batteries: 4 x 1.5V AA
  • Current consumption:15mA
  • Operating Temperature & Humidity:-10°C to 50°C (14°F to 122°F) Max
  • Storage Temperature & Humidity:-20°C to 60° (-4°F to 140°F) Max
