FLIR DM286 industrial imaging multimeter
Click to enlarge

    FLIR DM286 Industrial Imaging Multimeter with IGM & MSX (160×120)

    Compare
    (No Reviews)

    The FLIR DM286 combines a True-RMS DMM with a built-in thermal imager for faster, safer troubleshooting. It uses IGM™ to visually guide you to hotspots and MSX® to overlay visual detail on thermal images. Capture up to 30,000 images, store logs, and even record thermal/visual video, then sync via Bluetooth METERLiNK® for analysis and reporting. Rated CAT IV 600 V / CAT III 1000 V with 2 m drop and IP40.

    Terms of sending goods ›
    • In-stock items are delivered within 2 business days.
    • We are not Supporting COD Payments Terms Outside UAE
    • For out-of-stock items, delivery may take 2 to 4 business weeks.
    SKU: 106445 Category:

    Show Price on WhatsApp

    Order Via phone number
    In stockDelivers in 2-3 business days.
    Description

    FLIR DM286 Industrial Thermal Imaging Multimeter with IGM

    Designed for electrical system inspections, troubleshooting, and detecting thermal issues, the FLIR DM286 is a powerful industrial imaging multimeter that enhances safety and efficiency in electrical diagnostics. Whether you’re maintaining electrical equipment or identifying hot spots in panels, this advanced tool provides high precision, reliability, and ease of use.

    Equipped with IGM™ (Infrared Guided Measurement) and MSX® (Multi-Spectral Dynamic Imaging), the DM286 allows technicians to detect potential hazards before making contact, making it an ideal choice for electrical inspectors and maintenance professionals.

    FLIR DM286 Key Features and Benefits

    Built for industrial inspections, maintenance, and commissioning, DM286 delivers thermal context + electrical accuracy in one tool, reducing guesswork and repeat visits.

    • IGM™ technology enables non-contact detection of electrical faults
    • MSX® imaging overlays edge and outline details onto thermal images for enhanced clarity
    • Integrated LED worklight for better visibility in dark or low-light environments
    • Dual rechargeable lithium-polymer battery packs for extended work hours
    • 2-meter drop test rating ensures durability in demanding environments
    • Capture and store up to 30,000 images and 100 log files
    • Record thermal and visual video clips for detailed analysis
    • Stream live data from the DM286 to your mobile device via FLIR METERLiNK®
    • Easily capture, analyze, and share radiometric images and videos using the METERLiNK® app

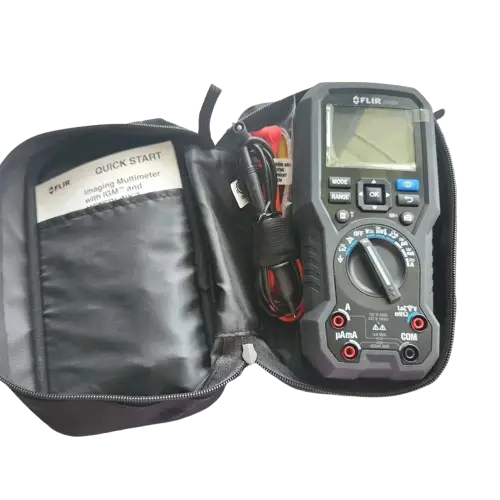

    What’s in the FLIR DM286 Box

    Contents of the FLIR DM286 box

    Here’s what’s included with the FLIR DM286:

    • DM286 Industrial Imaging Multimeter
    • CAT IV 600 V test leads (1 set)
    • CAT IV 600 V alligator clip adapters (1 set)
    • K-type thermocouple (≈ −30 °C to 260 °C)
    • Soft-sided carrying case
    • Quick Start Guide
    • Warranty card
    Datasheet

    Datasheet

    Mme-pdfs-image

    SPECIFICATIONS

    SPECIFICATIONS

    FLIR DM286 Specifications

    Category Specifications
    IR Resolution 160 × 120 (19,200 pixels)
    Display Counts 6000
    AC/DC Voltage 1000 V AC RMS ±(1.0％＋3), 1000 V DC ±(0.09%+3)
    AC/DC Amps 10.00 A AC RMS ±(1.5%+3), 10.00 A DC ±(1.0%+3)
    Connectivity Bluetooth BLE
    Color Palettes Iron, rainbow, arctic, white hot, and black hot
    Field of view – visual 71° × 56°
    Focus Fixed
    Frame Rate 9 Hz
    Image Modes Thermal MSX, Thermal Camera only, Digital Camera only
    IR Sensitivity 150 mK (0.15°C)
    Spectral Response 8–14 µm
    Thermal Imaging Detector FLIR Lepton® microbolometer
    Visual Focus and FOV Fixed focus, 71° × 56° FOV
    Visual Resolution 2 MP (1600 × 1200 pixels)
    AC/DC LoZ V 1000 V AC RMS or 1000 V DC ±(1.3%+4)
    AC/DC mVolt AC 600.0 mV ±(1.0％＋3), DC 600.0 mV±(0.2%+3)
    Calibration Cycle Once per year, recommended
    Capacitance 10.00 mF ±(4.0%+5)
    Continuity check threshold 10–100Ω
    Diode Test 1.500 V ± 0.9%
    Frequency Counter 100.00 kHz ±(0.1%+5)
    Measuring Rate 3 samples per second
    Resistance 6.000 MΩ ±(0.9%+5), 60.00 MΩ ±(3.0%+5)
    Temperature Accuracy ±3°C (5.4°F) or ± 3% of the reading (whichever is greater) for temperatures > 25°C
    Temperature Range –5°C to 300°C (23°F to 572°F)
    Storage 40,000 readings per memory set
    Video Recording 50 minutes max duration
    Display 2.8″
    Battery Life Approx. 6.5 hours in IGM mode, 10 hours in Multimeter mode
    Non-Contact Voltage Detector Yes
    Dimensions 20 cm × 9.6 cm × 5.6 cm
    Weight 569 g (1.25 lb) without battery
    Worklights x1 LED
    Certifications ETL, FCC, CE, RCM, UKCA, FDA, EN60825, EN50689
    Drop Test 2 m (6.6 ft)
    IP Rating IP40
