Description

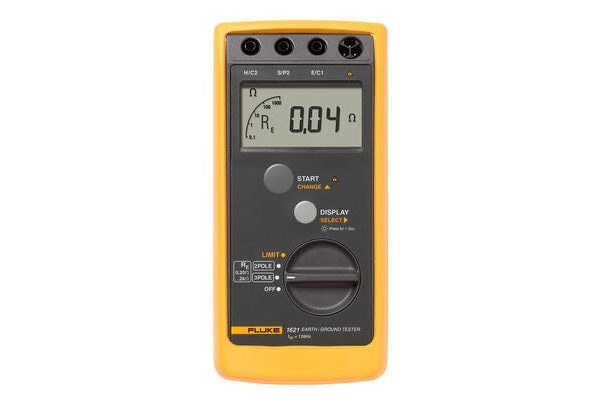

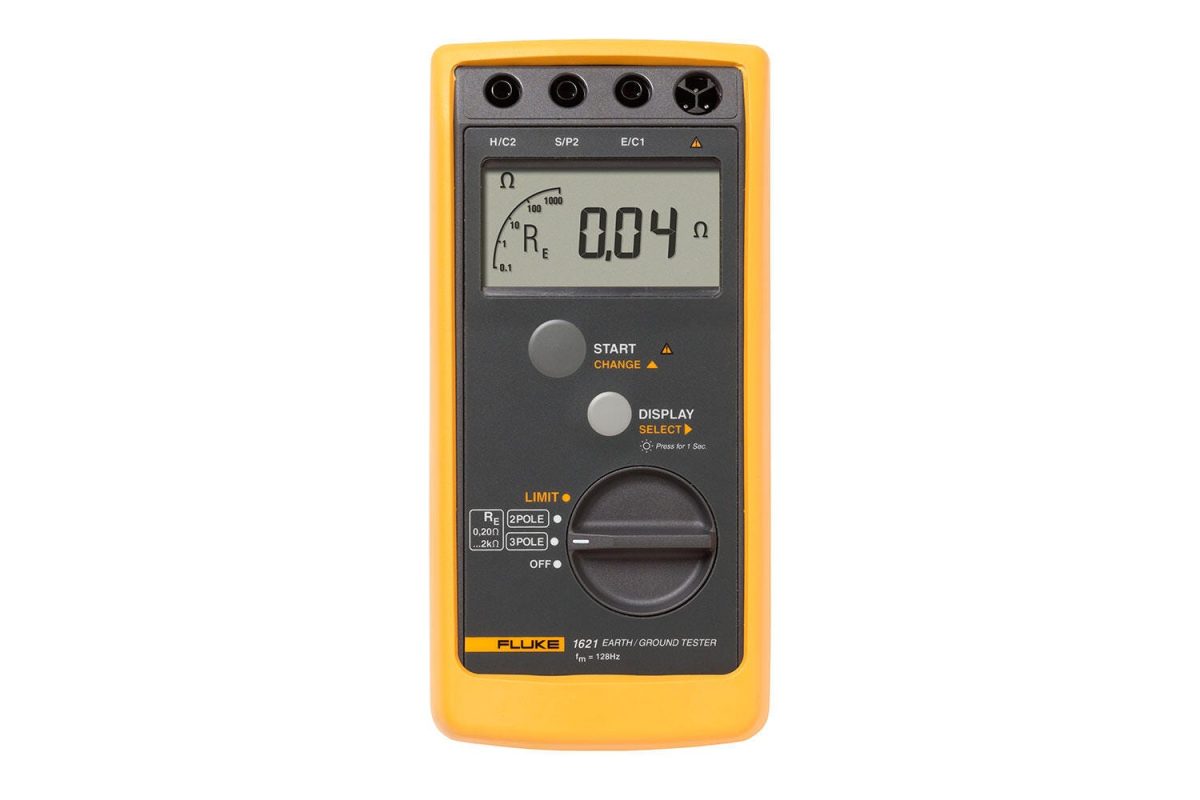

The Fluke 1621 GEO Earth Ground Tester is a reliable and accurate tool for measuring earth ground resistance and AC resistance of a conductor. With its high measuring rate of 2 measurements/second, you can quickly and efficiently test your equipment.

Whether you’re working on a construction site or in a laboratory, the Fluke 1621 is the perfect tool for the job.

Fluke 1621 Key Features

The Fluke 1621 GEO Earth Ground Tester features a range of key specifications, including:

Measuring functions: 3-pole earth ground resistance, 2-pole AC resistance of a conductor, Interference voltage
Intrinsic error: Refers to the reference temperature range and is guaranteed for one year
Measuring rate: 2 measurements/second
Battery: One 9 volt alkaline (LR61)
Dimensions: 113 x 54 x 216 mm
Weight: 850 g

Who Needs the Fluke 1621?

The Fluke 1621 GEO Earth Ground Tester is designed for technicians and engineers who need a reliable and accurate tool for measuring earth ground resistance and AC resistance of a conductor.

Whether you’re working on a construction site, in a laboratory, or in a manufacturing facility, the Fluke 1621 is the perfect tool for the job.

Fluke 1621 Applications

Construction sites: Use the Fluke 1621 to measure earth ground resistance and AC resistance of conductors on construction sites.
Laboratories: Use the Fluke 1621 to measure earth ground resistance and AC resistance of conductors in laboratory settings.
Manufacturing facilities: Use the Fluke 1621 to measure earth ground resistance and AC resistance of conductors in manufacturing facilities.
Electrical installations: Use the Fluke 1621 to measure earth ground resistance and AC resistance of conductors in electrical installations.
Power plants: Use the Fluke 1621 to measure earth ground resistance and AC resistance of conductors in power plants.

Why Buy Fluke 1621 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 1621 GEO Earth Ground Tester at a competitive price, with fast shipping and excellent customer service.

Our team of experts is always available to answer any questions you may have about the Fluke 1621, and we offer a range of accessories and spare parts to keep your tool in top condition.

Fluke 1621 Specifications

General Specifications
Measuring functions	3-pole earth ground resistance, 2-pole ac resistance of a conductor, Interference voltage
Intrinsic error	Refers to the reference temperature range and is guaranteed for one year
Measuring rate	2 measurements/second
Battery¹	One 9 volt alkaline (LR61)
Battery condition	LO-BAT is displayed if voltage drops below 6.5 V
Voltages	Between jacks H/C2 and E/C1	250 Veff maximum (effective voltage)
Voltages	Between jacks S/P2 and E/C1	250 Veff maximum
Climatic class	VDE/VDI 3540 RZ (conforming to KWG as per DIN 40040, 4/87)
Temperature performance²	Working	-10°C to +50°C (+14°F to +122°F)
	Operating	0°C to +35°C (+32°F to +95°F)
	Storage	-20°C to +60°C (+68°F to +140°F)
	Reference	+23°C ±2°C (+73°F ±4°F)
Temperature coefficient	±0.1% of range per degree Kelvin
Safety	IEC/EN 61010-1, 600 V CAT II, pollution degree 2
Dimensions	113 x 54 x 216 mm (4.5 x 2.1 x 8.5 in), including holster
Weight	850 g (1.9 lb), including standard accessories, volume approximately 600 cm³
Electrical Specifications
Maximum deviations	E₁ Influence factor	Position
	E₁ Deviation influence	0%
	E₂ Influence factor	Supply voltage
	E₂ Deviation influence	0%
	E₃ Influence factor	Temperature E₃
	E₃ Deviation influence	2.3%
	E₄ Influence factor	Serial interference voltage (20 V)
	E₄ Deviation influence	0.6%
	E₅ Influence factor	Probe- and auxiliary probe resistance
	E₅ Deviation influence	10%
Test voltage	3.7 kV
Protection type	IP 40; IEC/EN 60529
Electromagnetic compatibility	Emission	IEC/EN 61326 Class B
Electromagnetic compatibility	Immunity	IEC/EN 61326 Annex C
R_E Resistance measurement	Measuring method	Current-voltage measurement with improved cross-talk attenuation, no compensation of measuring lead resistance, with probe (3-pole) or without probe (2-pole), as per IEC/EN 61557–5
	Open circuit voltage	23 to 24 V AC
	Short circuit current	> 50 mA AC
	Measuring frequency	128 Hz
	Maximum permissible overload	250 Veff
Measuring time	8 seconds (average from when START is pressed)
Limit input	Tester retains set value even if instrument is turned off (assuming battery power supply is sufficient)
Automatic changeover of resolution	R_H	< 7 kΩ
	Resolution	0.01 Ω
	R_H	< 50 kΩ
	Resolution	0.1 Ω
	R_H	> 50 kΩ
	Resolution	1 Ω
Interference voltage display DC + AC	Vmax	30 Veff
	Common mode rejection	> 80 dB at 50 Hz and 60 Hz
	Ri	680 kΩ
	Measuring uncertainty	< 10% for pure AC and DC signals
Measuring Range
0.15 Ω to 20 Ω	Resolution	0.01 Ω
0.15 Ω to 20 Ω	Display range	0 to 19.99 Ω
200 Ω	Resolution	0.1 Ω
200 Ω	Display range	20 to 199.9 Ω
2 kΩ	Resolution	1 Ω
2 kΩ	Display range	200 to 1999 Ω
Intrinsic Uncertainty	±(6% of measured value + 5D)
Operating uncertainty IEC 61557³	±(18% of measured value + 5D)
1. If the tester is not going to be used, or is being stored for a long period, remove the battery and store separately from the tester to avoid damage from battery leakage. 2. The four temperature ranges for the tester exists to satisfy European Standards requirements; the instrument can be used over the full working temperature range by using the temperature coefficient to calculate accuracy at the ambient temperature of use. 3. Covers all deviations caused by influence quantities E₁–E₅. If the deviation E₄ caused by high probe or auxiliary probe resistance is higher than specified flashes. Measured values are outside of the specified operating uncertainty.
