Description

The Fluke 287 FlukeView Forms Combo Kit is a comprehensive solution for electrical measurements, featuring a range of advanced functions and high accuracy.

With its True-RMS AC voltage and current measurements, the Fluke 287 provides accurate readings even in complex waveforms.

Fluke 287 Key Features

The Fluke 287 boasts a range of key features, including:

DC volts: 0.025% basic accuracy
AC volts: 0.4% basic accuracy (True-RMS)
DC current: 0.05% basic accuracy
AC current: 0.6% basic accuracy (True-RMS)
Temperature: 1.0% basic accuracy
Resistance: 0.05% basic accuracy
Capacitance: 1.0% basic accuracy
Frequency: 0.005% basic accuracy

Who Needs the Fluke 287?

The Fluke 287 is designed for professionals who require accurate and reliable electrical measurements, including:

Electrical engineers, technicians, and maintenance personnel who need to troubleshoot and diagnose electrical systems.

Fluke 287 Applications

Use the Fluke 287 to measure electrical systems in industrial and commercial settings
Diagnose and troubleshoot electrical issues in residential and commercial buildings
Measure electrical parameters in automotive and aerospace applications
Use the Fluke 287 to test and verify electrical systems in laboratories and research facilities
Measure electrical parameters in medical and healthcare settings

Why Buy the Fluke 287 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Fluke 287 FlukeView Forms Combo Kit at competitive prices, with fast shipping and excellent customer service.

Fluke 287 Specifications

Specifications
Function
DC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.025%
AC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.4% (True-RMS)
DC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.05%
AC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.6% (True-RMS)
Temperature (excluding probe)	Range / resolution	-200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
	Basic accuracy	1.0%
Resistance	Range / resolution	500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
	Basic accuracy	0.05%
Capacitance	Range / resolution	1.000 n, 10.00 nF, 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
	Basic accuracy	1.0%
Frequency	Range / resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
	Basic accuracy	0.005%

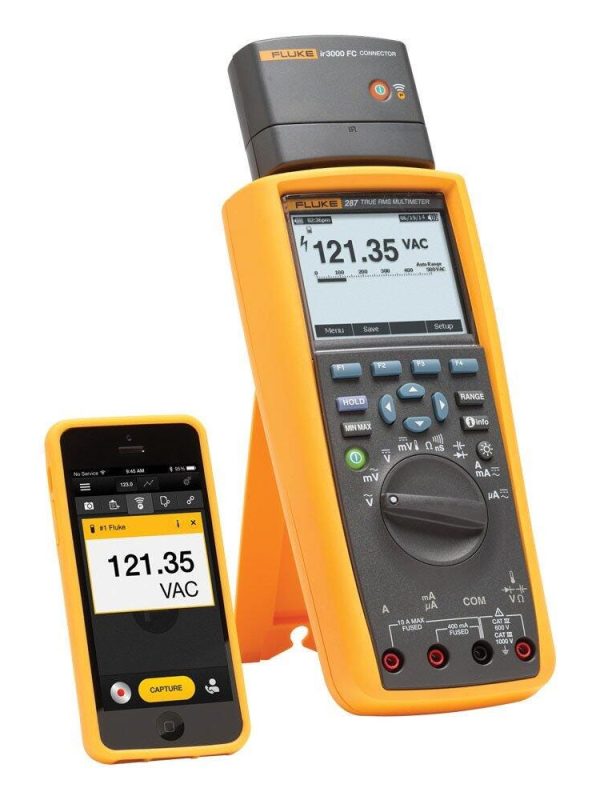

Connectivity	Optional infrared connector via Fluke ir3000 FC
General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	6 AA alkaline batteries, NEDA 15A IECLR6
Battery life	100 hours minimum, 200 hours in logging mode
Temperature	Operating	-20°C to 55°C
	Storage	-40°C to 60°C
Relative humidity	0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility	EMC EN61326-1
Vibration	Random vibration per MIL-PRF-28800F Class 2
Shock	1 meter drop per IEC/EN 61010-1 3rd Edition
Size (H x W x L)	22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
Weight	870.9 g (28 oz)
Multiple on screen displays	Yes
True-RMS AC bandwidth	100 kHz
dBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 MΩ
Conductance	50.00 nS
Continuity beeper	Yes
Battery/fuse access	Yes/Yes
Elapse time clock	Yes
Time of day clock	Yes
Min-max-avg	Yes
Peak	250 μs
Duty cycle	0.01% to 99.99%
Pulse width	0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms
Hold	Yes
Isolated optical interface	Yes
Auto/touch hold	Yes
Reading memory	Yes
Log to PC	Yes
Interval/event logging	Yes
Logging memory	Up to 10,000 readings
Wireless connectivity (optional)	Yes
