Description

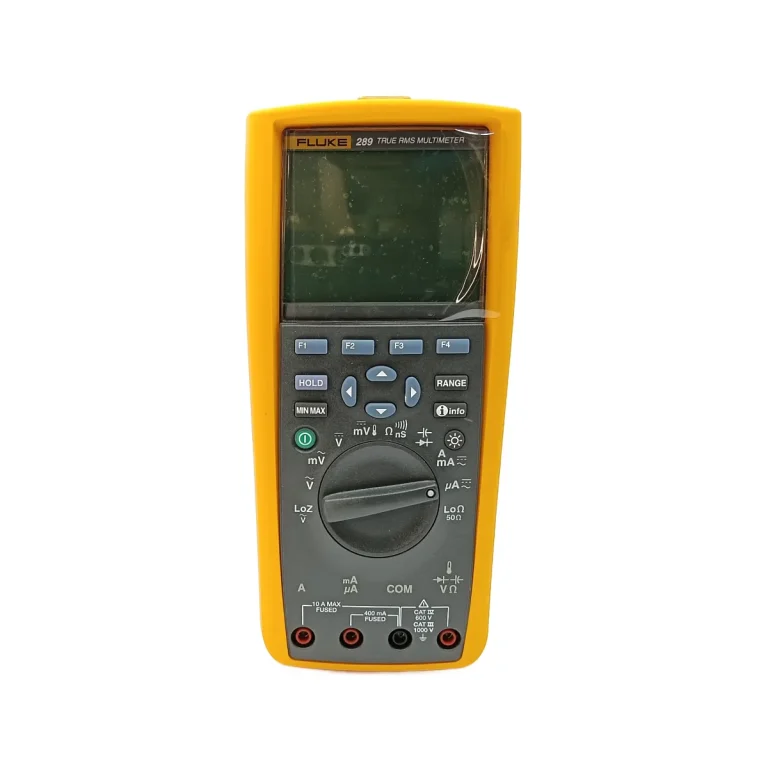

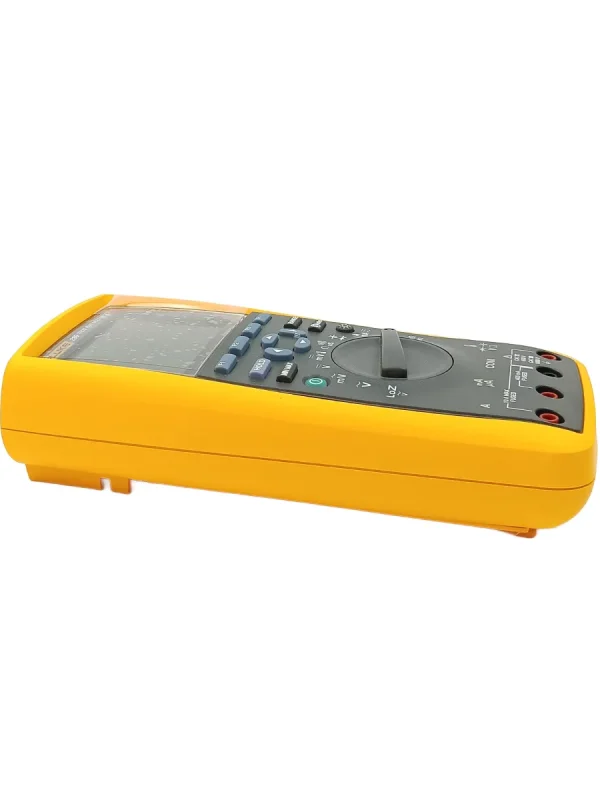

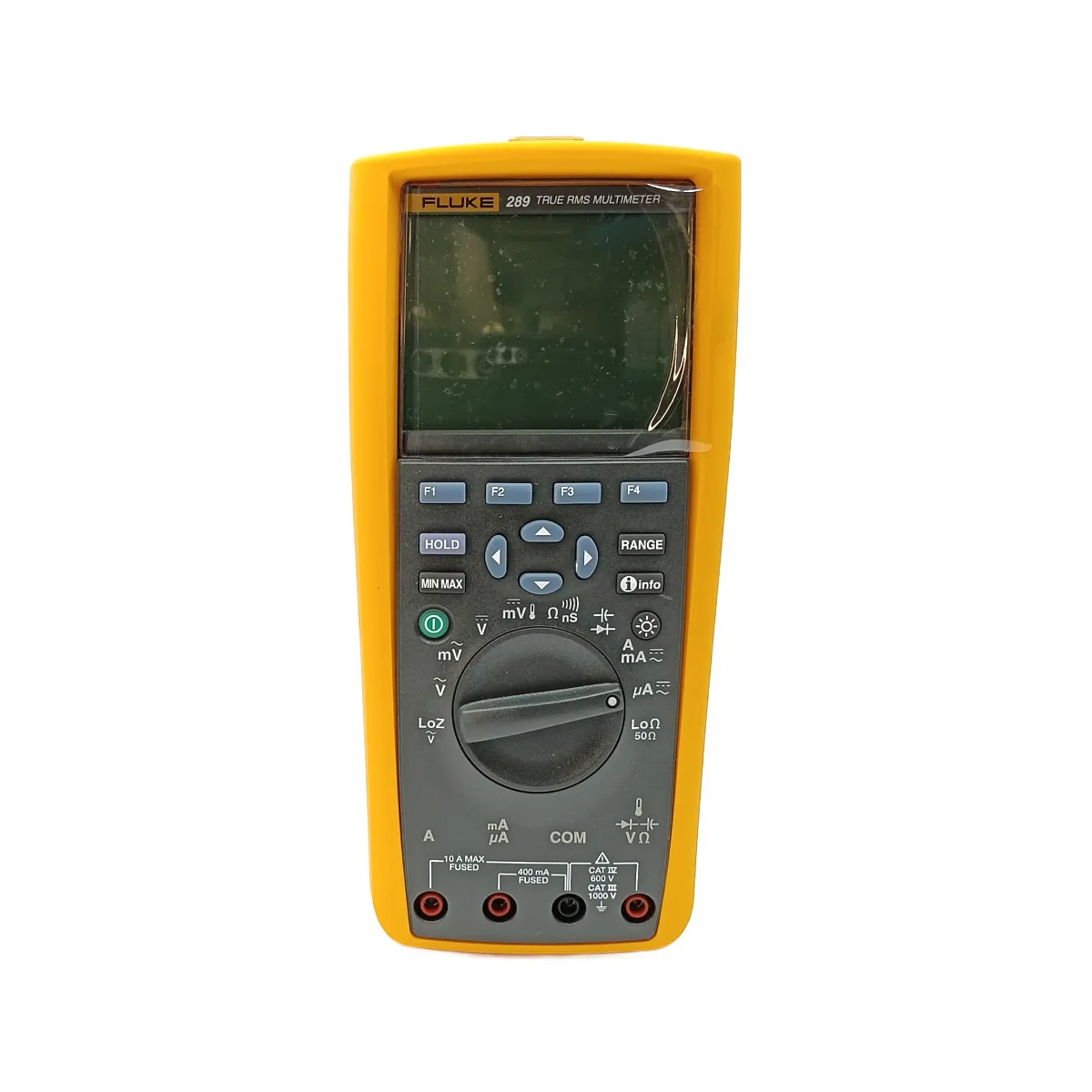

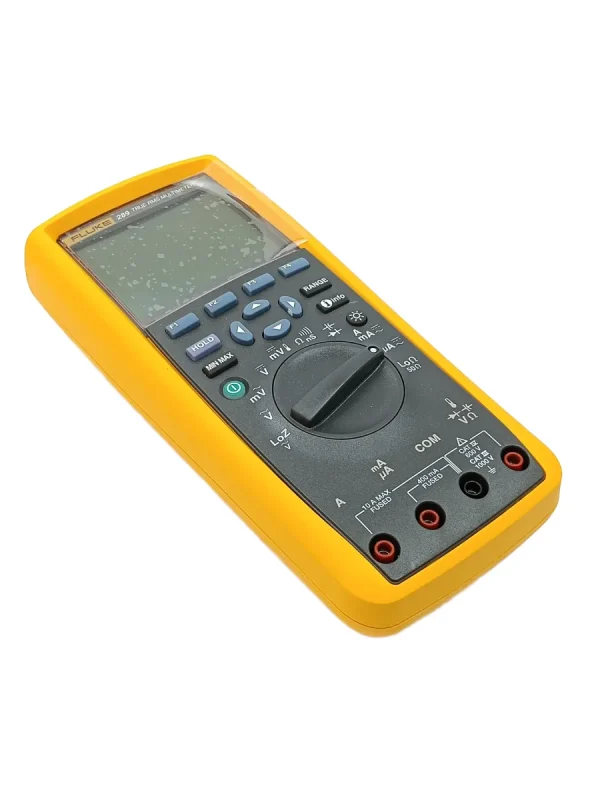

The Fluke 289 is a high-performance True-RMS data logging multimeter designed for professionals who require accurate measurements in a variety of applications.

With its advanced features and robust construction, the Fluke 289 is the perfect tool for technicians, engineers, and buyers who need a reliable and accurate multimeter.

Fluke 289 Key Features

The Fluke 289 offers a range of key features that make it an ideal choice for professionals, including True-RMS AC measurements, logging capabilities, and wireless connectivity.

True-RMS AC measurements for accurate measurements of AC voltage and current
Logging capabilities for up to 15,000 readings
Wireless connectivity option for easy data transfer
Optional infrared connector via Fluke ir3000 FC

Who Needs the Fluke 289?

The Fluke 289 is designed for professionals who require accurate measurements in a variety of applications, including electrical, electronics, and HVAC.

With its advanced features and robust construction, the Fluke 289 is the perfect tool for technicians, engineers, and buyers who need a reliable and accurate multimeter.

Fluke 289 Applications

Electrical troubleshooting and testing
Electronics design and development and testing
HVAC system testing and troubleshooting
Industrial process control and monitoring
Research and development and testing

Why Buy Fluke 289 from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke 289 True-RMS data logging multimeter at competitive prices, along with excellent customer service and support.

Whether you’re a technician, engineer, or buyer, the Fluke 289 is the perfect tool for your needs.

Fluke 289 Specifications

Specifications
Function
DC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.025%
AC volts	Range / resolution	50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V
	Basic accuracy	0.4% (True-RMS)
DC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.05%
AC current	Range / resolution	500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
	Basic accuracy	0.6% (True-RMS)
Temperature (excluding probe)	Range / resolution	-200.0°C to 1350.0°C (-328.0°F to 2462.0°F)
	Basic accuracy	1.0%
Resistance	Range / resolution	50.000 Ω, 500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
	Basic accuracy	0.05%
Capacitance	Range / resolution	1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100 mF
	Basic accuracy	1.0%
Frequency	Range / resolution	99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz
	Basic accuracy	0.005%

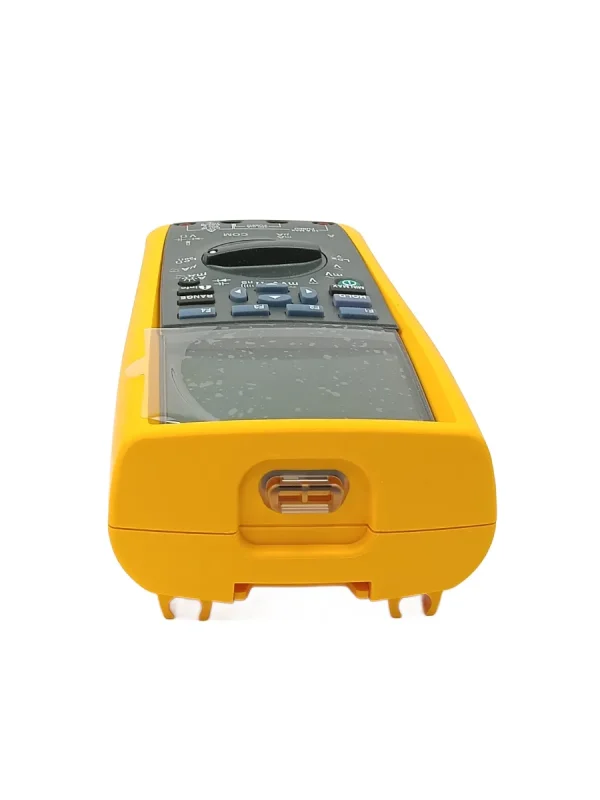

Connectivity	Optional infrared connector via Fluke ir3000 FC
General Specifications
Maximum voltage between any terminal and earth ground	1000 V

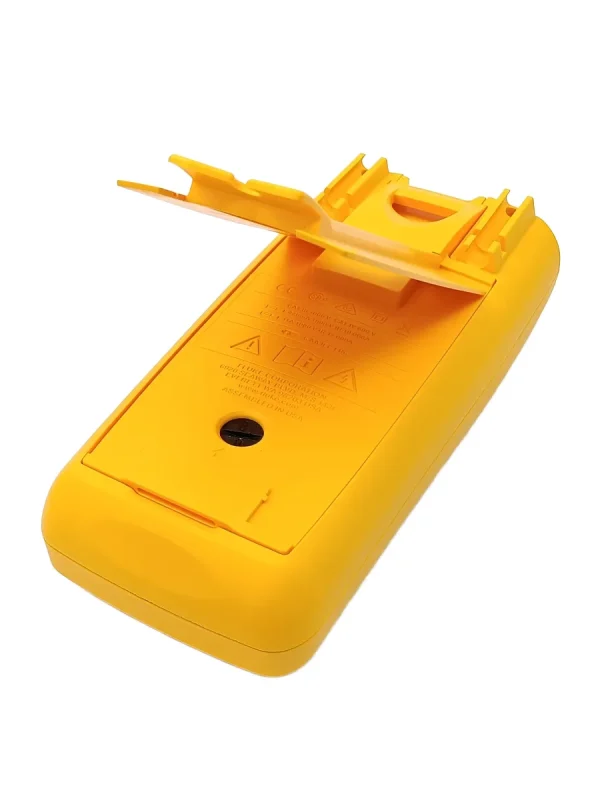

Battery type	6 AA alkaline batteries, IECLR6
Battery life	100 hours minimum, 200 hours in logging mode
Temperature	Operating	-20°C to 55°C
	Storage	-40°C to 60°C
Relative humidity	0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C)
Electromagnetic compatibility	EMC EN61326–1
Vibration	Random vibration per MIL-PRF-28800F Class 2
Shock	1 meter drop per IEC/EN 61010–1 3rd Edition
Size (H x W x L)	22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in)
Weight	870.9 g (28 oz)
Multiple on screen displays	Yes
True-RMS AC bandwidth	100 kHz
dBV/dBm	Yes
DC mV resolution	1 μV
Megohm range	Up to 500 MΩ
Conductance	50.00 nS
Continuity beeper	Yes
Battery/fuse access	Yes/Yes
Elapse time clock	Yes
Time of day clock	Yes
Min-max-avg	Yes
Duty cycle	Yes
Pulse width	Yes
Isolated optical interface	Yes
Auto/touch hold	Yes
Reading memory	Yes
Log to PC	Yes
Interval/event logging	Yes
Logging memory	Up to 15,000 readings
Wireless connectivity (optional)	Yes
