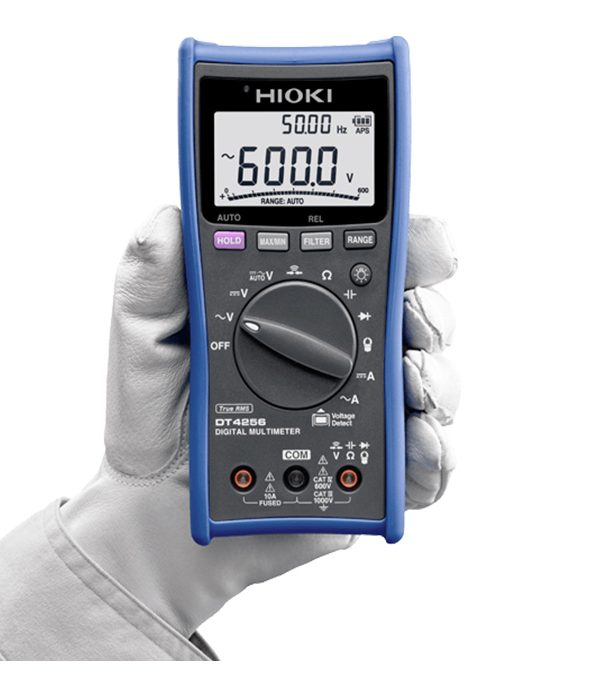

HIOKI DT4256 DIGITAL MULTIMETER

The Hioki DT4200 Digital Multimeter Series consist of a complete lineup of 9 models ranging from professional.

(1 customer review)
SKU:497

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

AED 508 (excl.VAT)

17People watching this product now!

HIOKI DT4256 DIGITAL MULTIMETER

Hioki DT4256 review

The Hioki DT4200 Digital Multimeter Series include an entire lineup of nine fashions starting from expert to business to pocket meters, turning in an awesome rapid reaction charge and protection capabilities that take electric checking out to a better level. The dt4256 hioki is a virtual multimeter designed to supply the most capability to be used in a huge variety of settings.

Multimeter safety

  • the device complies with IEC 61010 safety standards and has been thoroughly safety tested before shipment. However, the use of the instrument in a manner not described in this manual may invalidate the security features provided.
  • To make sure operators’ cap potential to apply to measure devices safely, IEC 61010 classifies the places wherein devices are used into a sequence of protection-primarily based totally dimension categories (starting from CAT II to CAT IV). Using a device that doesn’t fulfill the specified protection degree can cause an electrical accident.

How do you use a digital multimeter?

  • Connect the test leads to the COM and V terminals. Always connect the black test lead to the terminal marked “COM” for “Common”. Always insert the red test lead into the terminal marked “V” for “Voltage” since this is what you are testing. Turn the dial to the AC or DC voltage setting.
  • Turn the dial to V~ or the V with a wave sign next to it if measuring AC voltage. Turn the dial to V⎓ or the V with a horizontal line next to it to measure DC voltage. Set the voltage range to a higher voltage than expected. If you set the voltage range too low, you will not get accurate readings.
  • Look at the numbers on the dial and choose the setting that comes closest to the expected voltage of your measurement while still staying above that voltage. Listen for a beep indicating a strong connection.
  •  Once the two probes touch the ends of the cable, you should hear a beep if the cable is working properly. If you don’t hear a beep, it means there is a short in the cable.

What is the purpose of the multimeter function switch?

The rotary switch is used to switch between measurement parameters (AC voltage, DC voltage, continuity, resistance, capacitance, current, etc.) depending on the application in which the digital multimeter is used.

Similar Products
  • The Hioki 4252 is a reliable and versatile digital multimeter manufactured by Hioki, a trusted brand in electrical measurement equipment. This multimeter is designed for professional use and offers a wide range of measurement functions to meet various electrical testing needs.
  •  The Fluke 17B+ is a compact and versatile digital multimeter that offers reliable performance for a wide range of electrical measurements.

MMElectronic, as a prominent distributor, is proud to fulfill all your needs in the field of multimeters with the best global brands, offering top-notch quality and competitive prices.

Hioki dt4256 price

The Hioki-DT4256 is a digital multimeter with an LCD display. hioki 4256 can measure voltage, current, resistance, frequency, and temperature. It has a wide range of features and is one of the most advanced multimeters in its price range.

Hioki DT4256 manual

The manual is designed for a multimeter that is used to measure voltage, current, and resistance. The manual includes descriptions of all of the features as well as an explanation of how to use them. like the hioki dt4282 manual, you can download the proper manual from the user manual tab on this website.

HIOKI DT 4256 DIGITAL MULTIMETER Specifications :

  • DC / AC Voltage range: 600.0 mV to 1000 V
  • AUTO AC/DCV: Yes
  •  Resistance range: 600.0 Ω to 60.00 MΩ
  •  DC /AC Current range: 60.00 mA to 10.00 A
  •  Voltage detection(50/60 Hz) : Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
  •  Capacitance range: 1.000 μF to 10.00 mF, 5 ranges, Basic accuracy: ±1.9 % rdg. ±5 dgt.
  •  Frequency range: 99.99 Hz (5 Hz or more) to 99.99 kHz
  •  Display: Main and Sub display: 4-digit LCD, max. 6000 digits, bar graph
  •  Power supply: LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
5
1 review
1
0
0
0
0

1 review for HIOKI DT4256 DIGITAL MULTIMETER

Clear filters
  1. Emery

    An accurate multimeter

Add a review

Your email address will not be published. Required fields are marked *

You have to be logged in to be able to add photos to your review.

Brand

Hioki

DATA sheet

Data Sheet

Video

Manual

Mme-Pdfs-Image

Specifications

Electrical Specifications
AC voltage range/resolution/accuracy

DC voltage range/resolution/Accuracy

AC current range/resolution/Accuracy

DC current range/resolution/Accuracy

60.00mA to 10.00A/±(0.9%rdg.±3dgt)

Resistance Range/resolution/Accuracy

600 Ω to 60 MΩ/ ±(0.7%rdg.±3dgt)

Capacitance Range/resolution/Accuracy

1.000μF to 10.00mF/±(1.9%rdg±5dgt)

Frequency range/resolution/Accuracy

99.99 Hz(5 Hz or more)to 99.99 kHz/±(0.1%rdg±1dgt)

Mechanical and General Specifications
Power

Alkaline (LR03) battery ×4

Other features of the device

USB communication

More
Continuity test

Data Hold

Diode test

Duty cycle

MIN - MAX

True RMS

Dual display

low pass filter

Digital filter Pass-band: 100/500 Hz
