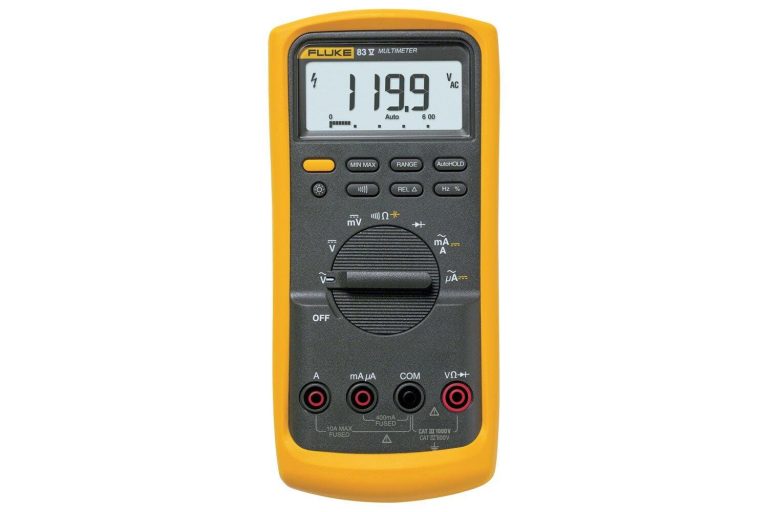

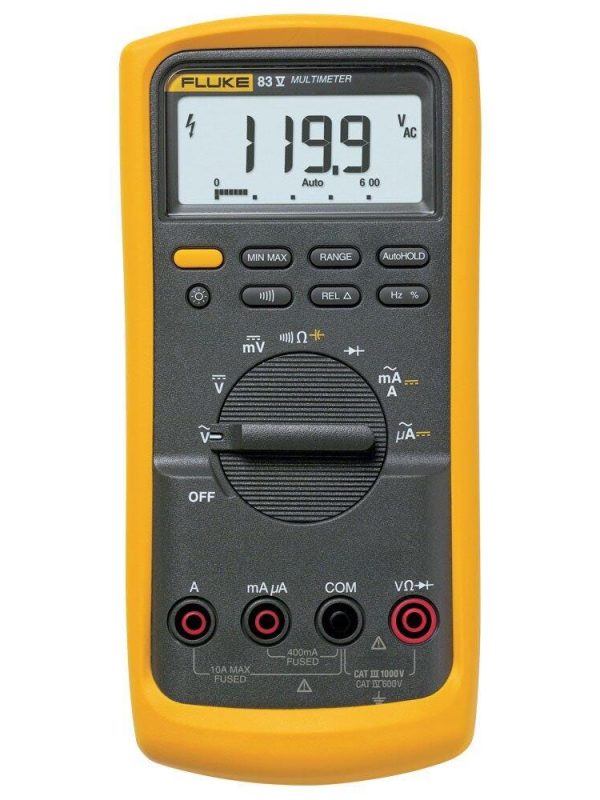

The Fluke 83V is a high-precision industrial multimeter designed for demanding applications. With its wide range of measurement functions, including voltage, current, resistance, and capacitance, this multimeter is ideal for technicians and engineers who require accurate and reliable measurements.

Featuring a robust and durable design, the Fluke 83V can withstand harsh environments and heavy use, making it a reliable choice for industrial settings.

Fluke 83V Key Features

The Fluke 83V features a range of key specifications, including:

Maximum voltage DC: 1000 V
Accuracy: ±(0.1% + 1)
Maximum resolution: 100 µV
Maximum voltage AC: 600 V
Accuracy: ±(0.5% + 2)
Maximum resolution: 0.1 mV
Maximum amps: 10 A
Amps accuracy: ±(0.4% + 2)
Maximum resolution: 0.01 mA

Who Needs the Fluke 83V?

The Fluke 83V is designed for technicians and engineers who require accurate and reliable measurements in industrial settings. Whether you’re working in manufacturing, construction, or maintenance, this multimeter is a valuable tool for ensuring the quality and safety of your work.

Fluke 83V Applications

Use in industrial settings: The Fluke 83V is ideal for use in industrial settings, including manufacturing, construction, and maintenance.
Measure voltage and current: The Fluke 83V features a range of measurement functions, including voltage and current.
Test electrical circuits: The Fluke 83V can be used to test electrical circuits and ensure they are functioning safely and efficiently.
Measure resistance and capacitance: The Fluke 83V features measurement functions for resistance and capacitance.
Use in harsh environments: The Fluke 83V is designed to withstand harsh environments and heavy use.

Why Buy Fluke 83V from mme-ae?

At Mohammad Mahdi Electronics, we offer the Fluke 83V at competitive prices, along with a range of other industrial multimeters and testing equipment. Our team of experts is available to provide support and guidance to ensure you find the right tool for your needs.

Fluke 83V Specifications

Specifications
Voltage DC	Maximum voltage	1000 V
	Accuracy	±(0.1% + 1)
	Maximum resolution	100 µV
Voltage AC	Maximum voltage	1000 V
	Accuracy	±(0.5% + 2)
	Maximum resolution	0.1 mV
Current DC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(0.4% + 2)
	Maximum resolution	0.01 mA
Current AC	Maximum amps	10 A (20 A for 30 seconds maximum)
	Amps accuracy	±(1.2% + 2)
	Maximum resolution	0.1 µA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.4% + 1)
	Maximum resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	Accuracy	±(1% + 2)
	Maximum resolution	0.01 nF
Frequency	Maximum frequency	200 kHz
	Accuracy	±(0.005% + 1)
	Maximum resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	±(0.2% per khz + 0.1%)
	Maximum resolution	0.1%
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Diode	Range	3 V
	Resolution	1 mV
	Accuracy	±(2% + 1)
Duty cycle range	Accuracy	within ±(0.2% per kHz + 0.1%)
Environmental Specifications
Operating temperature	–20°C to +55°C
Storage temperature	–40°C to +60°C
Humidity (without condensation)	0% – 90% (0°C – 35°C) 0% – 70% (35°C – 55°C)
Operating altitude	2000 m
Safety Specifications
Overvoltage category	EN 61010–1 to 1000 V CAT III, 600V CAT IV
Agency approvals	CSA, TÜV
Mechanical and General Specifications
Display	Digital	6000 counts updates 4/sec
	Analog	32 segments, updates 40/sec
	Frequency	19,999 counts, updates 3/sec at > 10 Hz
Size	201 x 98 x 52 mm (with holster)
Weight	355 g
Weigh with holster and flex–stand	624 g
Warranty	Lifetime
Battery life	Alkaline~400 hours typical, without backlight
Shock	1 Meter drop per IEC 61010–1:2001
Vibration	Per MIL–PRF–28800 for a Class 2 instrument
