Description

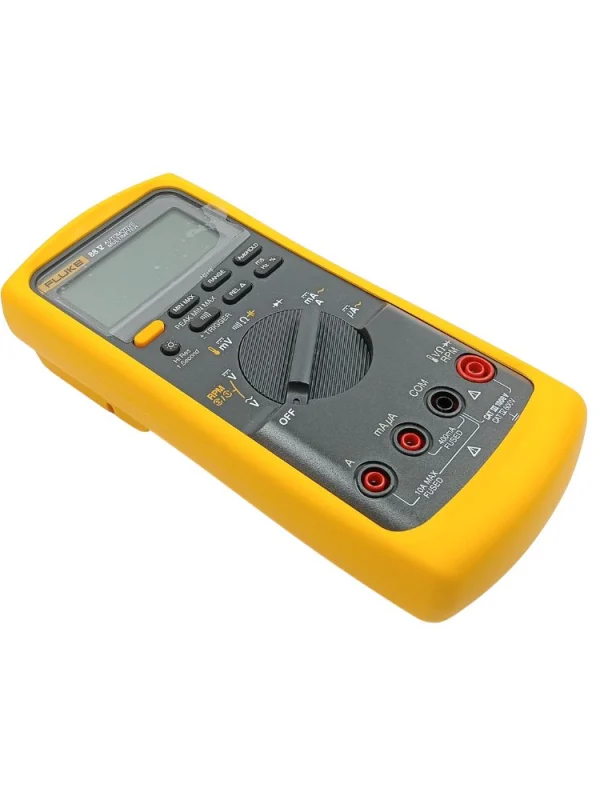

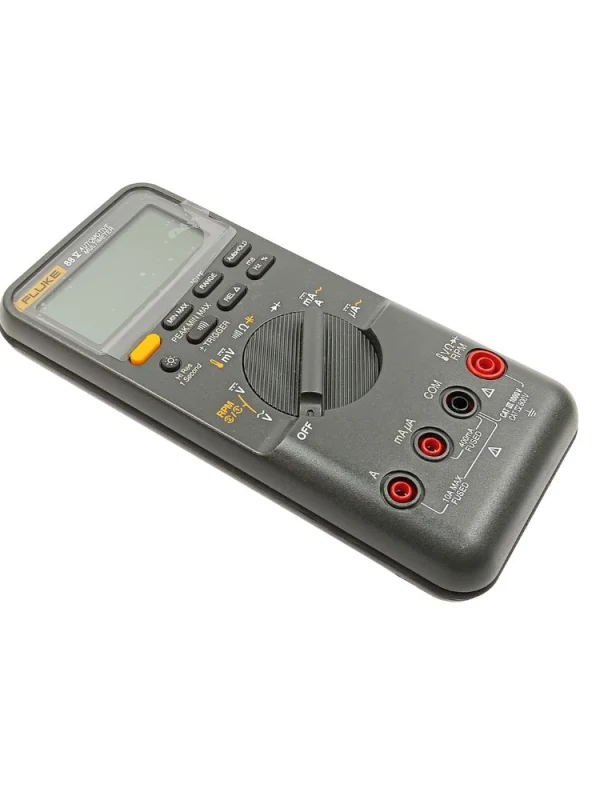

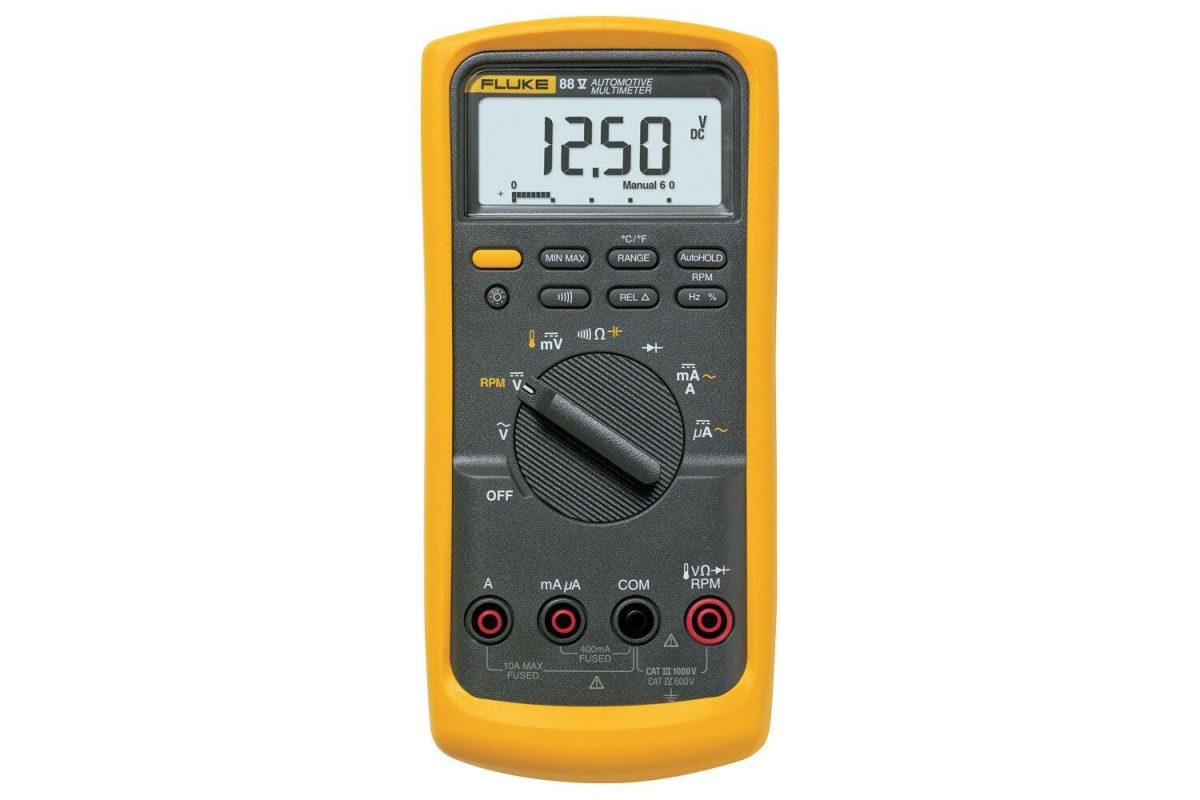

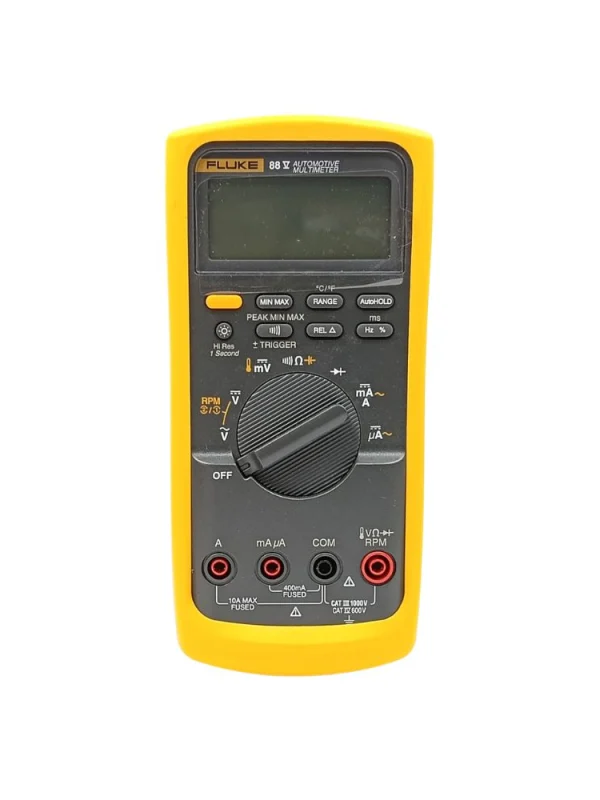

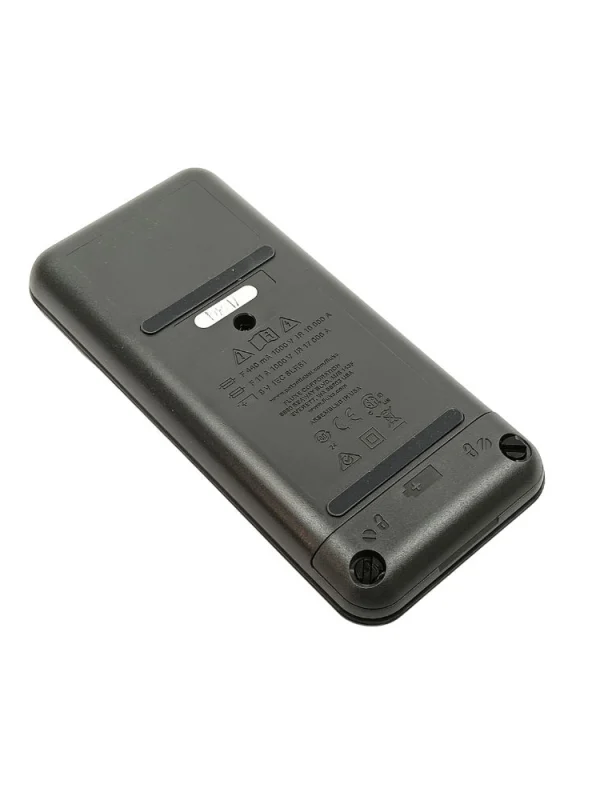

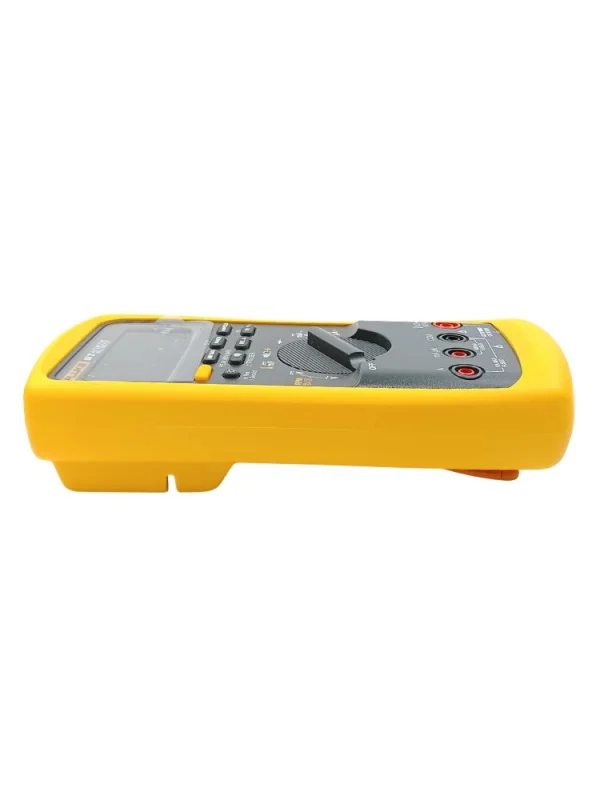

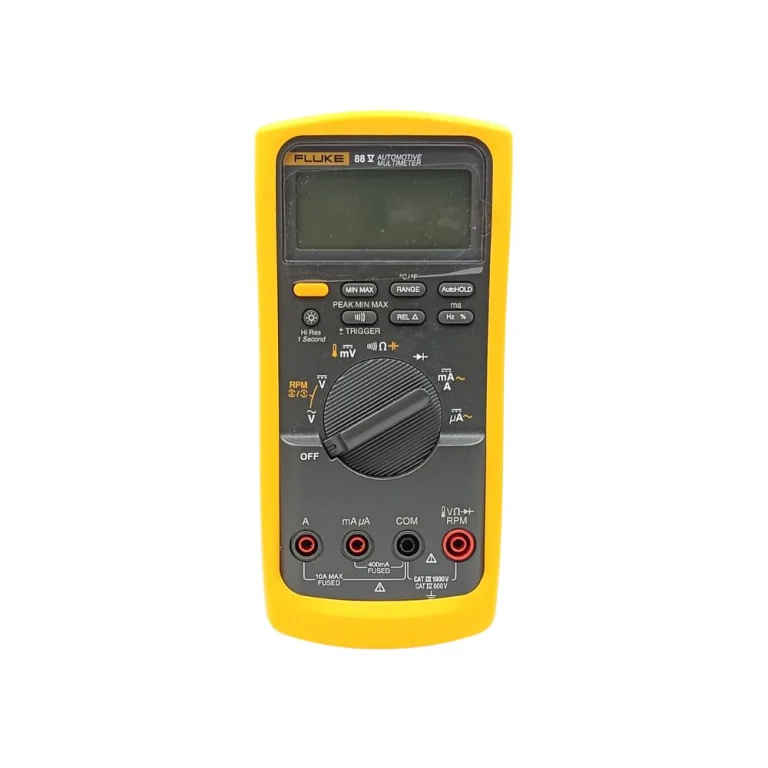

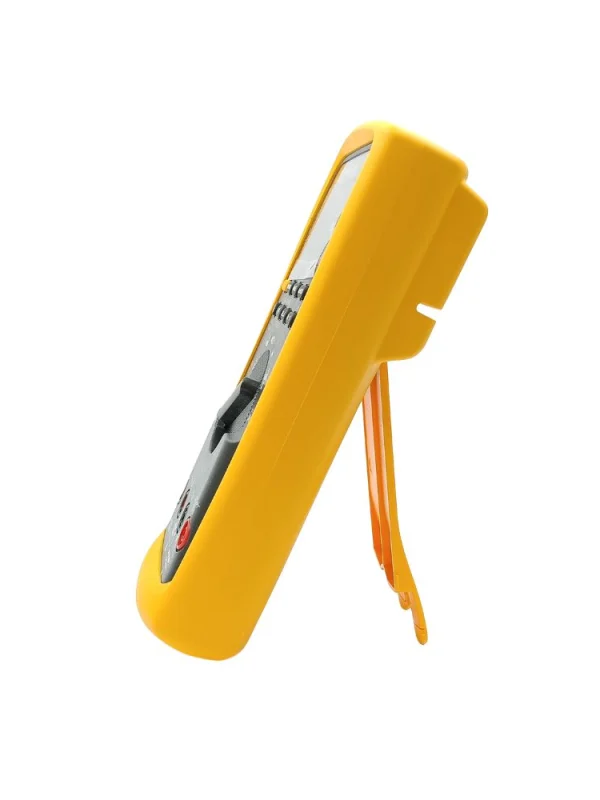

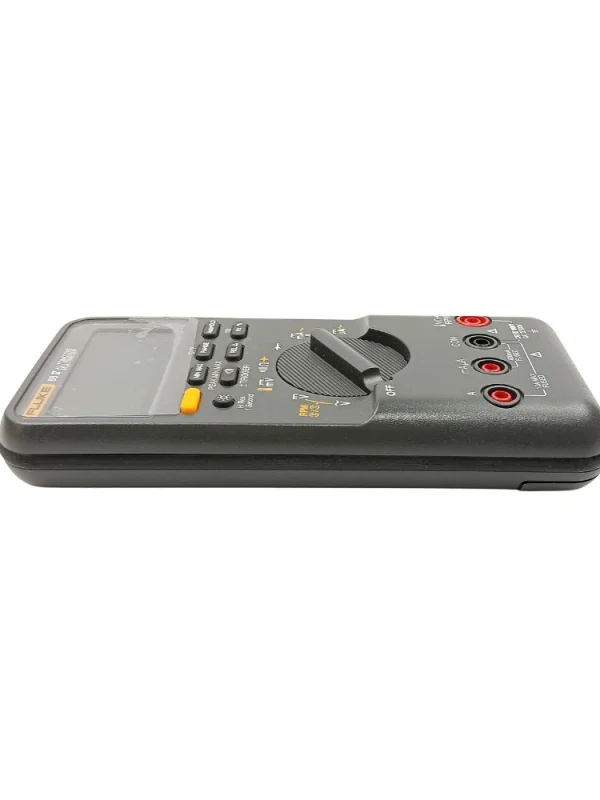

Take your automotive diagnostics to the next level with the Fluke 88V Deluxe Automotive Multimeter. This precision instrument is designed to provide accurate measurements in a variety of applications, from electrical system testing to engine performance analysis.

With its advanced features and robust design, the Fluke 88V is the perfect tool for technicians and engineers who demand the highest level of accuracy and reliability.

Fluke 88V Key Features

The Fluke 88V Deluxe Automotive Multimeter offers a range of key features that make it an essential tool for any automotive professional.

±(0.1% + 1) DCV accuracy for precise voltage measurements
±(0.5% + 2) ACV accuracy for accurate current measurements
5 kHz AC bandwidth for fast and accurate measurements
0.01 mV best resolution for precise measurements
624 g weight and 5.2 x 9.8 x 20.1 cm dimensions for easy handling and storage
Operating temperature range of -40°C – 60°C for use in a variety of environments

Who Needs the Fluke 88V?

The Fluke 88V Deluxe Automotive Multimeter is designed for technicians and engineers who work on a variety of automotive systems, from electrical systems to engine performance analysis.

With its advanced features and robust design, the Fluke 88V is the perfect tool for anyone who demands the highest level of accuracy and reliability in their work.

Fluke 88V Applications

Electrical system testing for accurate voltage and current measurements
Engine performance analysis for precise measurements of engine parameters
Diagnostic testing for accurate identification of electrical system faults
Research and development for precise measurements of automotive systems
Quality control for accurate measurements of automotive components
Automotive repair for precise measurements of electrical systems

Why Buy Fluke 88V from MME?

At MME, we offer the Fluke 88V Deluxe Automotive Multimeter at competitive prices, along with exceptional customer service and support.

Our team of experts is dedicated to helping you find the right tool for your needs, and we offer a range of services to ensure that you get the most out of your Fluke 88V.

Fluke 88V Specifications

Technical Specifications
DCV	Maximum voltage	1000 V
	Accuracy	±(0.1% + 1)
	Best resolution	0.01 mV
ACV	Maximum voltage	1000 V
	Accuracy	±(0.5% + 2)
	AC bandwidth	5 kHz
	Best resolution	0.01 mV
DC current	Maximum amps	10 A
	Amps accuracy	±(0.4 % + 2)
	Best resolution	0.001 mA
AC current	Maximum amps	10 A
	Amps accuracy	±(1.2% + 2)
	Best resolution	0.001 mA
Resistance	Maximum resistance	50 MΩ
	Accuracy	±(0.4% + 1)
	Best resolution	0.1 Ω
Capacitance	Maximum capacitance	9,999 µF
	Accuracy	±(1% + 2)
	Best resolution	0.01 nF
Frequency	Maximum frequency	200 KHz
	Accuracy	±(0.005% + 1)
	Best resolution	0.01 Hz
Duty cycle	Maximum duty cycle	99.9%
	Accuracy	within 2% per KHz + 0.1%
	Best resolution	0.1%
Temperature measurement	-200.0°C – 1090°C -328.0°F – 1994.0°F, 1.0% excluding probe
80 BK temperature probe	-40 °C – 260°C -40 °F – 500°F, 2.2°C or 2% whichever is greater
Conductance	Maximum conductance	60.00 nS
	Accuracy	±(1.0% + 10)
	Maximum resolution	0.01 nS
Operating range	Operating temperature	-20°C – 55°C
Operating range	Storage temperature	-40°C – 60°C
Physical	5.2 x 9.8x 20.1 cm (2.06 x 3.86 x 7.93 in) 624 g (22 oz.)
