Description

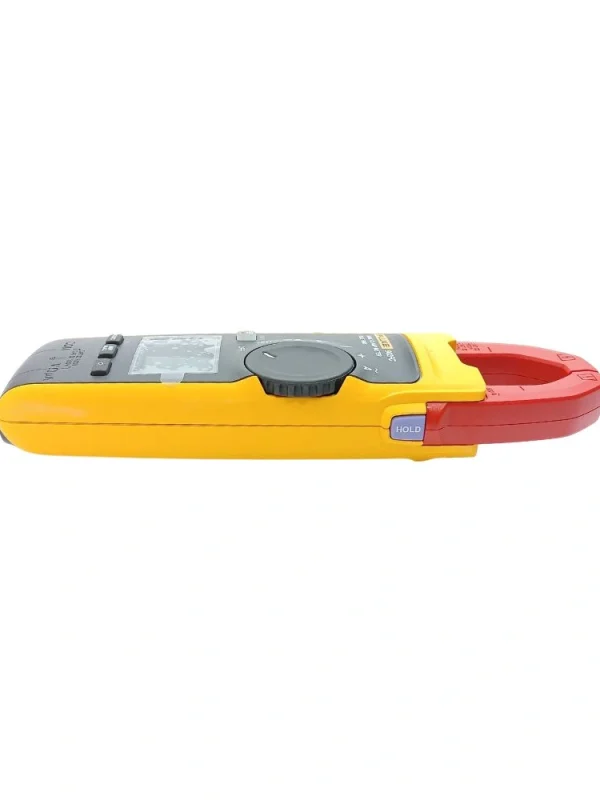

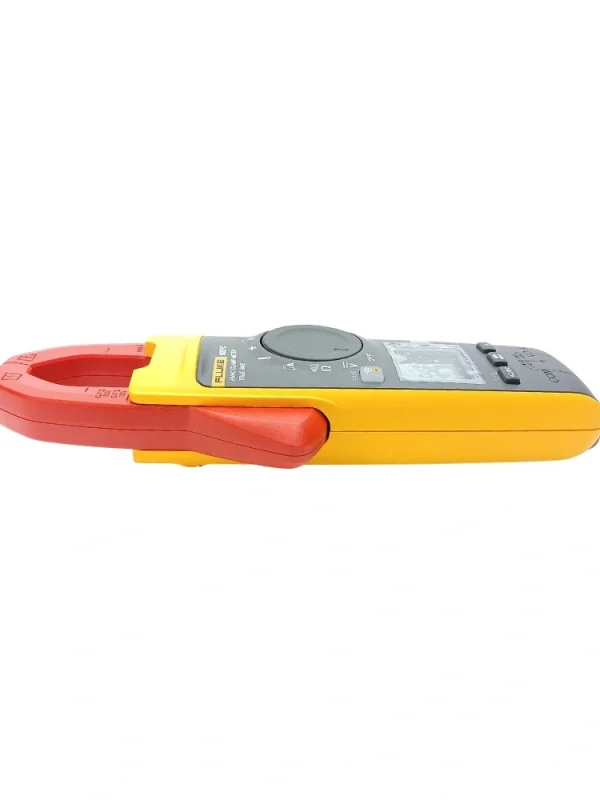

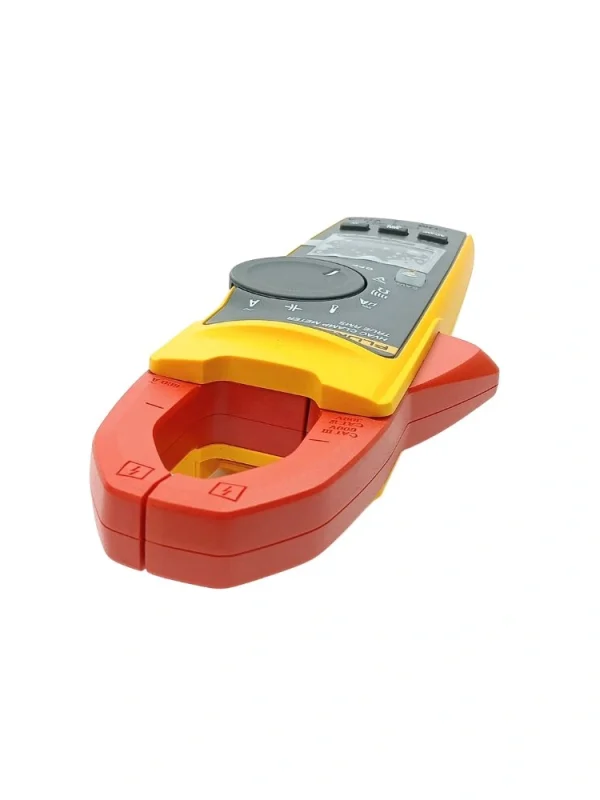

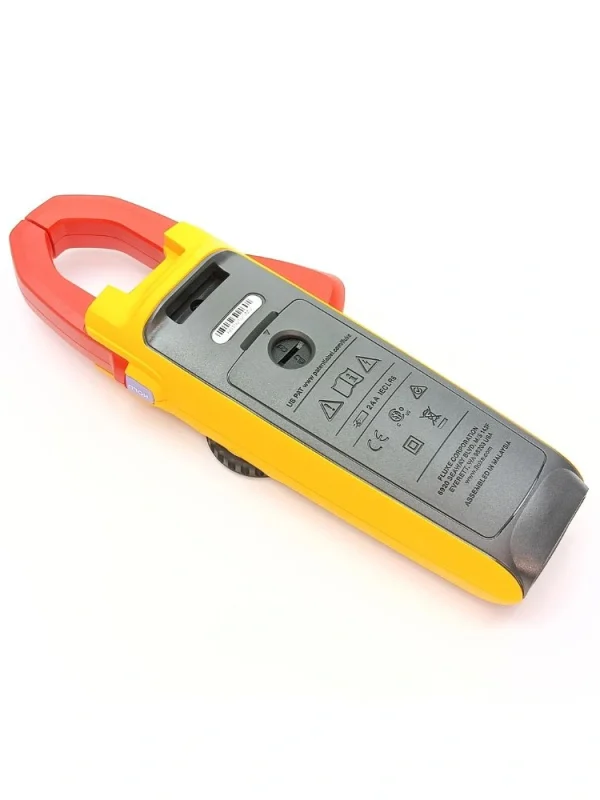

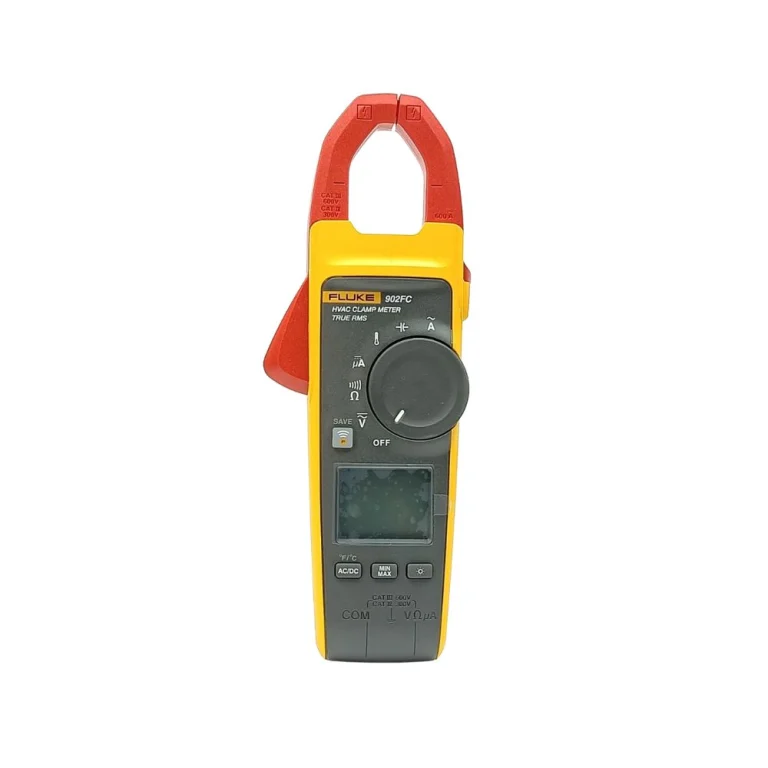

The Fluke 902 FC Clamp Meter is a high‑performance, wireless TRMS clamp meter designed for HVAC and industrial applications. With its advanced TRMS technology, the Fluke 902 FC delivers accurate measurements of AC and DC currents, voltages, resistance, capacitance, and temperature, all while maintaining a compact, lightweight form factor. Ideal for field technicians and engineers, this meter combines precision with ease of use, making it a reliable tool for any electrical testing task.

Fluke-902 FC Key Features

600 A AC current range with 0.1 A resolution
2.0 % ±5‑digit accuracy (45‑65 Hz) and 2.5 % ±5‑digit accuracy (65‑400 Hz)
600 V AC/DC range, 0.1 V resolution, 1.5 % ±5‑digit accuracy
600 kΩ resistance range, 0.1 Ω resolution, 1 % ±5‑digit accuracy
Capacitance measurement up to 1000 µF, 0.1 µF resolution, 1 % ±4‑digit accuracy
Temperature range –40 °C to 400 °C, 0.1 °C resolution, 1 % ±8‑digit accuracy
IP30 non‑operating rating, FCC ID:T68‑FBLE, 2 AA alkaline battery powered
Maximum voltage between any terminal and earth ground: 1000 V

Who Needs the Fluke-902 FC?

Electrical technicians, HVAC engineers, maintenance teams, and procurement specialists looking for a versatile, wireless clamp meter will find the Fluke 902 FC indispensable. Its comprehensive measurement capabilities—current, voltage, resistance, capacitance, and temperature—enable accurate diagnostics across a wide range of industrial and commercial environments. Whether comparing models or selecting a tool for field deployment, the Fluke 902 FC offers the precision and reliability required for critical testing tasks.

Fluke-902 FC Applications

The Fluke 902 FC is suited for HVAC system diagnostics, motor current monitoring, power quality analysis, and temperature profiling in electrical panels. Its wireless connectivity and robust build make it ideal for on‑site inspections, preventive maintenance, and troubleshooting in both residential and commercial settings.

Why Buy Fluke-902 FC from MME?

MME provides expert support and a dedicated service network for Fluke products in the UAE. With a focus on quality and customer satisfaction, MME ensures that every Fluke 902 FC is fully compliant with international standards and ready for immediate deployment.

Fluke-902 FC Specifications

Function
A ac (via Jaw)
	Resolution	0.1 A
	Accuracy	2.0% ±5 digit (45-65 Hz)
	Accuracy	2.5% ±5 digit (65-400 Hz)
	Range	600.0 A
	Crest Factor (50Hz or 60Hz)	2.5 MIN@220 A > 1.4 MIN@600 A Add 2% for CF>400 A
V ac	Crest Factor (50Hz or 60Hz)
	Resolution	0.1 V
	Accuracy	1.5% ±5 digits
	Range	600.0 V
V dc
	Resolution	0.1 V
	Accuracy	1.5% ±5 digits
	Range	600.0 V
Ohms
	Resolution	0.1/1/10
	Accuracy	1% ±5 digits
	Range	600/6000/60.00 kΩ
Capacitance
	Resolution	0.1/1 µF
	Accuracy	1% ±4 digits
	Range	100.0/1000 µF
µA
	Resolution	0.1 µA
	Accuracy	1% ±5 digits
	Range	200 µA
Contact temperature
	Resolution	0.1 C/F
	Accuracy	1% ±8 digits
	Range	-40 to 400 °C (-40 °F to 752 °F)
Continuity beeper
	Beeper volume	75 dBA nom. 15 cm. from case front
	On threshold	<=30 Ω
Mechanical and General Specifications
Maximum voltage between any terminal and earth ground	1000 V
Battery type	2 AA alkaline batteries, NEDA 15A, IEC LR6
Temperature	Operating: -10 °C to +50 °C (14 °F to +122 °F) Storage: -40 °C to +60 °C (-40 °F to +140 °F)
Operating humidity	Non condensing (< 10 °C [50 °F]), ≤90 % RH (at 10 °C to 30 °C [50 °F to 86 °F]), ≤75 % RH (at 30 °C to 40 °C (86 °F to 104 °F)), ≤45 % RH (at 40 °C to 50 °C (104 °F to 122 °F))
Altitude	Operating: 3,000 m (9,842 ft) Storage: 12,000 m (39,370 ft)
Dimensions	230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)
Weight (meter only)	419 g (15 oz)
Safety	IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
IP Rating	IEC 60529: IP30, non-operating
Radio Frequency Certification	FCC ID:T68-FBLE IC:6627A-FBLE
Electromagnetic Compatibility (EMC)	International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103.
Temperature coefficients	Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C
