Fluke TL910 Electronic Test Probes

Fluke TL910 Electronic Test Probes Overview

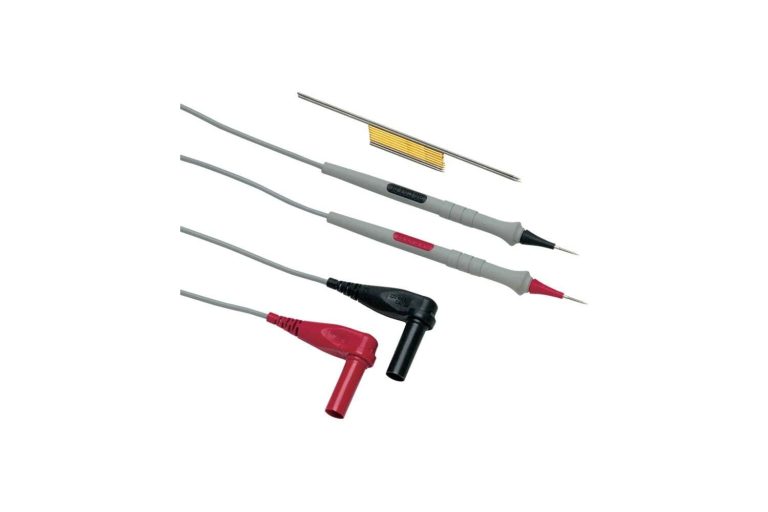

The Fluke TL910 is a pair of red and black electronic test probes with very small 1 mm tips, made to reach hard-to-reach test points on circuit boards and in tight electronics. The probe tip length is up to 100 mm and the leads are 1 m long.

The set includes 3 sets of spring-loaded gold tips and 2 sets of stainless steel tips. It is rated CAT II 1000 V, 3 A.

Key Features

• 1 mm tips for fine-pitch PCB and component test points
• 5 tip sets included: 3 spring-loaded gold, 2 stainless steel
• Up to 100 mm tip length, 1 m leads
• CAT II 1000 V, 3 A safety rating
• Replacement tips available (TP912); one-year Fluke warranty

Fluke TL910 Specifications

Compatible Fluke Instruments

Fluke lists the TL910 as compatible with the Fluke 87V, Fluke 83V, Fluke 287, Fluke 289, Fluke 787, Fluke 787B and Fluke 789, the Fluke 8846A / 8845A bench multimeters, and the Fluke 707, 707Ex, 712 and 715 calibrators.

TL910 vs Other Fluke Probes

When the tips wear, fit the Fluke TP912 replacement tips. For adjustable-length needle tips, see the Fluke TL40 retractable tip test leads. Also consider Fluke TP38 slim reach probes, Fluke TL940 mini-hook test leads or the Fluke TLK287 electronic master test lead set.

Typical Applications

• PCB repair and component-level troubleshooting
• IC pins, SMD parts and fine-pitch connectors
• Control boards in HVAC, appliances and industrial electronics
• Laboratory and bench measurements

Use leads rated CAT III or CAT IV for distribution-level work. Learn more in our guide to electrical safety standards and CAT ratings.

Need help choosing the right model or a quotation? Message our team on WhatsApp or use the quote button on this page.

Browse more electrical test accessories, digital multimeters or Fluke products.

Fluke TL910 FAQ
