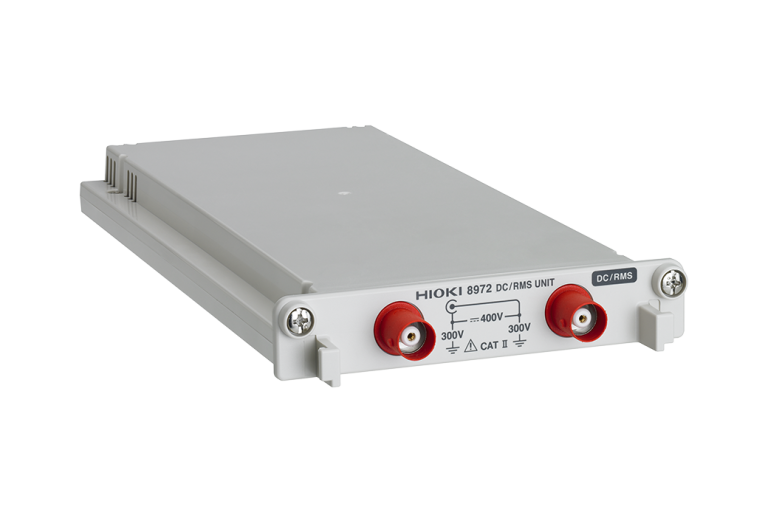

Hioki 8972 DC/RMS Unit — Electrical Measurement Made Easy with MME

At MME, we understand the importance of accurate electrical measurements in various industries. That’s why we offer the Hioki 8972 DC/RMS Unit, a high-precision instrument designed to meet the demands of modern measurement applications.

With its 2 channels and 12 measurement ranges, the Hioki 8972 is ideal for a wide range of applications, from electrical safety testing to power quality analysis. Its isolated BNC connector ensures safe and reliable measurements, while its low-pass filter options (5/50/500 Hz, 5 k/100 kHz) allow for precise filtering of unwanted signals.

Hioki 8972 Key Features

The Hioki 8972 offers a range of advanced features, including:

• Measurement functions for DC/RMS voltage measurement.
• Number of channels: 2, for voltage measurement, DC/RMS selectable.
• Input connectors: Isolated BNC connector (input impedance 1 MΩ, input capacitance 30 pF).
• Measurement range: 5 mV to 20 V/div, 12 ranges, full scale: 20 div.
• Low-pass filter: 5/50/500 Hz, 5 k/100 kHz.
• Measurement resolution: 1/100 of measurement range (using 12-bit A/D conversion).
• Sampling rate: 1 MS/s (simultaneous sampling across 2 channels).
• Measurement accuracy: ±0.5 % of full scale (with filter 5 Hz, zero position accuracy included).
• RMS measurement: RMS amplitude accuracy: ±1 % of full scale (DC, 30 Hz to 1 kHz).

Who Needs the Hioki 8972?

The Hioki 8972 is designed for professionals who require accurate and reliable electrical measurements. This includes:

Electrical engineers and technicians who need to measure voltage and current in various applications.

Power quality analysts who require precise measurements of voltage and current to ensure reliable power supply.

Researchers and scientists who need to measure electrical signals in various experiments and studies.

Hioki 8972 Applications

The Hioki 8972 has a wide range of applications, including:

• Electrical safety testing
• Power quality analysis
• Research and development
• Industrial process control

Why Buy Hioki 8972 from mme-ae?

Browse our recorders and dataloggers. Read more in our measurement guides.

At mme-ae, we offer the Hioki 8972 at competitive prices, along with excellent customer support and service. We also offer a range of accessories and spare parts for the Hioki 8972, ensuring that you have everything you need to get started with your measurements.

Whether you’re a professional engineer or a researcher, the Hioki 8972 is an essential tool for any electrical measurement application. Contact us today to learn more about the Hioki 8972 and how it can benefit your work.
