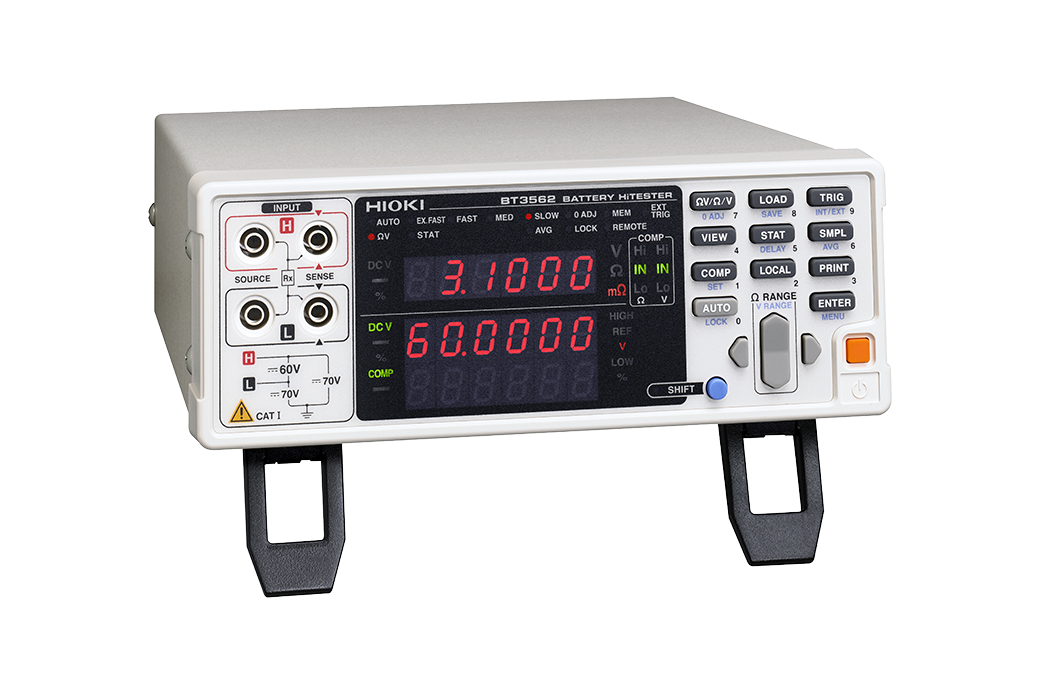

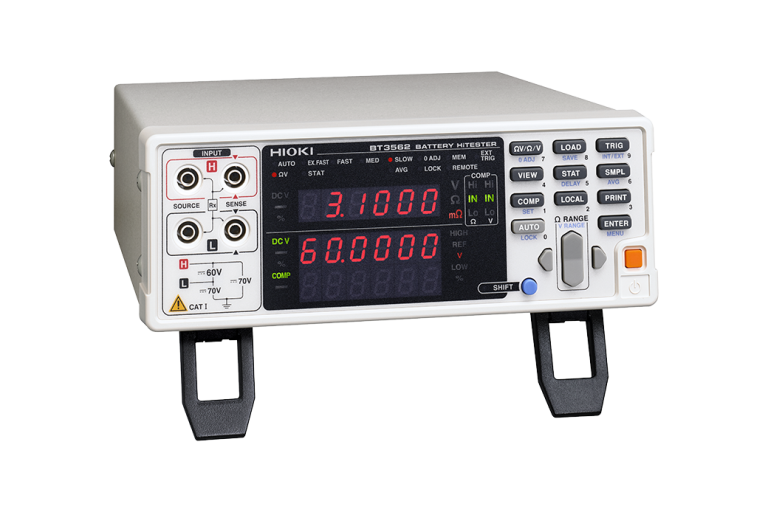

At mme-ae, we offer the Hioki BT3562-01 BATTERY HiTESTER, a high-performance instrument designed for measuring resistance and voltage in various applications. With its wide measurement range and high accuracy, this Hioki BT3562-01 is ideal for use in industries such as electrical, electronics, and automotive.

Whether you’re looking to measure the resistance of a battery or the voltage of a circuit, the Hioki BT3562-01 has got you covered. Its compact and lightweight design makes it easy to handle and transport, while its RS-232C and GP-IB interfaces enable easy data transfer and connectivity.

Hioki BT3562-01 Key Features

The Hioki BT3562-01 features a range of key specifications, including:

Max. applied measurement voltage: ± 60 V DC
Rated input voltage ± 70 V DC
Resistance measurement ranges: 3 mΩ to 3000 Ω
Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt.
Testing source frequency: 1 kHz ± 0.2 Hz
Testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range)
Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges)
Voltage measurement ranges: 6 VDC (resolution 10 μV) to 60 VDC (resolution 100 μV)
Display: 31000 full digits (resistance), 600000 full digits (voltage)
Sampling rate: Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow)
Comparator functions: Judgment result: Hi/IN/Lo, Setting: Upper and lower limit, Deviation (%) from reference value

Who Needs the Hioki BT3562-01?

The Hioki BT3562-01 is designed for use in a variety of industries and applications, including:

Electrical and electronics manufacturing

Automotive and aerospace industries

Research and development laboratories

Quality control and testing facilities

Education and training institutions

Hioki BT3562-01 Applications

The Hioki BT3562-01 can be used in a range of applications, including:

Measuring battery resistance and voltage
Testing circuit voltage and current
Measuring insulation resistance
Testing electrical safety and reliability
Measuring temperature and humidity

Why Buy Hioki BT3562-01 from mme-ae?

Browse our HiTester instruments. Read more in our electrical safety standards guide.

At mme-ae, we offer the Hioki BT3562-01 at a competitive price, with fast shipping and excellent customer service. We also offer a range of accessories and support services to ensure that you get the most out of your instrument.

Whether you’re looking for a high-performance instrument for your laboratory or a reliable tool for your workshop, the Hioki BT3562-01 is an excellent choice. With its wide measurement range, high accuracy, and compact design, this instrument is ideal for a variety of applications.

Hioki BT3562-01 Specifications

Max. applied measurement voltage	± 60 V DC rated input voltage ± 70 V DC Max. rated voltage to earth
Resistance measurement ranges	3 mΩ (Max. display 3.1000 mΩ, resolution 0.1 μΩ) to 3000 Ω (Max. display 3100.0 Ω, resolution 100 mΩ), 7 ranges Accuracy: 30 mΩ to 3000 Ω ranges, ± 0.5% rdg. ± 5 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM) 3 mΩ range, ± 0.5% rdg. ± 10 dgt. (Add ± 30 dgt. for EX.FAST, or ± 10 dgt. for FAST, or ± 5 dgt. for MEDIUM) Testing source frequency: 1 kHz ± 0.2 Hz, testing current: 100 mA (3 mΩ range) to 10 μA (3000 Ω range) Open-circuit Voltage: 25 V peak (3/30 mΩ ranges), 7 V peak (300 mΩ range), 4 V peak (3 Ω to 3000 Ω ranges)
Voltage measurement ranges	6 VDC (resolution 10 μV) to 60 VDC (resolution 100 μV), 2 ranges
	Accuracy: ± 0.01% rdg. ± 3 dgt. (Add ± 3 dgt. for EX.FAST, or ± 2 dgt. for FAST and MEDIUM)
Display	31000 full digits (resistance), 600000 full digits (voltage), LED
Sampling rate	Four steps, 4 ms (Extra-FAST), 12 ms (FAST), 35 ms (Medium), 150 ms (Slow) (Typ., sampling time depends on supply frequency settings and function.)
Measurement time	Response time + sampling rate, approx. 10 ms for measurements (Response time depends on reference values and the measurement object.)
Comparator functions	Judgment result: Hi/IN/Lo (resistance and voltage judged independently) Setting: Upper and lower limit, Deviation (%) from reference value Logical ANDed result: PASS/FAIL, calculates the logical AND of resistance and voltage judgment results. Result display, beeper, or external I/O output, Open-collector (35 V, 50 mA DC max.)
Analog output	Measured resistance (displayed value, from 0 to 3.1 V DC, -01 suffix models only)
Interfaces	External I/O, RS-232C, Printer (RS-232C), GP-IB (-01 suffix models only)
Power supply	100 to 240 VAC, 50/60 Hz, 30 VA max.
Dimensions and mass	215 mm (8.46 in) W × 80 mm (3.15 in) H × 295 mm (11.61 in) D, 2.4 kg (84.7 oz)
Included accessories	Instruction manual ×1, Power cord ×1
