Hioki CT6710 CURRENT PROBE | Mohammad Mahdi Electronics

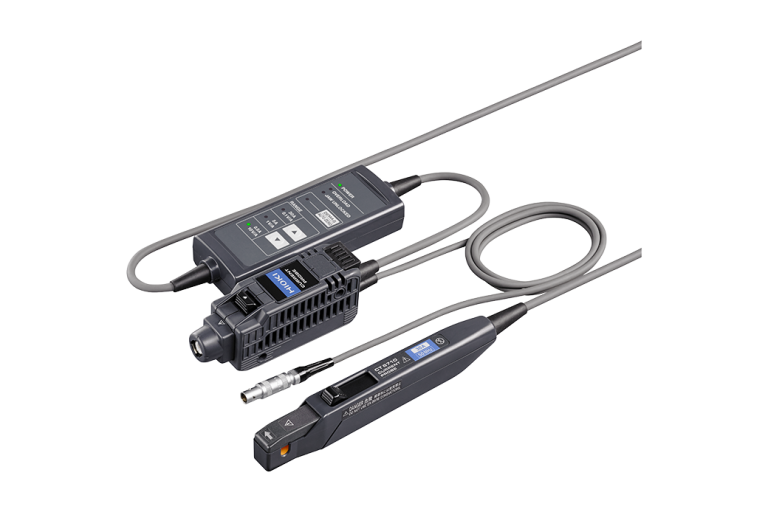

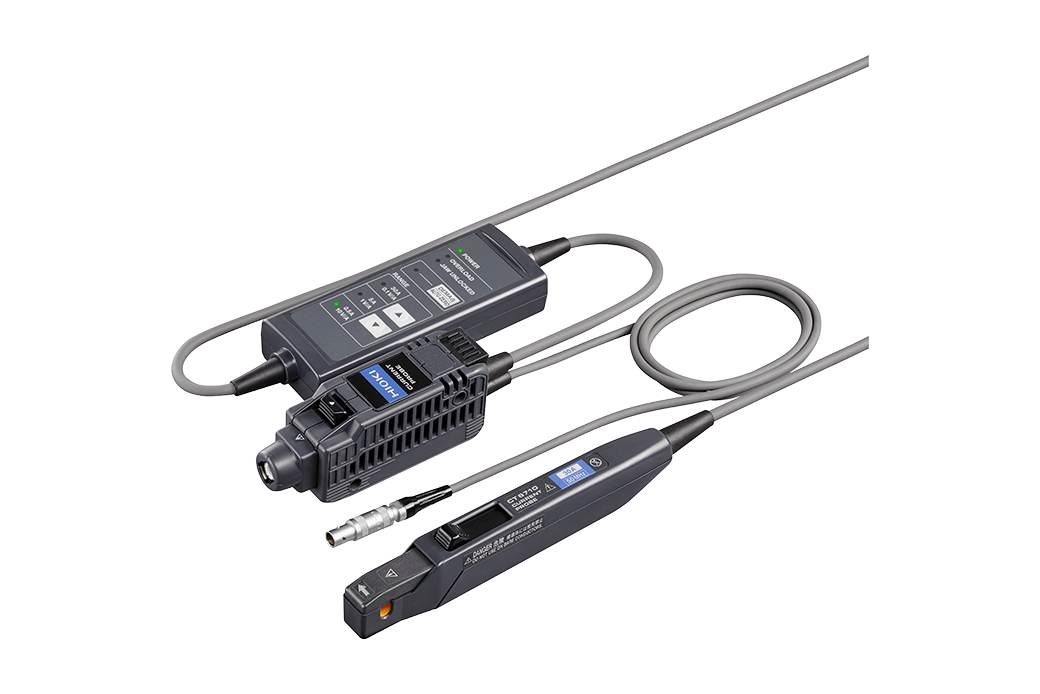

At Mohammad Mahdi Electronics, we offer the Hioki CT6710 CURRENT PROBE, a high-performance tool designed for measuring current in a variety of applications. With its ability to measure DC to 50 MHz (-3 dB), this probe is ideal for use in electrical engineering, research, and development.

Whether you’re working on a project that requires precise current measurement or simply need a reliable tool for your daily work, the Hioki CT6710 CURRENT PROBE is an excellent choice. Its compact design and durable construction make it easy to use and transport, while its high accuracy and reliability ensure that you get the results you need.

Hioki CT6710 CURRENT PROBE Key Features

The Hioki CT6710 CURRENT PROBE features a range of key specifications that make it an ideal choice for current measurement applications. These include:

• Frequency bandwidth: DC to 50 MHz (-3 dB)
• Rise time: 7.0 ns or shorter
• Delay time (Typical): 30 A range: 12 ns, 5 A range: 12 ns, 0.5 A range: 13 ns
• Noise level: 75 μA rms max
• Max. rated current: 30 A range: 30 A rms, 5 A range: 5 A rms, 0.5 A range: 0.5 A rms
• Max. allowable peak current: 30 A range: ±50 A peak, 5 A range: ± 7.5 A peak, 0.5 A range: ± 0.75 A peak
• Amplitude accuracy: 30 A range: ±3.0% rdg. ±1 mV, 5 A range: ±3.0% rdg. ±1 mV, 0.5 A range: ±3.0% rdg. ±10 mV
• Output rate: 30 A range: 0.1 V/A, 5 A range: 1 V/A, 0.5 A range: 10 V/A
• Measurable conductors: φ 5 mm (0.20 in), Insulated conductor

Who Needs the Hioki CT6710?

The Hioki CT6710 CURRENT PROBE is designed for use in a variety of applications, including electrical engineering, research, and development. It is ideal for use in laboratories, workshops, and on-site measurement applications.

Whether you’re working on a project that requires precise current measurement or simply need a reliable tool for your daily work, the Hioki CT6710 CURRENT PROBE is an excellent choice. Its high accuracy and reliability ensure that you get the results you need, while its compact design and durable construction make it easy to use and transport.

Hioki CT6710 CURRENT PROBE Applications

The Hioki CT6710 CURRENT PROBE is designed for use in a variety of applications, including:

• Electrical engineering
• Research and development
• Laboratory applications
• Workshop applications
• On-site measurement applications

Why Buy Hioki CT6710 CURRENT PROBE from Mohammad Mahdi Electronics?

Browse our current accessories. Read more in our top clamp meters for electricians.

At Mohammad Mahdi Electronics, we offer the Hioki CT6710 CURRENT PROBE at a competitive price, with fast shipping and excellent customer service. We are a trusted supplier of Hioki products, and we guarantee the quality and accuracy of our tools.

Whether you’re working on a project that requires precise current measurement or simply need a reliable tool for your daily work, the Hioki CT6710 CURRENT PROBE is an excellent choice. Order now and take advantage of our competitive pricing and excellent customer service.

Hioki CT6710 CURRENT PROBE Specifications
