Description

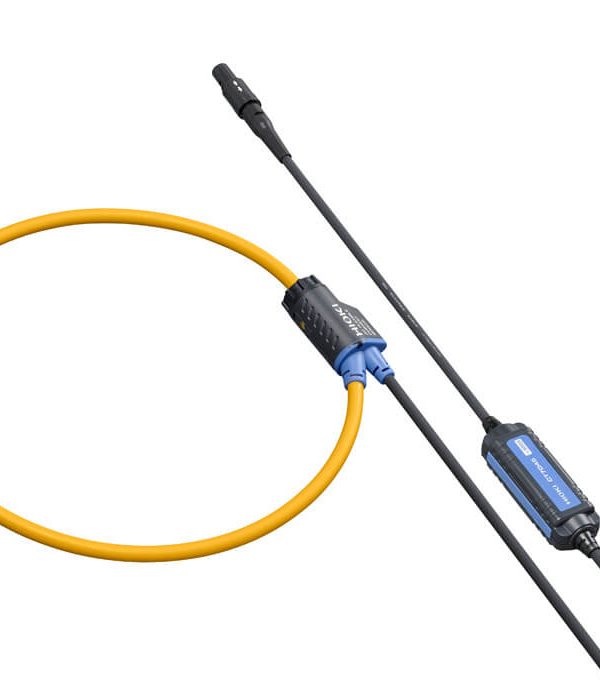

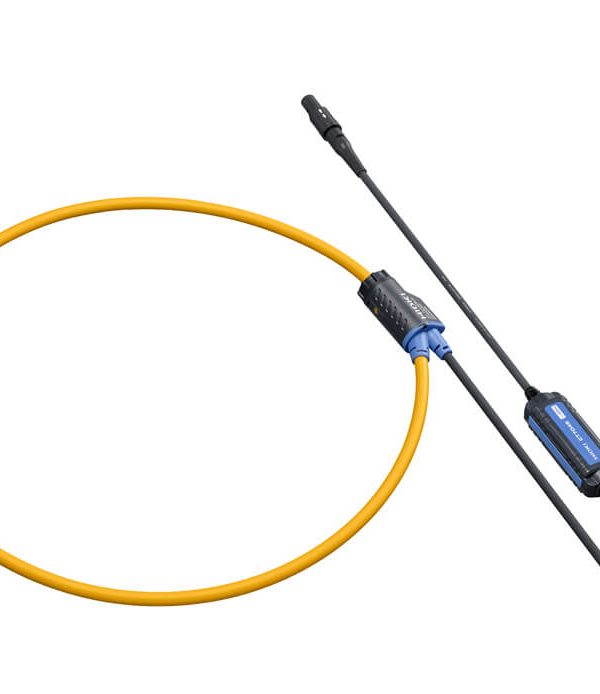

At MME, we understand the importance of accurate electrical measurements in various industries. That’s why we offer the Hioki CT7044 AC Flexible Current Sensor, a reliable and versatile tool for measuring AC currents up to 6000 A.

With its flexible loop cable diameter of φ7.4 mm (0.29 in), this sensor is designed to fit into tight spaces, making it ideal for applications where space is limited. Additionally, its IP54 dust and water resistance ensures that it can withstand harsh environments and provide reliable measurements.

Hioki CT7044 Key Features

The Hioki CT7044 AC Flexible Current Sensor offers a range of features that make it an essential tool for electrical measurements. Some of its key features include:

Rated measurement current of 6000 A AC
Internal measurement range of 600 A AC/ 6000 A AC
Max. allowable input of 10000 A continuous
Bandwidth of 10 Hz to 50 kHz (±3dB)
Amplitude and phase accuracy of ±1.5 % rdg. ±0.25 % f.s.
Output rate of 1 mV/A (600 A*) or 0.1 mV/A (6000 A)
Max. rated voltage to earth of AC 600 V (CAT IV), AC 1000 V (CAT III)
Loop diameter of φ 254 mm (10.00 in) or less

Who Needs the Hioki CT7044?

The Hioki CT7044 AC Flexible Current Sensor is designed for a wide range of applications, including electrical measurements, power quality analysis, and research and development. Its versatility and accuracy make it an essential tool for professionals in various industries, including electrical engineering, power distribution, and renewable energy.

Whether you’re working on a construction site, in a laboratory, or in a manufacturing facility, the Hioki CT7044 AC Flexible Current Sensor is the perfect tool for your electrical measurement needs.

Hioki CT7044 Applications

The Hioki CT7044 AC Flexible Current Sensor has a wide range of applications, including:

Electrical measurements
Power quality analysis
Research and development
Construction site measurements
Manufacturing facility measurements

Why Buy Hioki CT7044 from mme-ae?

Browse our current accessories. Read more in our top clamp meters for electricians.

At mme-ae, we offer the Hioki CT7044 AC Flexible Current Sensor at competitive prices, along with excellent customer service and support. Our team of experts is always available to answer any questions you may have and provide guidance on the use of this sensor.

Whether you’re looking for a reliable and accurate electrical measurement tool or just need some advice on the best sensor for your application, mme-ae is the perfect partner for you.

Hioki CT7044 Specifications

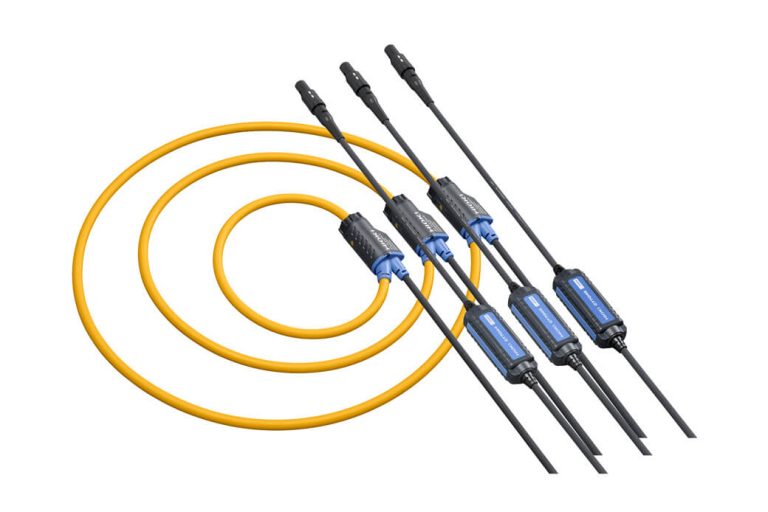

	CT7046	CT7045	CT7044
Rated measurement current	6000 A AC
Internal Measurement range	600 A AC/ 6000 A AC (Range is controlled by main device)
Max. allowable input	10000 A continuous (at 6000 A range, 45 to 66 Hz, requires derating )
Bandwidth	10 Hz to 50 kHz (±3dB) (When used in combination with CM7290 or CM7291: 10 Hz to 1 kHz)
Amplitude and phase accuracy	±1.5 % rdg. ±0.25 % f.s. (f.s. is internal range, 45 to 66 Hz) ±1 deg
Output rate	1 mV/A (600 A), 0.1 mV/A (6000 A) Selectable only when used with CM7290, CM7291, PQ3100
Max. rated voltage to earth	AC 600 V (CAT IV), AC 1000 V (CAT III)
Loop diameter	φ 254 mm (10.00 in) or less	φ 180 mm (7.09 in) or less	φ 100 mm (3.94 in) or less
Dust and water resistance *	IP54 (when connected to a supported instrument, Do not make measurements when wet.)
Output connectors	HIOKI PL 14
Operating temperature range	-25°C to 65°C (-13°F to 149°F)
Dimensions	Flexible loop cable diameter: φ7.4 mm (0.29 in), Cable length: Between flexible loop and battery box: 2.3 m (7.55 ft), Output cable: 20 cm (0.66 ft), Battery box25 mm (0.98 in)W × 72 mm (2.83 in)H × 20 mm (0.79 in)D
Mass	186 g (6.6 oz)	174 g (6.1 oz)	160 g (5.6 oz)
Included accessories	Instruction manual ×1
