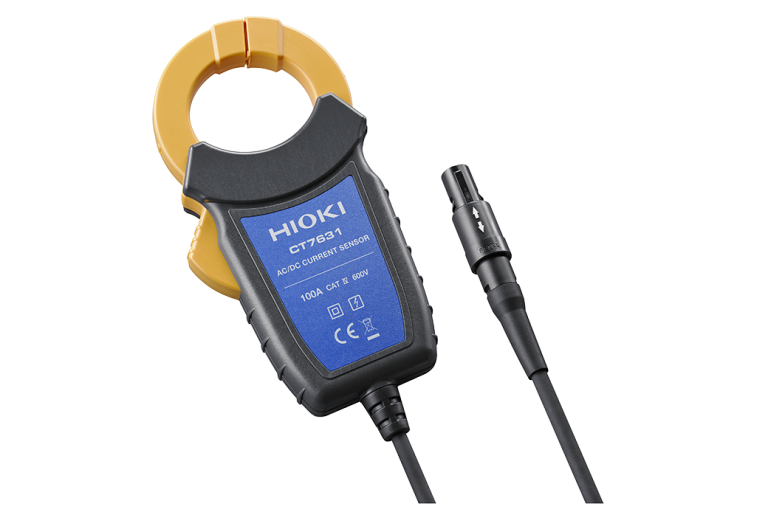

Hioki CT7631 AC/DC Current Sensor — High Accuracy for Electrical Applications

At Mohammad Mahdi Electronics, we offer the Hioki CT7631 AC/DC Current Sensor, a high-accuracy device designed for electrical applications. This sensor is perfect for measuring current in a variety of settings, from industrial to commercial.

With its rated measurement current of 100 A AC/DC, this sensor can handle demanding tasks with ease. Its max. measurement current of 100 A (requires derating at frequency) ensures that you can rely on accurate readings even in challenging environments.

Hioki CT7631 Key Features

The Hioki CT7631 AC/DC Current Sensor boasts a range of impressive features, including:

• Rated measurement current: 100 A AC/DC
• Max. measurement current: 100 A (requires derating at frequency)
• Max. allowable peak input: 150 A peak
• Bandwidth: DC to 10 kHz (-3dB)
• Typical phase accuracy: ±1.8 deg (DC < f ≤ 66 Hz)
• Output rate: 1 mV/A
• Max. rated voltage to earth: AC/DC 600 V (CAT IV)
• Core diameter: φ 33 mm (1.30 in) or less
• Output connectors: HIOKI PL 14
• Operating temperature range: -25°C to 65°C (-13°F to 149°F)
• Dimensions and mass: 58 mm (2.28 in)W × 132 mm (5.20 in)H × 18mm (0.71 in)D, 250 g (8.8 oz), Cable length 2.5 m (8.20 ft)

Who Needs the Hioki CT7631?

The Hioki CT7631 AC/DC Current Sensor is ideal for a variety of professionals, including:

Electricians, who require accurate current measurements for a range of tasks.

Engineers, who need reliable data for design and testing purposes.

Researchers, who require precise measurements for their studies.

Hioki CT7631 Applications

The Hioki CT7631 AC/DC Current Sensor has a range of applications, including:

Why Buy Hioki CT7631 from mme-ae?

At mme-ae, we offer the Hioki CT7631 AC/DC Current Sensor at competitive prices, along with excellent customer service and fast shipping. Whether you’re a professional or just starting out, we have the expertise and knowledge to help you find the right product for your needs.

For more information on current accessories, visit our current accessories category. To learn more about the top clamp meters for electricians, check out our top clamp meters for electricians blog. For more information on Hioki instruments, visit our Hioki instruments page.

Hioki CT7631 Specifications
