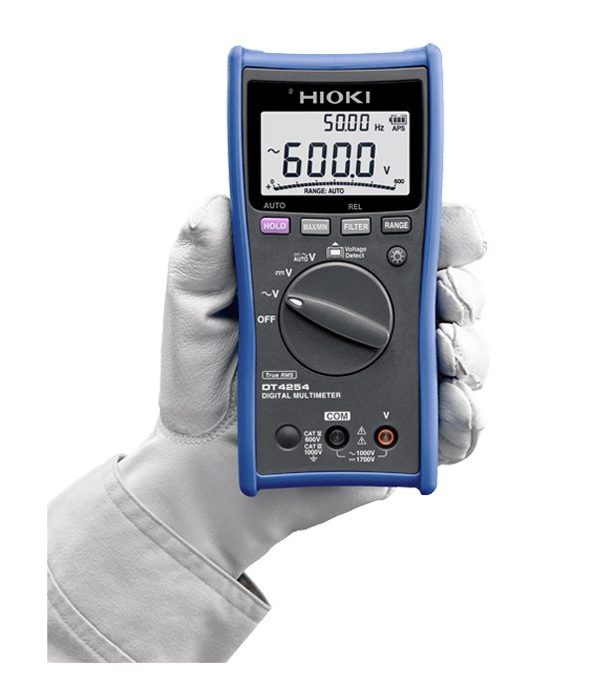

Hioki DT4254 Digital Multimeter

The Hioki DT4254 Digital Multimeter is a high-quality device that offers several features that make it an ideal tool for electrical work requiring optimal safety. Its voltage measurement model, clamp-on sensor-based current measurement, voltage detection function, low-pass filter, and broad operating temperature range make it an excellent choice for measuring photovoltaic modules and other high-voltage targets at up to 1700 V DC.

SKU: 69323

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Original price was: AED 680.Current price is: AED 675. (excl.VAT)

20 People watching this product now!

Hioki DT4254 Digital Multimeter

The Hioki DT4254 Digital Multimeter is digital multimeter designed specifically for electrical work requiring optimal safety. It has a ±0.3% DC V accuracy and wide 40Hz to 1kHz AC V bandwidth. The instrument can measure DC voltages of up to 1,700 V. The DT4254 is a voltage measurement only model designed for measuring photovoltaic modules and other high-voltage targets up to 1700 V DC.

Hioki DT4254 Features

The Hioki DT4254 Digital Multimeter has several features that make it an ideal tool for electrical work. These include:

  • Voltage measurement model: This model measures up to 1700 V DC during open voltage inspections.
  • Clamp-on sensor-based current measurement: This feature prevents accidents caused by erroneous operation, such as attempting to measure voltage with the resistance range.
  • Voltage detection function: This feature detects AC voltages of between 40 V and 600 V.
  • Low-pass filter: This feature cuts high harmonics when measuring inverter fundamental waveforms.
  • Broad operating temperature range: The DT4254 can operate in temperatures ranging from -25°C (-13°F) to 65°C (149°F).

Advantages

  • Accuracy and Precision: The Hioki DT4254 offers high accuracy and precision, making it a reliable tool for voltage measurement.
  • Versatility: The Hioki DT4254 can be used in various applications, making it a versatile tool for professionals in different fields.
  • Safety Features: The Hioki DT4254 is designed with safety in mind, with voltage measurement terminals that are protected by a fuse and a fast-blow fuse and current-limiting resistor to prevent short-circuits.
  • Broad Operating Temperature Range: The Hioki DT4254 can operate in a broad temperature range of -25°C to 65°C (-13°F to 149°F), making it suitable for use in harsh environments.

Applications

The Hioki DT4254 Digital Multimeter is ideal for measuring photovoltaic modules and other high-voltage targets at up to 1700 V DC. It is also useful for solar power system and power equipment management.

Hioki DT4254 Digital Multimeter Specifications:

  • DC Voltage range: 600.0 mV to 1700 V (*1), 5 ranges, Basic accuracy: ±0.3 % rdg. ±3 dgt.
  • AC Voltage range: 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz, Basic accuracy 40 – 500 Hz: ±0.9 % rdg. ±3 dgt. (True RMS, crest factor 3)
  • AUTO AC/DCV: Yes
  • Voltage detection Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
  • Frequency range: 99.99 Hz to 99.99 kHz, 4 ranges (limited by the minimum detectable voltage),, Basic accuracy: ±0.1 % rdg. ±1 dgt.
  • Other functions: Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
  • Display: Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
  • Display: refresh rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 time/s)
  • Power supply: LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
  • Dimensions and mass: 84 mm (3.31 in)W × 174 mm (6.85 in)H× 52 mm (2.05 in), 390 g (13.8 oz) (including batteries and holster)
  • Included accessories: Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
  • Operating temperature: -25°C to 65°C (-13.0°F to 149.0°F)
  • Storage temperature: -30°C to 70°C (-22.0°F to 158.0°F)
  • IP42
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Hioki DT4254 Digital Multimeter”

Brand

Hioki

Hioki

Hioki is a renowned Japanese brand known for its expertise in developing and manufacturing electrical measuring instruments. The company, Hioki E.E. Corporation, was established in 1935, and since then, it has committed itself to providing innovative solutions in the field of electrical measurement.

Hioki's product range is extensive, including devices such as digital multimeters, clamp meters, power meters, and oscilloscopes. These instruments are vital for various applications in research and development, maintenance, and production testing across industries like electronics, energy, and automotive. One of the key strengths of Hioki is its focus on precision and reliability, traits that are crucial in measurement instruments. Hioki’s products are designed to offer accuracy and durability, which make them preferred choices among professionals worldwide.

Moreover, Hioki emphasizes technological innovation and quality. The company invests significantly in research and development to keep up with evolving technological trends and to ensure their products meet the highest standards. This commitment to quality is reflected in their adherence to international certifications and standards. Hioki also values environmental sustainability, integrating eco-friendly practices in their operations and product designs. This includes efforts to reduce the environmental impact of their manufacturing processes and to design products that are energy efficient.

Datasheet

Manual

Manual

Specifications

Technical Specifications

DC Voltage Range 600.0 mV to 1700 V, 5 ranges, Basic accuracy: ±0.3% rdg. ±3 dgt.
AC Voltage Range 6.000 V to 1000 V, 4 ranges, Frequency characteristics: 40 Hz to 1 kHz, Basic accuracy 40 – 500 Hz: ±0.9% rdg. ±3 dgt. (True RMS, crest factor 3)
AUTO AC/DCV Yes
Voltage Detection Hi: AC40 V to 600 V, Lo: AC80 V to 600 V
Frequency Range 99.99 Hz to 99.99 kHz, 4 ranges, Basic accuracy: ±0.1% rdg. ±1 dgt.
Other Functions Filter function, display value hold, auto hold, MAX/MIN/Average value display, relative value display, auto-power save, USB communication (option)
Display Main and Sub displays: 4-digits LCD, max. 6000 digits, bar graph
Display Refresh Rates 5 times/s (Capacitance measurement: 0.05 to 5 times/s, depending on measured value, Frequency: 1 to 2 times/s)
Power Supply LR03 alkaline batteries ×4, Continuous use: 130 hours (backlight OFF)
Dimensions and Mass 84 mm (3.31 in) W × 174 mm (6.85 in) H × 52 mm (2.05 in) D, 390 g (13.8 oz) (including batteries and holster)
Included Accessories Test lead L9207-10 ×1, Holster ×1, Instruction manual ×1, LR03 alkaline battery ×4
