Description

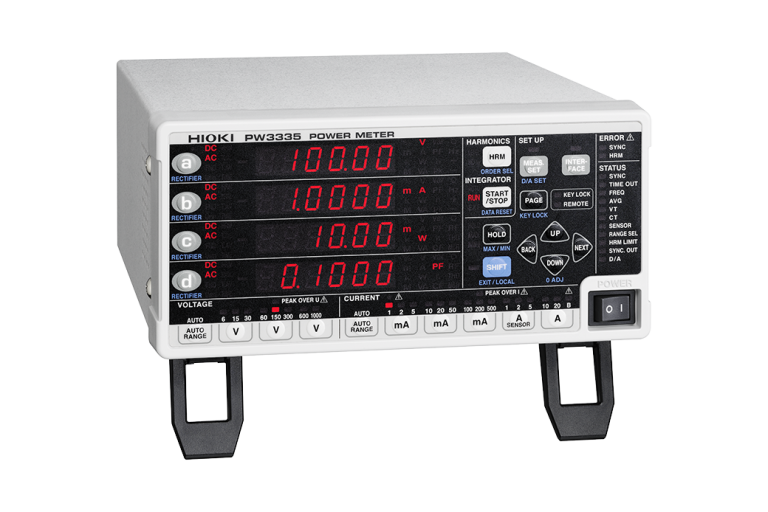

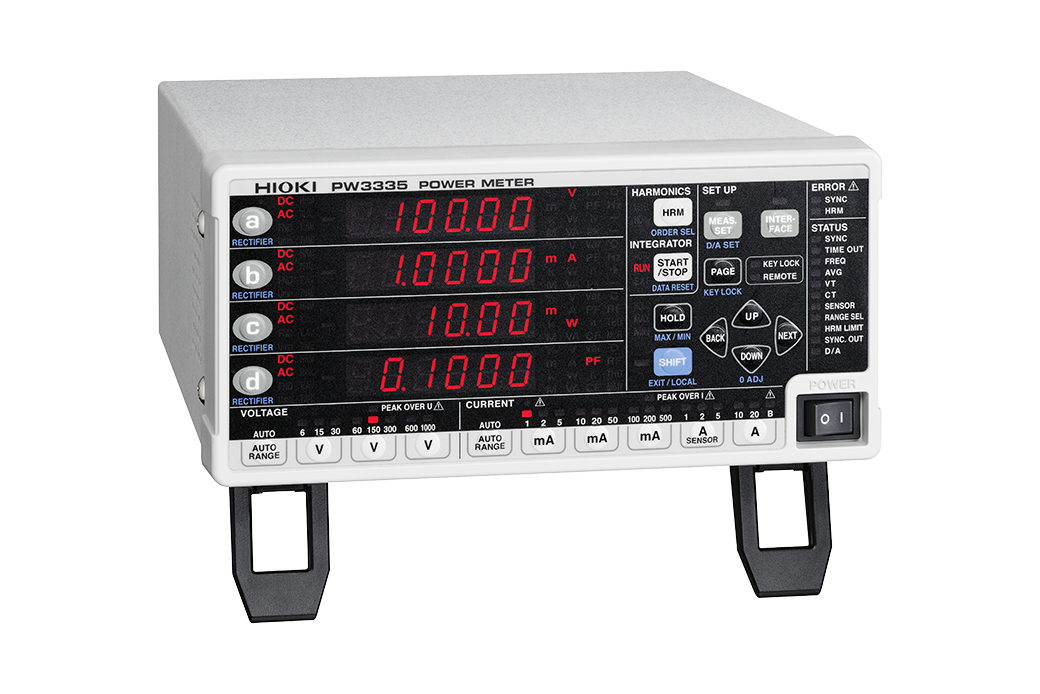

Welcome to the Hioki PW3335-01 POWER METER, a cutting-edge power quality analyzer designed to provide accurate and reliable measurements for a wide range of applications. At mme-ae, we offer this powerful tool to help you optimize your electrical systems and ensure maximum efficiency.

With its advanced features and user-friendly interface, the Hioki PW3335-01 POWER METER is an essential tool for anyone working with electrical systems. Whether you’re a professional engineer or a DIY enthusiast, this power meter is designed to meet your needs and provide you with the accurate data you need to make informed decisions.

Hioki PW3335-01 Key Features

The Hioki PW3335-01 POWER METER offers a range of advanced features that make it an ideal choice for power quality analysis. Some of the key features include:

Measurement lines: Single-phase/two-wires
Measurement items: Voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, maximum current ratio, current integration, active power integration, integration time, voltage waveform peak value, current waveform peak value, voltage crest factor, current crest factor, time average current, time average active power, voltage ripple rate, current ripple rate
Harmonic parameters: Synchronization frequency range: 10 Hz to 640 Hz, Maximum analysis order: 50th Harmonic voltage RMS value, harmonic current RMS value, harmonic active power, total harmonic voltage distortion, total harmonic current distortion, fundamental wave voltage, fundamental wave current, fundamental wave active power, fundamental wave apparent power, fundamental wave reactive power, fundamental wave power factor (displacement power factor), fundamental wave voltage current phase difference, harmonic voltage content percentage, harmonic current content percentage, harmonic active power content percentage
Measurement ranges: [Voltage] AC/DC 6 V to 1000 V, 8 ranges, [Current] AC/DC 1 mA to 20 A, 14 ranges, [Power] 6.0000 mW to 20.000 kW (Depends on combination of voltage and current range)
Effect of power factor: ±0.1% f.s. or less (45 to 66 Hz, at power factor = 0)
Integration measurement (Integration time up to 10,000 hours): Switchable between fixed-range integration and auto-range integration.
Display refresh rate: 5 times/s to 20 seconds (depend on average times settings)
Frequency characteristics: DC, 0.1 Hz to 100 kHz
D/A output (-02/-04 models only): 7 channels (selectable from the following items): level output DC ±2 V f.s. or 5 V f.s., waveform output 1 V f.s., level output, instant

Who Needs the Hioki PW3335-01?

The Hioki PW3335-01 POWER METER is designed for a wide range of applications, including:

Electrical engineers and technicians who need to measure and analyze power quality in various systems.

Researchers and scientists who require accurate and reliable data for their studies.

Manufacturers and quality control specialists who need to ensure the quality of their products.

Anyone who needs to measure and analyze power quality in various systems.

Hioki PW3335-01 Applications

The Hioki PW3335-01 POWER METER has a wide range of applications, including:

Power quality analysis
Electrical system design and optimization
Research and development
Quality control
Manufacturing

Why Buy Hioki PW3335-01 from mme-ae?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At mme-ae, we offer the Hioki PW3335-01 POWER METER as part of our commitment to providing our customers with the best tools and solutions for their electrical systems. With our expertise and support, you can trust that you’re getting the best possible results from your power meter.

Whether you’re a professional engineer or a DIY enthusiast, the Hioki PW3335-01 POWER METER is an essential tool for anyone working with electrical systems. With its advanced features and user-friendly interface, this power meter is designed to meet your needs and provide you with the accurate data you need to make informed decisions.

Hioki PW3335-01 Specifications

Measurement lines	Single-phase/ two-wires
Measurement items	Voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, maximum current ratio, current integration, active power integration, integration time, voltage waveform peak value, current waveform peak value, voltage crest factor, current crest factor, time average current, time average active power, voltage ripple rate, current ripple rate
Harmonic parameters	Synchronization frequency range : 10 Hz to 640 Hz Maximum analysis order : 50th Harmonic voltage RMS value, harmonic current RMS value, harmonic active power, total harmonic voltage distortion, total harmonic current distortion, fundamental wave voltage, fundamental wave current, fundamental wave active power, fundamental wave apparent power, fundamental wave reactive power, fundamental wave power factor (displacement power factor), fundamental wave voltage current phase difference, harmonic voltage content percentage, harmonic current content percentage, harmonic active power content percentage (The following parameters can be downloaded as data with only PC communications : Harmonic voltage phase angle, harmonic current phase angle, harmonic voltage current phase difference)
Measurement ranges	[Voltage] AC/DC 6 V to 1000 V, 8 ranges [Current] AC/DC 1 mA to 20 A, 14 ranges [Power] 6.0000 mW to 20.000 kW (Depends on combination of voltage and current range) Effect of power factor : ±0.1% f.s. or less (45 to 66 Hz, at power factor = 0)
Integration measurement (Integration time up to 10,000 hours)	Switchable between fixed-range integration and auto-range integration. [Current] No. of displayed digits: 6 digits (from 0.00000 mAh, polarity-independent integration and sum value) [Active power] No. of displayed digits: 6 digits (from 0.00000 mWh, polarity-independent integration and sum value)
Input resistance (50/60 Hz)	[Voltage input terminal] 2 MΩ [Current input terminal] 520 mΩ or less (at 1 mA to 100 mA range), 15 mΩ or less (at 200 mA to 20 A range)
Basic accuracy (Active power)	±0.1% rdg. ±0.1% f.s. (DC) ±0.1% rdg. ±0.05% f.s. (45 Hz to 66 Hz, at input < 50% f.s.) ±0.15% rdg. (45 Hz to 66 Hz, at 50% f.s. ≤ input)
Display refresh rate	5 times/s to 20 seconds (depend on average times settings)
Frequency characteristics	DC, 0.1 Hz to 100 kHz
D/A output (-02/-04 models only)	7 channels (selectable from the following items): level output DC ±2 V f.s. or 5 V f.s., waveform output 1 V f.s., level output, instantaneous waveform output (voltage, current, active power), level output (apparent power, reactive power, power factor, or other), high-speed level output (voltage, current, active power)
Functions	[Rectification method] AC+DC, AC+DC Umn, AC, DC, FND, Auto-range, Average, VT or CT ratio settings, Synchronized control, MAX/MIN, and more
Logger connectivity	Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 1.1 and later, the PW3335-01 is not supported

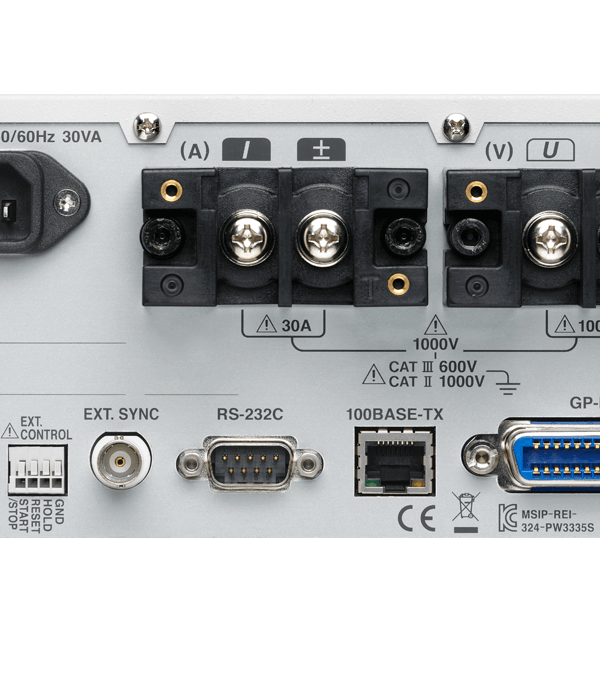

Interfaces	LAN (all models), RS-232C (except -01 model, for communication/LR8410 link), GP-IB (-01, -04 models only)
Power supply	100 V to 240 V AC, 50/60 Hz, 30 VA max.
Dimensions and mass	210 mm (8.27 in)W × 100 mm (3.94 in)H × 245 mm (9.65 in)D, 3 kg (105.8oz)
Included accessories	Instruction manual ×1, power cord ×1, voltage and current input terminal safety cover ×2, safety cover installation screws (M3 × 6 mm) ×4
