Description

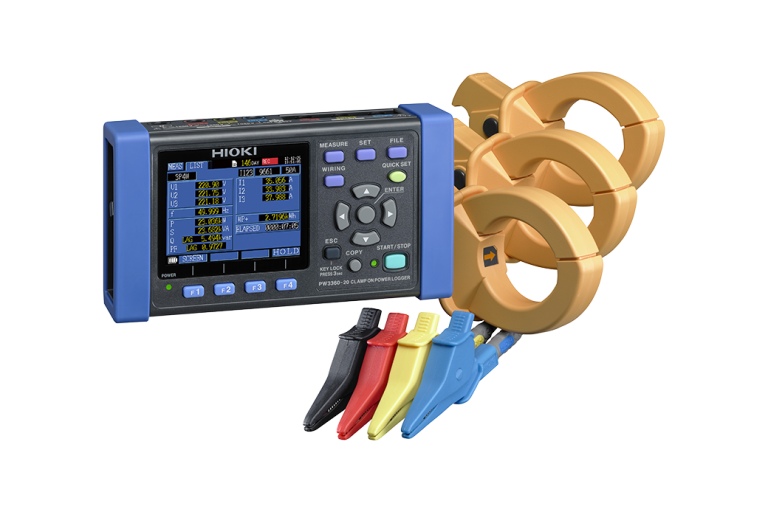

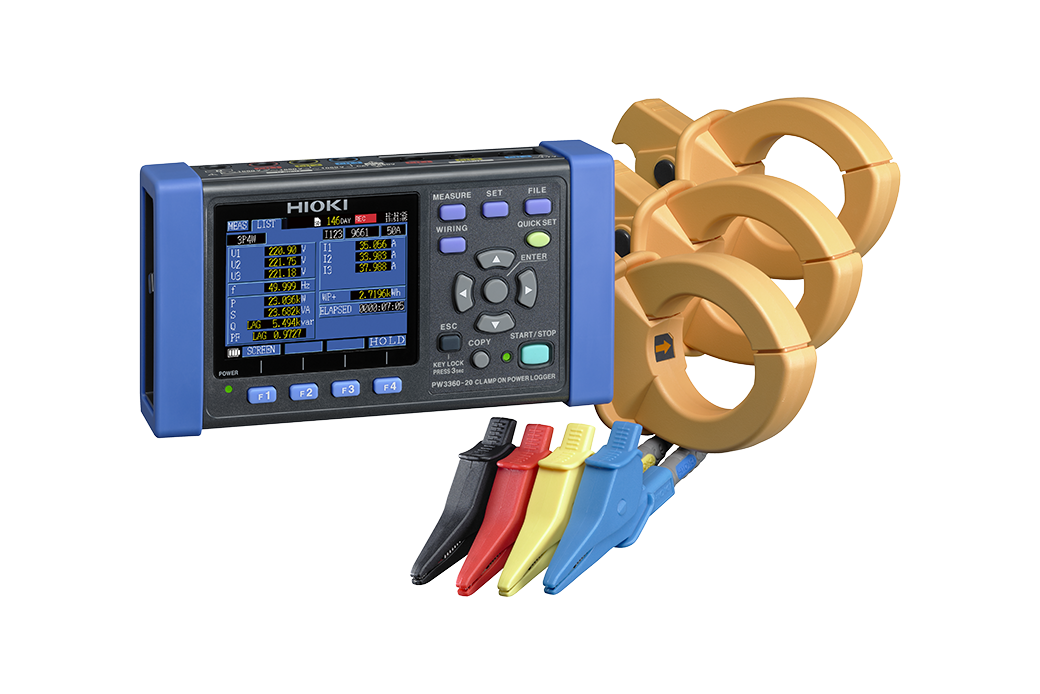

At mme-ae, we offer the Hioki PW3360-30 Clamp On Power Logger, a powerful tool for measuring and recording electrical power in various applications. With its advanced features and high accuracy, this logger is ideal for electrical instruments professionals and researchers.

The PW3360-30 features a wide range of measurement capabilities, including voltage, current, and power in single and three-phase circuits. It also records data to an SD card or internal memory, allowing for easy analysis and storage of measurement data.

Hioki PW3360-30 Key Features

The PW3360-30 offers a range of advanced features, including:

Measurement line & number of circuits: 50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels
Measurement items: Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power (with lag/lead display), apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand, pulse input [PW3360-21 only]: Harmonic voltage level, harmonic current level, harmonic power level, content percentage, phase angle, total harmonic distortion (THD-F or THD-R), up to 40th order
Voltage ranges: 600 V AC (Effective measurement range: 90.00 V to 780.00 V)
Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
Power ranges: 300.00 W to 9.0000 MW (depends on voltage/current combination and measured line type)
Basic accuracy: Voltage : ±0.3% rdg. ±0.1% f.s Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy (at power factor = 1)
Display update rate: 0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)
Save destination: SD memory card, or internal memory at real time
Data save interval: 1 sec to 30 sec, 1 minute to 60 minutes, 14 selections
Save items: Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data
Interfaces: SD/SDHC memory card LAN 100BASE-TX: HTTP server function USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download
Pulse output: proportional to active power consumption when measuring i

Who Needs the Hioki PW3360-30?

The PW3360-30 is ideal for professionals and researchers in various fields, including:

Electrical power engineers

Research and development teams

Quality control and assurance specialists

Manufacturing and production teams

And anyone who needs to measure and record electrical power in various applications.

Hioki PW3360-30 Applications

The PW3360-30 has a wide range of applications, including:

Power quality analysis
Energy management
Electrical safety testing
Research and development
Quality control and assurance

Why Buy Hioki PW3360-30 from mme-ae?

Read more in our electrical safety standards guide.

At mme-ae, we offer the Hioki PW3360-30 Clamp On Power Logger at a competitive price, with fast shipping and excellent customer service. We also offer a range of Hioki instruments and electrical instruments for your needs.

Don’t miss out on this opportunity to purchase the PW3360-30 from a trusted supplier. Contact us today to learn more about our products and services.

Hioki PW3360-30 Specifications

Measurement line & number of circuits	50/60 Hz, Single phase 2 wires (1/2/3 circuits), Single phase 3 wires (1 circuit), Three phases 3 wires (1 circuit), Three phases 4 wires (1 circuit), Current only: 1 to 3 channels
Measurement items	Voltage RMS, current RMS, voltage fundamental wave value, current fundamental wave value, voltage fundamental wave phase angle, current fundamental wave phase angle, frequency (U1), voltage waveform peak (absolute value), current waveform peak (absolute value), active power, reactive power (with lag/lead display), apparent power, power factor (with lag/lead display) or displacement power factor (with lag/lead display), active energy (consumption, regeneration), reactive energy (lag, lead), energy cost display, active power demand quantity (consumption, regeneration), reactive power demand quantity (lag, lead), active power demand value (consumption, regeneration), reactive power demand value (lag, lead), power factor demand, pulse input [PW3360-21 only]: Harmonic voltage level, harmonic current level, harmonic power level, content percentage, phase angle, total harmonic distortion (THD-F or THD-R), up to 40th order
Voltage ranges	600 V AC (Effective measurement range: 90.00 V to 780.00 V)
Current ranges	500.00 mA to 5.0000 kA AC (depends on current sensor in use), 50.000 mA to 5.0000 A AC (Leak clamp on sensor only)
Power ranges	300.00 W to 9.0000 MW (depends on voltage/current combination and measured line type)
Basic accuracy	Voltage : ±0.3% rdg. ±0.1% f.s Current : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy Active power : ±0.3% rdg. ±0.1% f.s. + clamp sensor accuracy (at power factor = 1)
Display update rate	0.5 sec (except when accessing SD card or internal memory, or during LAN/USB communication)
Save destination	SD memory card, or internal memory at real time
Data save interval	1 sec to 30 sec, 1 minute to 60 minutes, 14 selections
Save items	Measurement value save: Average only / Average, Max./Min. value, [PW3360-21 only]: Harmonic data save: Average only / average, max./min. value in binary format, Screen copy: BMP form (saved every 5 min. at minimum interval time), Waveform save: Binary waveform data
Interfaces	SD/SDHC memory card LAN 100BASE-TX: HTTP server function USB 2.0: When connected to a PC, the SD Card and internal memory are recognized as removable storage devices, remote settings via communication program, data download Pulse output: proportional to active power consumption when measuring integral power consumption, Isolated open-collector signal

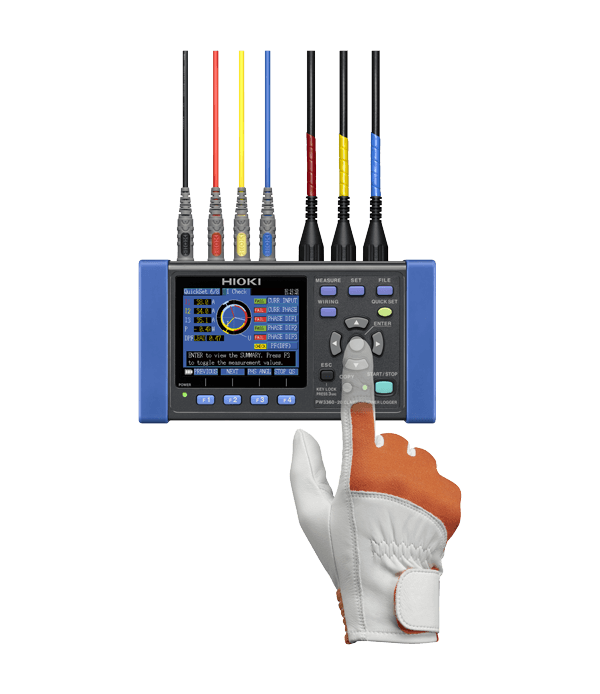

Functions	Connection check, Quick Set navigation guide, clock, pulse input
Power supply	AC Adapter Z1006: (100 to 240 V AC, 50/60 Hz), 40 VA (including AC adapter) Battery Pack 9459: (DC 7.2 V, 3 VA, charging time 6 hr 10 m), 6 hours of continuous use (with back light off)
Dimensions and mass	180 mm (7.09 in.) W × 100 mm (3.94 in.) H × 48 mm (1.89 in.) D, 550 g (19.4 oz.) without PW9002 180 mm (7.09 in.) W × 100 mm (3.94 in.) H × 67.2 mm (2.65 in.) D, 830 g (29.3 oz.) with PW9002
Included accessories	Voltage cord L9438-53 ×1 set, AC adapter Z1006 ×1, USB cable L1003 ×1, Instruction manual ×1, Measurement guide ×1, Color clip ×1 set: red, yellow, blue, white/two each, for color-coding clamp sensors, Spiral tubes for grouping clamp sensor cords ×5
