Description

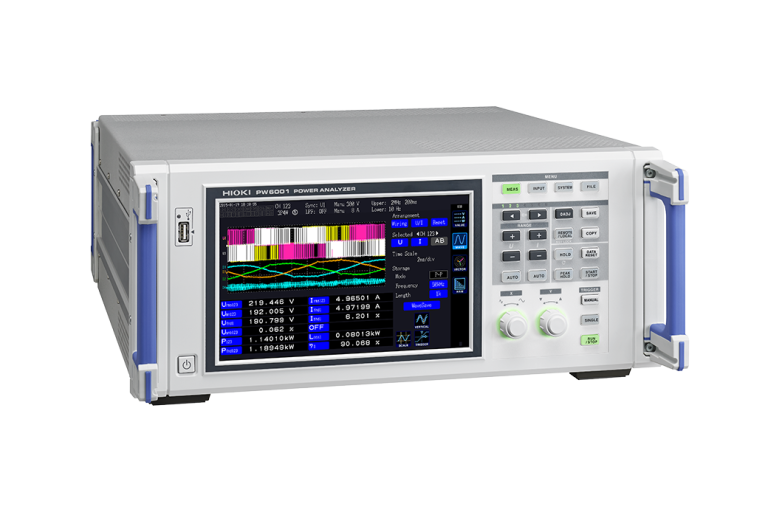

At Mohammad Mahdi Electronics, we offer the Hioki PW6001-06 Power Analyzer, a cutting-edge device designed to measure and analyze power quality in various applications. With its advanced features and high accuracy, this power analyzer is an essential tool for professionals in the electrical industry.

The Hioki PW6001-06 is a versatile device that can measure single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire systems. It features max. 6 channels for simultaneous voltage and current input, allowing for comprehensive power analysis. The device measures a wide range of parameters, including voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase angle (φ), frequency (f), efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), and current peak (Ipk).

Hioki PW6001-06 Key Features

The Hioki PW6001-06 Power Analyzer boasts an impressive frequency range of 0.1 Hz to 2 MHz, making it suitable for a wide range of applications. Its basic accuracy is ±0.02 % rdg. ±0.02 % f.s. for voltage and current measurements, ensuring reliable results.

Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire measurement line types
Max. 6 channels for simultaneous voltage and current input
Measurement items: Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase angle (φ), frequency (f), efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)
Frequency range: 0.1 Hz to 2 MHz
Basic accuracy: Voltage: ±0.02 % rdg. ±0.02 % f.s., Current: ±0.02 % rdg. ±0.02 % f.s.
Data update rate: Power measurement: 10 ms/ 50 ms/ 200 ms, Harmonic measurement: 200 ms (IEC standard mode), 50 ms (Wideband mode)
Data save interval: OFF, 10 msec to 500 msec, 1 sec to 30 sec, 1 minute to 60 minutes
External interfaces: USB (memory), LAN, GP-IB, RS-232C (for communication/LR8410 link), External control ,Synchronization control
Logger connectivity: Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter.
Power supply: 100 to 240 V AC, 50/60 Hz, 200 VA max
Dimensions and mass: 430 mm (16.93 in)W × 177 mm (6.97 in)H × 450 mm (17.72 in)D, 14 kg (49.4 oz) (PW6001-16)
Included accessories: Instruction Manual ×1, Power cord ×1, D-sub connector × 1 (PW6001-1x only)

Who Needs the Hioki PW6001-06?

The Hioki PW6001-06 Power Analyzer is designed for professionals in the electrical industry who require accurate and reliable power quality analysis. This includes electrical engineers, power system operators, and maintenance personnel.

The device is suitable for a wide range of applications, including power distribution systems, industrial power systems, and renewable energy systems. It is also useful for power quality monitoring, harmonic analysis, and energy efficiency optimization.

At mme-ae, we understand the importance of accurate power quality analysis. That’s why we offer the Hioki PW6001-06 Power Analyzer, a device that meets the needs of professionals in the electrical industry.

Hioki PW6001-06 Applications

Power distribution systems
Industrial power systems
Renewable energy systems
Power quality monitoring
Harmonic analysis
Energy efficiency optimization

Why Buy Hioki PW6001-06 from mme-ae?

Browse our power quality analyzers. Read more in our best power quality analyzers.

At Mohammad Mahdi Electronics, we offer the Hioki PW6001-06 Power Analyzer at a competitive price. Our team of experts is available to provide technical support and guidance to ensure that you get the most out of your device.

We also offer a range of accessories and services to complement the Hioki PW6001-06 Power Analyzer, including instruction manuals, power cords, and D-sub connectors.

Hioki PW6001-06 Specifications

Measurement line type	Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire

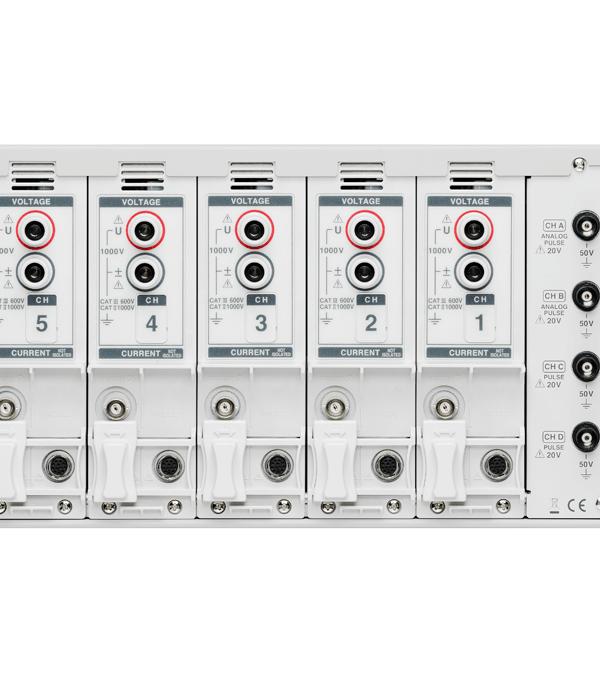

Number of input channels	Max. 6 channels; each input unit provides 1 channel for simultaneous voltage and current input (Voltage measurement unit: Photoisolated input, resistance voltage divider, Current measurement unit: Isolated input from current sensor)
Measurement items	Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase angle (φ), frequency (f), efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)
	Harmonic measurement: Harmonic active power, select calculation order from 2nd order to 100th order
	Waveform recording: Voltage and current waveforms/ Motor pulse: Always 5 MS/s Motor waveforms: Always 50 kS/s, 16 bits Recording capacity: 1 Mword × ((voltage + current) × number of channels + motor waveforms)
	Motor analysis (PW6001-11 to -16 only): Voltage, Torque, Rotation, Frequency, Slip, or Motor output
Measurement range	Voltage range: 6 to 1500 V, 8 ranges Current range (Probe 1) : 400 mA to 1 kA (depends on current sensor) Current range (Probe 2) : 100 mA to 50 kA (depends on current sensor) Power range: 2.40000W to 4.50000MW (depends on combination of voltage and current range) Frequency range: 0.1 Hz to 2 MHz
Basic accuracy	Voltage: ±0.02 % rdg. ±0.02 % f.s. Current: ±0.02 % rdg. ±0.02 % f.s. Active power: ±0.02 % rdg. ±0.03 % f.s.
Synchronization frequency range	Power measurement: 0.1 Hz to 2 MHz Harmonic measurement: 45 Hz to 66 Hz (IEC standard mode), 0.1 Hz to 300 kHz (Wideband mode)
Frequency band	DC, 0.1 Hz to 2 MHz
Data update rate	Power measurement: 10 ms/ 50 ms/ 200 ms Harmonic measurement: 200 ms (IEC standard mode), 50 ms (Wideband mode
Data save interval	OFF, 10 msec to 500 msec, 1 sec to 30 sec, 1 minute to 60 minutes User-selected from all measured values, including harmonic measured values, Specified measured values can be saved in internal memory or USB flash drive
External interfaces	USB (memory), LAN, GP-IB, RS-232C (for communication/LR8410 link), External control ,Synchronization control
Logger connectivity	Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later
Power supply	100 to 240 V AC, 50/60 Hz, 200 VA max

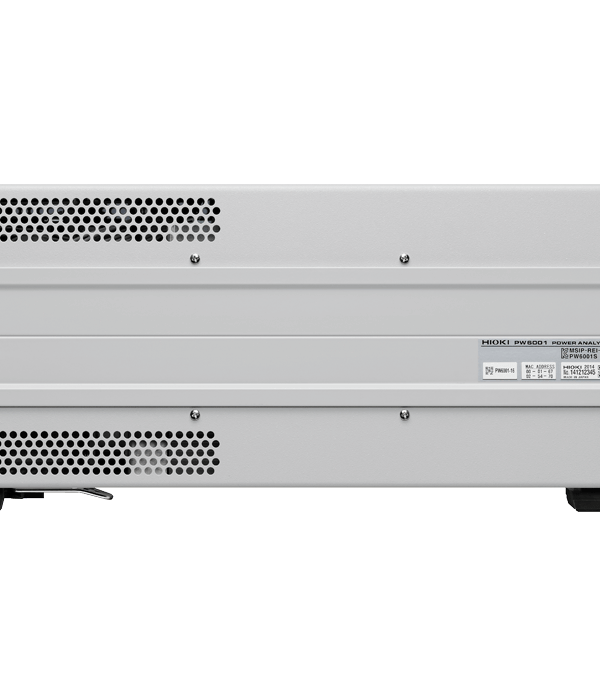

Dimensions and mass	430 mm (16.93 in)W × 177 mm (6.97 in)H × 450 mm (17.72 in)D, 14 kg (49.4 oz) (PW6001-16)
Included accessories	Instruction Manual ×1, Power cord ×1, D-sub connector × 1 (PW6001-1x only)
