Description

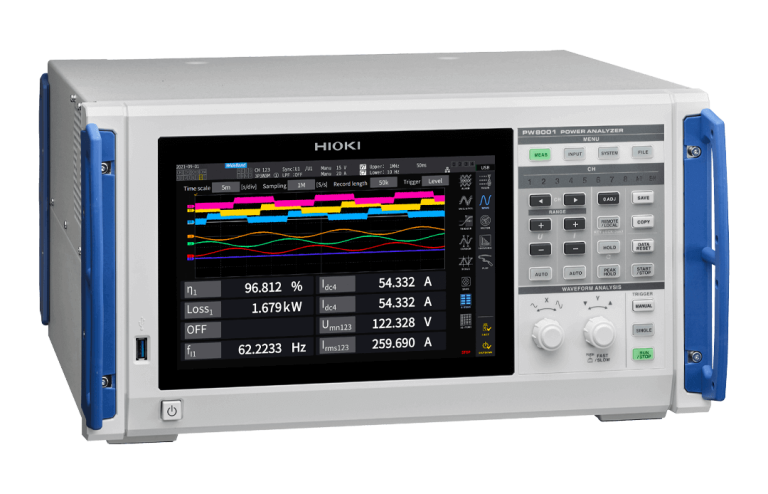

Welcome to the Hioki PW8001-13 Power Analyzer, a cutting-edge instrument designed to provide accurate and reliable measurements of power quality. At Mohammad Mahdi Electronics, we offer this powerful tool to help you optimize your electrical systems and ensure maximum efficiency.

The Hioki PW8001-13 is a versatile power analyzer that can measure a wide range of parameters, including voltage, current, active power, apparent power, reactive power, power factor, phase angle, and more. With its high-accuracy current sensor interface, you can automatically identify and correct phase shift, ensuring accurate measurements every time.

Hioki PW8001-13 Key Features

The Hioki PW8001-13 Power Analyzer boasts a range of impressive features, including:

Wideband measurement of voltage and current up to 5 MHz.
IEC-compliant harmonic measurement and flicker measurement.
Up to 8 input units can be connected.
High-accuracy current sensor interface supports automatic identification and phase shift correction.
Waveform recording with a recording capacity of 5M words.
Motor analysis option available.
FFT analysis for power spectrum analysis.

Who Needs the Hioki PW8001-13?

The Hioki PW8001-13 Power Analyzer is an essential tool for anyone involved in electrical system design, installation, and maintenance. Whether you’re a power engineer, a facilities manager, or a researcher, this instrument will help you optimize your electrical systems and ensure maximum efficiency.

With its advanced features and high-accuracy measurements, the Hioki PW8001-13 is ideal for a wide range of applications, including:

Power quality analysis

Harmonic measurement

Flicker measurement

Motor analysis

Power spectrum analysis

Hioki PW8001-13 Applications

The Hioki PW8001-13 Power Analyzer has a wide range of applications, including:

Power quality analysis

Harmonic measurement

Flicker measurement

Motor analysis

Power spectrum analysis

Why Buy Hioki PW8001-13 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki PW8001-13 Power Analyzer at competitive prices, along with exceptional customer service and support. Whether you’re looking for a reliable power analyzer or a comprehensive solution for your electrical system needs, we’ve got you covered.

Visit our power quality analyzer category to learn more about the Hioki PW8001-13 and other related products. You can also check out our best power quality analyzers blog for expert advice and insights on power quality analysis.

Hioki PW8001-13 Specifications

Measurement lines	1-phase-2-wire, 1-phase-3-wire, 3-phase-3-wire, 3-phase-4-wire
No. of PW8001 input units	Max. 8 units (mix and match)

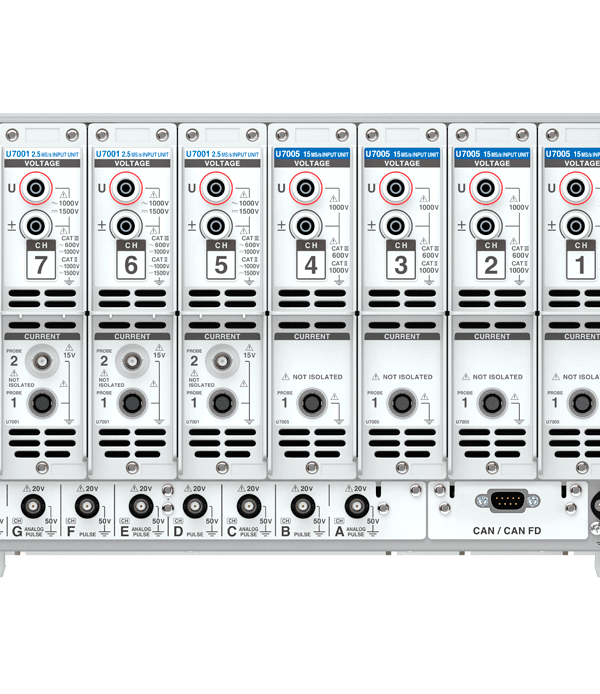

Type of input unit	U7001 2.5 MS/s INPUT UNIT U7005 15 MS/s INPUT UNIT
Measurement frequency band	U7001: DC, 0.1 Hz to 1 MHz U7005: DC, 0.1 Hz to 5 MHz
Sampling	U7001: 2.5 MHz, 16-bit U7005: 15 MHz, 18-bit
Data update rate	1 ms, 10 ms, 50 ms, 200 ms
Accuracy for power (U7001)	50/60 Hz: 0.02% of reading + 0.05% of range DC: 0.02% of reading + 0.05% of range 50 kHz : 0.4% of reading + 0.1% of range
Accuracy for power (U7005)	50/60 Hz : 0.01% of reading + 0.02% of range DC : 0.02% + 0.03% of reading of range 50 kHz: 0.15% of reading + 0.05% of range
Measurement range	Voltage: 6 V, 15 V, 30 V, 60 V, 150 V, 300 V, 600 V, 1500 V Current: (Probe1) 40 mA to 2 kA, (Probe2) 100 mA to 50 kA (Probe1 : Hioki’s high-accuracy current sensor interface supports automatic identification and phase shift correction. Probe 2: BNC I/F only for U7001)
Measurement parameters	voltage (U), current (I), active power (P), apparent power (S), reactive power(Q), power factor (λ), phase angle (φ), voltage frequency（fU）, current frequency（fI）, efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk) – Harmonics measurement : (Wideband mode: Maximum analysis order 500th, IEC measurement mode) – Waveform recording: recording capacity 5M words × ( [voltage/current] ) × – No. of channels + motor waveforms) – Motor analysis (option): voltage, torque, RPM, frequency, slip, motor power – FFT analysis (Power spectrum analysis) – Flicker measurement
IEC measurement mode	When the measurement line has a frequency of 50 Hz or 60 Hz, the instrument can perform harmonic measurements according to IEC61000-4-7 and voltage fluctuation/flicker measurements according to IEC61000-4-15
IEC-compliant harmonic measurement	Compliant with IEC 61000-4-7:2002 Analysis order: Harmonics: 0th to 200th orders, Inter-harmonic: 0.5th to 200.5th orders
IEC-compliant flicker measurement	Compliant with IEC 61000-4-15:2010 Ed 2.0 Flickermeter Class F2 Measurement items: Short-term flicker (Pst), Maximum short-term flicker value (PstMax), Long-term flicker value (Plt), Maximum instantaneous flicker value (PinstMax), Minimum instantaneous flicker value (PinstMin), Relative steady-state voltage change (dc), Maximum relative voltage change (dmax), Period while the relative voltage change exceeds the threshold (Tmax)
Calculation function	Efficiency and loss calculations, User-defined calculations, Delta conversion, Current sensor automatic phase shift calculation
Synchronization measurement	Optical link: Up to two units, 16 channels maximum BNC Synchronization: Up to four units, 32 channels maximum
External interface	USB flash drive, LAN, GP-IB, RS-232C, external control, optical link, BNC sync., CAN or CAN FD
Power supply	100 V to 240 V AC, 50/60 Hz, 230 VA
Dimensions and mass	Approx. 430 mm (16.93 in) W × 221 mm (8.70 in) H × 361mm (14.21 in) D, Approx. 14kg (493.84 oz)
Included accessories	– Power cord ×1 – Instruction Manual ×1 – D-sub 25-pin connector ×1 (PW8001-02, -05, -12, -15 only)
