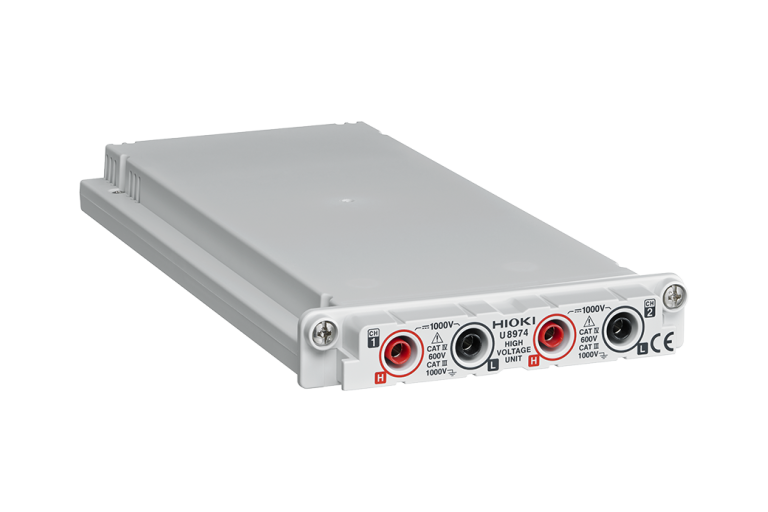

Hioki U8974 High Voltage Unit — Precision Measurement for Electrical Safety

At Mohammad Mahdi Electronics, we understand the importance of precise electrical measurements in ensuring safety and efficiency. That’s why we offer the Hioki U8974 High Voltage Unit, a cutting-edge device designed for high-accuracy voltage measurement.

This powerful unit features 2 channels with DC/RMS selectable measurement, allowing you to capture precise data with ease. The Hioki U8974 also boasts a wide measurement range, from 200 mV/div to 50 V/div (DC mode) and 500 mV/div to 50 V/div (RMS mode), making it ideal for a variety of applications.

Hioki U8974 Key Features

The Hioki U8974 High Voltage Unit is designed with precision and reliability in mind. With a high sampling rate of 1MS/s, you can capture precise data with ease. The unit also features a compact design, making it easy to integrate into your existing setup.

• Measurement functions: DC/RMS selectable
• Number of channels: 2
• Maximum rated voltage to ground: 1000 V AC or DC (CAT III), 600 V AC or DC (CAT IV)
• Input terminals: Banana input terminal (Input impedance: 4 MΩ, Input capacitance: 5 pF)
• Measurement range: 200 mV/div to 50 V/div (DC mode), 8 ranges 500 mV/div to 50 V/div (RMS mode), 7 ranges
• Measurement resolution: 1/1600 of measurement range (using 16-bit A/D conversion)
• Maximum sampling rate: 1MS/s
• Measurement accuracy: ±0.25% f.s. (with filter 5 Hz, zero position accuracy included)
• RMS measurement: RMS accuracy: ±1.5% f.s. (DC, 30 Hz to 1 kHz), ±3% f.s. (1 kHz to 100 kHz)
• Response time: High speed 150 ms, Medium speed 500 ms, Low speed 2.5 s
• Frequency characteristics: DC to 100 kHz (-3dB)
• Input coupling: DC/GND
• Maximum input voltage: 1000 V DC, 700 V AC

Who Needs the Hioki U8974?

The Hioki U8974 High Voltage Unit is designed for professionals who require precise electrical measurements in their work. This includes electrical engineers, technicians, and safety inspectors who need to ensure that electrical systems are safe and efficient.

With its high accuracy and wide measurement range, the Hioki U8974 is ideal for a variety of applications, including electrical safety testing, measurement, and analysis.

Hioki U8974 Applications

The Hioki U8974 High Voltage Unit is suitable for a variety of applications, including:

• Electrical safety testing
• Measurement and analysis
• Electrical system design
• Research and development

Why Buy Hioki U8974 from MME?

At Mohammad Mahdi Electronics, we offer the Hioki U8974 High Voltage Unit at competitive prices, along with excellent customer service and support. Our team of experts is always available to answer any questions you may have and provide guidance on how to use the unit to its full potential.

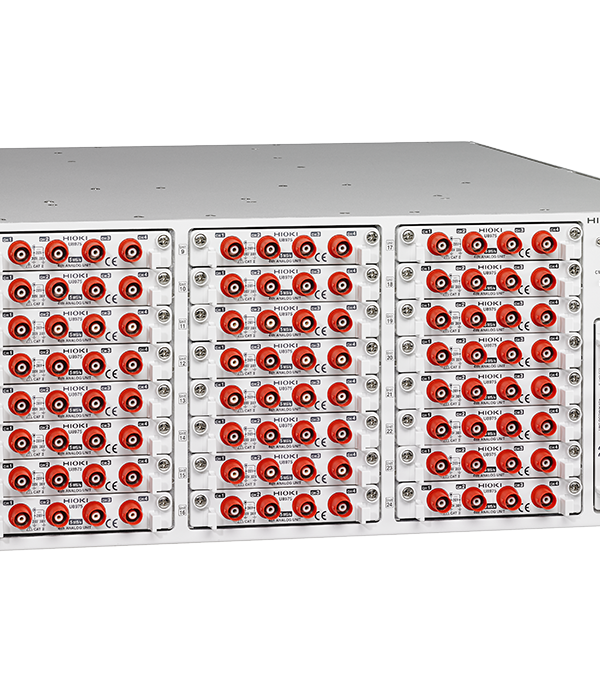

We also offer a range of recorders and dataloggers that can be used in conjunction with the Hioki U8974 to capture and analyze data.

For more information on the Hioki U8974 High Voltage Unit and its applications, please refer to our electrical safety standards guide and Hioki instruments page.

Hioki U8974 Specifications
