Description

At Mohammad Mahdi Electronics, we understand the importance of precise measurement in electrical applications. That’s why we’re proud to offer the Hioki U8975 4CH ANALOG UNIT, a cutting-edge device designed to meet the demands of modern electrical systems.

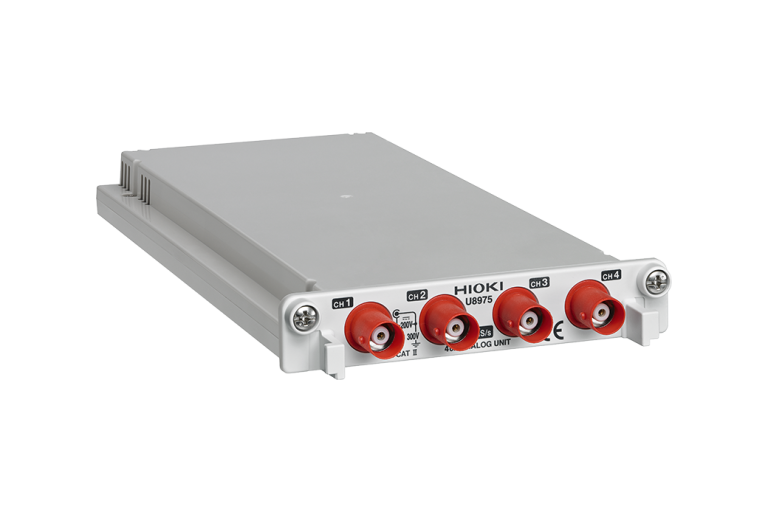

This 4-channel analog unit is engineered to provide accurate voltage measurements, with a high measurement accuracy of ±0.1% f.s. and a sampling rate of 5 MS/s. The isolated BNC terminals ensure safe and reliable connections, while the compact design makes it easy to integrate into systems.

Hioki U8975 Key Features

The Hioki U8975 4CH ANALOG UNIT offers a range of features that make it an ideal choice for electrical applications. These include:

Measurement functions for voltage measurement
4 channels for simultaneous sampling
Isolated BNC terminals for safe connections
High measurement accuracy of ±0.1% f.s.
5 MS/s sampling rate for fast data capture
DC to 2 MHz frequency range for comprehensive measurements
Compact design for easy integration

Who Needs the Hioki U8975?

The Hioki U8975 4CH ANALOG UNIT is designed for a wide range of electrical applications, including:

Electrical safety testing and certification

Power quality monitoring and analysis

Electrical system design and development

Research and development in electrical engineering

Hioki U8975 Applications

The Hioki U8975 4CH ANALOG UNIT is suitable for a variety of applications, including:

Electrical safety testing
Power quality monitoring
Electrical system design
Research and development

Why Buy Hioki U8975 from MME?

Browse our recorders and dataloggers. Read more in our measurement guides. See other Hioki instruments.

At Mohammad Mahdi Electronics, we offer the Hioki U8975 4CH ANALOG UNIT at competitive prices, with fast shipping and excellent customer service. Whether you’re looking for a reliable measurement solution for electrical applications or need help with system design and development, we’re here to help.

For more information on the Hioki U8975 4CH ANALOG UNIT or to place an order, please contact us today.

Hioki U8975 Specifications

Measurement functions	Number of channels: 4, for voltage measurement
Input terminals	Isolated BNC terminal (Input impedance: 1 MΩ, Input capacitance: 30 pF) Max. rated voltage to earth: 300 V AC or DC (with input isolated from the unit, the maximum voltage that can be applied between input channel and chassis and between input channels without damage)
Measurement range	4, 10, 20, 40, 100, 200 V f.s., 6 ranges (AC voltage for possible measurement/display using the memory function: 140 V rms) Low-pass filter: 5/500/5 k/200 kHz
Measurement resolution	1/32000 of measurement range (using 16-bit A/D conversion)
Highest sampling rate	5 MS/s (4 channel simultaneous sampling)
Measurement accuracy	±0.1% f.s. (with filter 5 Hz, zero position accuracy included)
Frequency characteristics	DC to 2 MHz -3 dB
Input coupling	DC/GND
Max. allowable input	200 V DC (when direct input)
Dimensions and mass	106 mm (4.17 in) W × 19.8 mm (0.78 in) H × 196.5 mm (7.74 in) D, 250 g (8.8 oz)
Included accessories	None

User Manual

User manual (PDF)PDF
