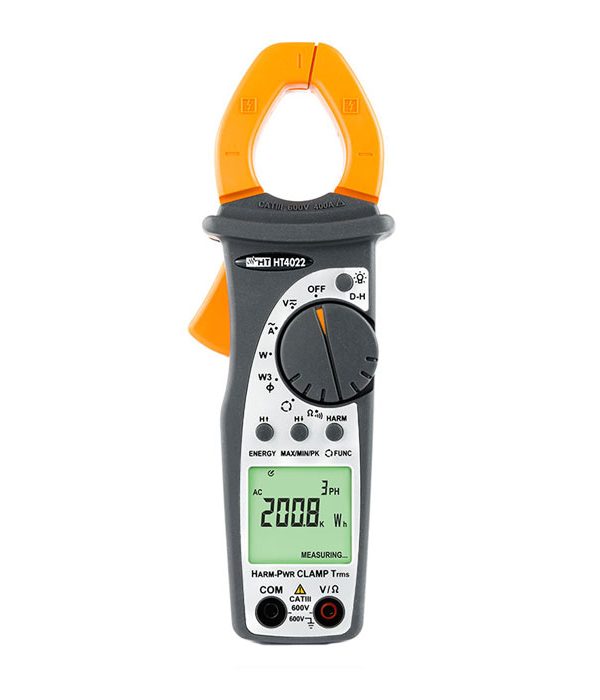

KIMO HT4022 Professional Clamp Meter

The KIMO HT4022 Professional Clamp Meter from is a versatile instrument designed for precise electrical measurements in various applications. With its TRMS 400A AC and power/harmonic measurement capabilities, it provides comprehensive troubleshooting and analysis information.

It measures AC currents up to 400A, AC/DC voltages up to 600V, frequency, resistance, continuity, and power-related parameters. The clamp meter also offers phase sequence detection and the ability to measure voltage and current harmonics, providing valuable insights into system performance.

  • Measurement Range: Up to 400A
  • True RMS (TRMS) Technology
  • Measurement Range: Up to 600V
  • Frequency Range: Auto-ranging
SKU: 29438

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

12 People watching this product now!

KIMO HT4022 Professional Clamp Meter Introduction

The KIMO HT4022 Professional Clamp Meter from “Emco Kimo Electronic” is a versatile instrument designed for precise electrical measurements in various applications. With TRMS 400A AC and power/harmonic measurement capabilities, the HT4022 provides comprehensive troubleshooting and analysis information.

The KIMO HT4022 Professional Clamp Meter allows measurement of AC up to 400A, ac/dc voltage up to 600V, frequency, resistance, continuity, real/reactive/apparent power, power factor (Cos), and single-phase and/or three-phase balanced power phase systems. It also offers single-terminal phase sequence detection, allowing users to identify the correct phase alignment.

One of the notable features of the KIMO HT4022 Professional Clamp Meter is the ability to measure absolute and percentage values ​​of voltage and current harmonics as well as calculate THD% (Total Harmonic Distortion). This feature provides valuable information about the harmonic content of an electrical system, making it easier to identify potential problems caused by harmonic distortion.

The KIMO HT4022 Professional Clamp Meter complies with the safety standard IEC/EN61010-1 and is classified as CAT III 600 V for reliable and safe measurements in an industrial environment. This is particularly useful for solving problems with non-linear loads and frequency-controlled motors, which are common in industrial environments.

With its versatile measurement capabilities and safety compliance, the KIMO HT4022 Professional Clamp Meter is an indispensable tool for electrical professionals seeking accurate and reliable measurements for a wide range of applications.

KIMO HT4022 Professional Clamp Meter applications

Here are some of the common applications where the KIMO HT4022 Professional Clamp Meter can be used:

Industrial Troubleshooting:

  • Non-Linear Loads
  • Frequency-Controlled Motors
  • Power Quality Analysis

Electrical System Maintenance:

  • Current Measurement in Single-Phase and Three-Phase Systems
  • Voltage Measurement (AC/DC)
  • Power Factor Analysis
  • Harmonic Analysis

Energy Auditing:

  • Active, Reactive, and Apparent Power Measurement
  • Energy Consumption Monitoring
  • Power Factor Optimization

Electrical Installations and Repairs:

  • Continuity Testing
  • Resistance Measurement
  • Phase Sequence Detection

HVAC System Analysis:

  • Current Measurement in HVAC Systems
  • Voltage Measurement in HVAC Systems
  • Power Factor Analysis in HVAC Systems

Equipment Testing and Troubleshooting:

  • Current Measurement in Equipment
  • Voltage Measurement in Equipment
  • Power Analysis in Equipment

Maintenance and Repair of Electrical Appliances:

  • Current Measurement in Appliances
  • Voltage Measurement in Appliances
  • Power Consumption Analysis in Appliances

Renewable Energy Systems:

  • Current Measurement in Solar PV Systems
  • Voltage Measurement in Wind Turbines
  • Power Monitoring in Renewable Energy Systems

more information

You may find helpful Related product in the link below:

KIMO HT4022 Professional Clamp Meter specifications:

AC Current Measurement:

  • Measurement Range: Up to 400A
  • True RMS (TRMS) Technology

AC/DC Voltage Measurement:

  • Measurement Range: Up to 600V
  • True RMS (TRMS) Technology

Frequency Measurement:

  • Frequency Range: Auto-ranging

Resistance Measurement:

  • Measurement Range: Auto-ranging

Continuity Testing:

  • Audible Continuity Check

Power Measurement:

  • Active Power Measurement
  • Reactive Power Measurement
  • Apparent Power Measurement
  • Power Factor (Cos φ) Measurement

Energy Measurement:

  • Energy Measurement for Balanced Single-Phase and Three-Phase Systems

Harmonic Analysis:

  • Absolute/Percentage Measurement of Voltage and Current Harmonic Components
  • Total Harmonic Distortion (THD%) Calculation

Phase Sequence Detection:

  • 1-Terminal Method

Safety Compliance:

  • IEC/EN61010-1 Standards
  • CAT III 600V Rating

Additional Features:

  • Large LCD Display with Backlight
  • Data Hold Function
  • Auto Power Off
  • Ergonomic Design
  • Easy-to-Use Controls
  • Battery Powered
