Megger Geolux GL 660-1 Cable Ground Fault Locator

Overview

The Megger Geolux GL 660-1 is a cable ground fault locator for ungrounded (IT) systems such as those used in railway installations, hospitals, power plants and other industrial facilities. These systems are monitored by earth-fault indicators to keep them running safely; when a fault is flagged, the GL 660-1 uses a low-frequency generator and a reader clamp to trace and pinpoint the faulty cable without interrupting supply.

Key features of the Megger Geolux GL 660-1

• Locates earth faults in ungrounded (IT) power, control and signal systems
• 5 Hz test generator injects a traceable signal onto the faulty circuit
• 100 mm compensated reader clamp with connection lead for tracing
• 12 mm compensated identification tongs for pinpointing individual cores
• Works without interrupting operation of the monitored system
• Suited to railway, hospital, power-plant and industrial IT networks

Geolux GL 660-1 earth fault location applications

The GL 660-1 is used to find earth (ground) faults on IT systems where an insulation-monitoring device has indicated a fault but not its location. By applying a 5 Hz signal and following it with the reader clamp and identification tongs, technicians can trace the fault to the specific cable and core, restoring the system’s protective isolation.

What’s in the box

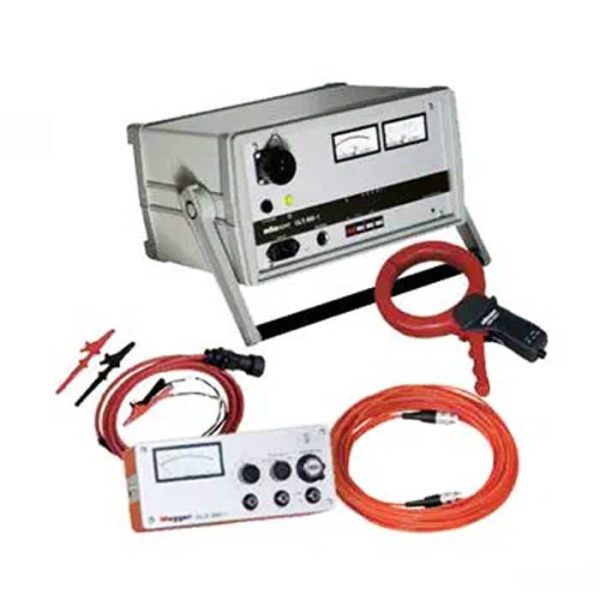

• Megger Geolux GL 660-1 ground fault locator (5 Hz generator)
• 100 mm compensated reader clamp with connection lead
• 12 mm compensated identification tongs
• Carry case and user guide

Why buy the Megger Geolux GL 660-1 from MME in the UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) supplies genuine Megger earth-fault location equipment across Dubai, Abu Dhabi and the wider UAE, with expert technical support and fast local delivery. Contact us for pricing, configuration and application advice.
