Megger MCT105 Cable Locator

Megger MCT105 Cable Locator — Trace Buried Cables & Pipes

The Megger MCT105 is a compact transmitter-and-receiver cable locator that detects and traces cables, conductors and metallic pipes on live or dead circuits. Ideal for electricians and maintenance teams, it combines route tracing, fault location and non-contact voltage detection in a lightweight kit that fits easily into a tool bag.

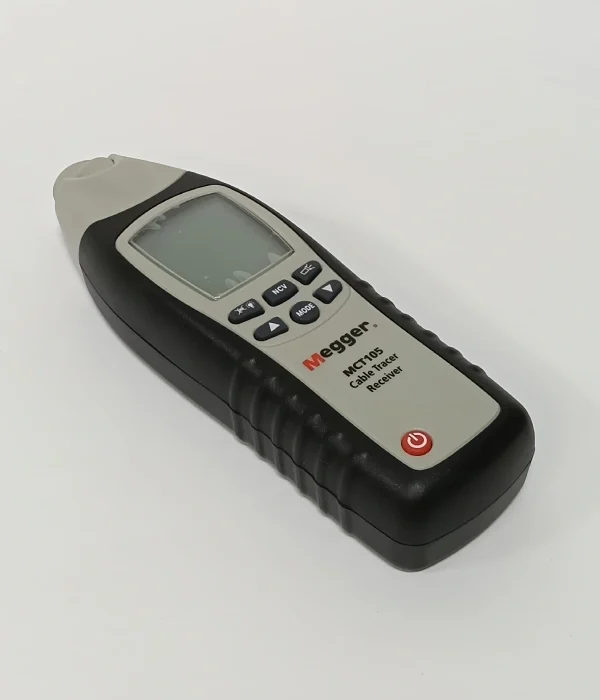

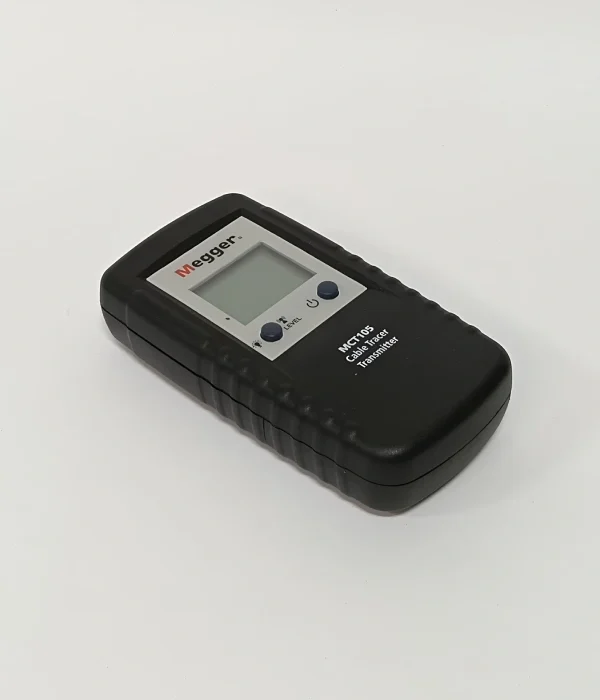

The MCT105 (part number 1013-836) is for electricians, building maintenance and facility teams. It finds out where a cable runs and what it feeds before you drill, dig or switch off the wrong circuit. Clip the transmitter to the conductor. Its display shows signal level, transmission code and any voltage on its terminals. The receiver then shows signal strength, the code and whether mains voltage is present, with a variable tone you can switch off. Sensitivity can be set automatically or by hand, both units turn themselves off, and both warn when the battery is low.

From Megger’s MCT105 datasheet and user guide:

• Finds faults behind walls and floors: breaks and short circuits in cables and in electric underfloor heating
• Identifies circuits: locates the fuse or breaker feeding a circuit in the distribution board
• Depth: about 0 to 2 m single-pole and 0 to 0.5 m double-pole, depending on the medium. Megger quotes buried-cable detection to 2.5 m. Voltage detection works to about 0.4 m.
• Environment: works from 0 to 40 °C. Transmitter 130 × 69 × 32 mm, receiver 192 × 61 × 37 mm.

The MCT105 is a low-voltage building and installation locator, not a utility power-cable fault locator. MME is an authorized Megger representative in the UAE. Browse our cable locators and the Megger range, or read what non-contact voltage (NCV) detection is. For faults on buried LV, MV and HV power cables, see the Megger TDR2050 for prelocation and the Megger digiPHONE+2 for pinpointing.

Megger MCT105 Key Features

What the MCT105 kit does for an electrician:

• Cable & pipe tracing — locates and follows buried cables, conductors and metallic pipes on live or dead circuits.
• Tracing depth to ~2 m — approximately 0–2 m in single-pole mode (0–0.5 m double-pole) for route tracing.
• 125 kHz transmitter — injects a clear tracing signal, with an LCD and five voltage ranges (12, 50, 120, 230 and 400 V), or a signal on dead and isolated conductors.
• Non-contact voltage detection — detects external voltage up to 400 V AC/DC to depths of about 0.4 m.
• Fault & circuit identification — helps find breaks and shorts and identify individual circuits.
• Built-in torch — integrated receiver torch for working in dark or confined areas.
• Lightweight & portable — transmitter 130 g, receiver 180 g; runs on 2 × 9 V PP3 batteries.
• CAT III 300 V safety — rated to IEC EN 61010-1 CAT III 300 V.

Megger MCT105 Applications

The MCT105 is ideal for tracing buried cables and pipes, locating cable breaks and shorts, identifying circuits at the distribution board, and non-contact voltage detection — on domestic, commercial and light-industrial installations.

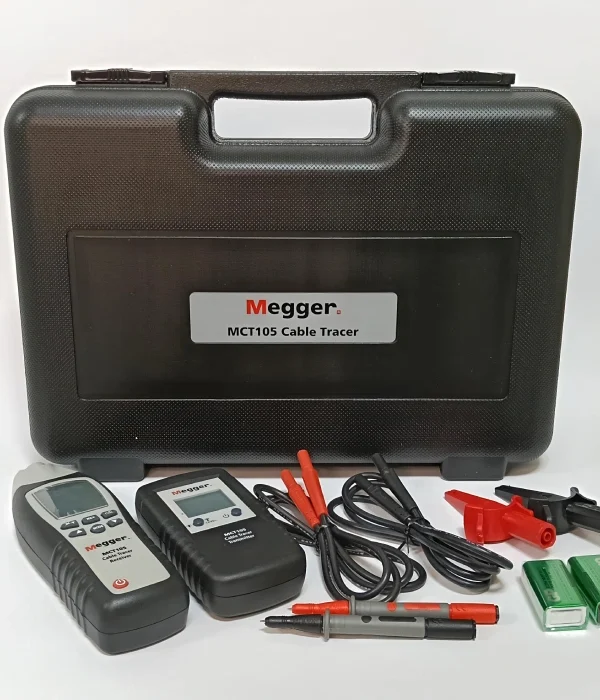

What’s in the Megger MCT105 Box

What comes with the MCT105 (1013-836):

• Megger MCT105 transmitter and receiver
• Test leads and crocodile clips
• Test probes
• Protective carry case

Megger MCT105 questions

What electricians ask about the MCT105:

• Does it work on live circuits? Yes. It traces live or dead cables. The transmitter works on 12, 50, 120, 230 and 400 V circuits, and the kit is rated CAT III 300 V.
• Can it find which breaker feeds a socket? Yes. Megger lists fuse and breaker identification in the distribution board as a core function.
• Will it trace water pipes? Yes. Megger lists metal water and heating pipes.
• What batteries does it use? 9 V PP3 batteries (2 × 9 V PP3 for the kit).

Why Buy the Megger MCT105 from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is your trusted supplier of genuine Megger test and measurement equipment in the UAE. We offer competitive pricing and knowledgeable after-sales support across Dubai, Abu Dhabi and the wider UAE. Contact us on WhatsApp for the latest price and availability.

Megger Mct105 Datasheet PdfPDF Download the Megger MCT105 datasheet (PDF)PDF.
