Megger TDR2050 Two-Channel Cable Fault Locator

Buy the Megger TDR2050 Two-Channel Cable Fault Locator in the UAE from MME, an authorized Megger representative in Dubai. See the full Megger range on our Megger brand page.

Megger TDR2050 Overview

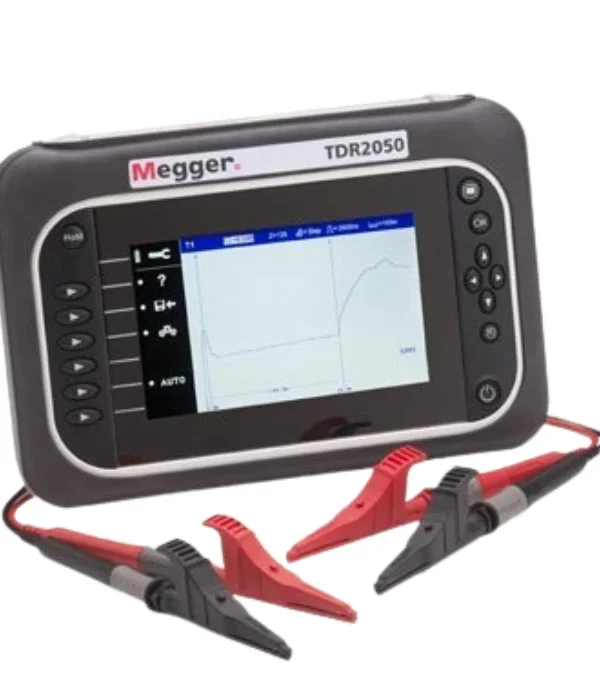

The Megger TDR2050 is the most advanced instrument in the TDR2000 dual-channel time domain reflectometer range. It locates faults on paired metallic cables – opens, shorts, joints, water ingress and other impedance changes – and its higher 600 V CAT IV input protection makes it suitable for connecting to live power cables, an important advantage for power distribution technicians.

As well as the dual-channel comparison, colour WVGA display and 20 km range of the TDR2000 range, the TDR2050 adds Step TDR (for higher-resolution near-end analysis), Distance-Dependent Gain (to keep distant reflections clear) and FindEnd (to automatically identify the cable end). A built-in power-blocking filter, 100 trace memories, USB download and TraceXpert software round out a powerful, self-contained fault-finding tool.

The Megger TDR2050 is for power distribution technicians, cable jointers and electrical contractors who need the distance to an open, short, joint or water ingress on power cables, including circuits that may still be energised. It is the only model in Megger’s TDR2000 series rated 600 V CAT IV with a built-in input protection filter; the TDR2000/3 and TDR2010 are rated 150 V CAT IV and meant for de-energised systems. Megger says fused leads must be used if the voltage between terminals could exceed 300 V, and the TDR2050 comes with retractable-sheath fused leads.

How the extra functions help on site: Step TDR holds the signal at full strength until a disturbance is detected, so near-end faults hidden in a pulse TDR’s dead zone show up. Distance-Dependent Gain (ranges of 1000 m and above, in 0.5 dB steps) lifts reflections from the far end. AutoFind sets range and gain and moves the cursor to the first major event, then the next; FindEnd finds the cable end for a quick length check. Trace tagging saves a 32-character circuit ID with each trace.

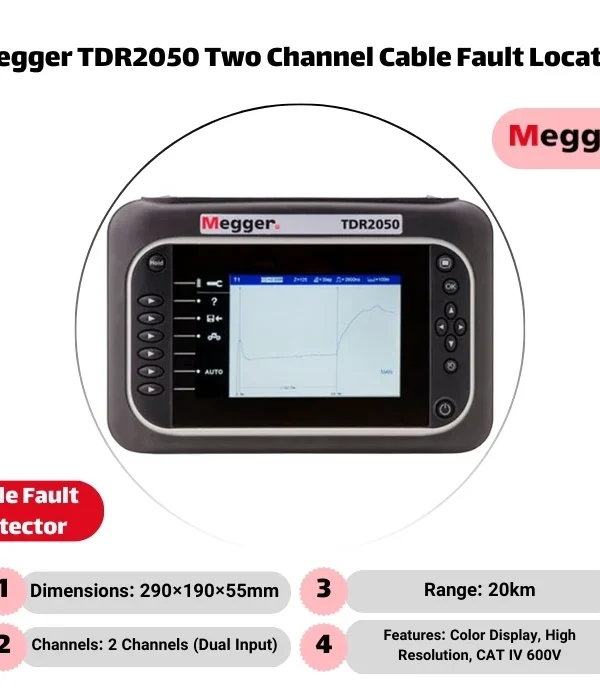

Megger’s datasheet figures: ranges from 10 m to 20 km, accuracy ±1% of range ±1 pixel at 0.67 VF, resolution down to 0.1 m, output pulse up to 20 V peak to peak, 2 ns minimum pulse width, velocity factor 0.2 to 0.99 in 0.01 steps, and output impedance of 25, 50, 75, 100 or 140 Ω plus AUTO. The 800 × 480 colour display has eight colour schemes. There are 100 trace memories with USB and TraceXpert. The Li-ion battery lasts about 12 hours and charges in 6 hours, and auto power-off is 1, 5 or 10 minutes or never. It is IP54, works from −15 to +50 °C, measures 290 × 190 × 55 mm and weighs 1.7 kg. Order codes run from 1005-021 (UK) to 1005-024 (INT).

MME is an authorized Megger representative in the UAE. See the Megger range and our cable fault detectors. For the same platform without the 600 V rating, see the Megger TDR2010 or the TDR2000/3; for a handheld unit, the Megger TDR1000/3. When a fault needs arc reflection and surge, see the Megger M-THUMP5 or the Megger EZ-Thump 12 kV. Read our Megger TDR2050 review.

Megger TDR2050 Key Features

What the TDR2050 gives a cable fault crew:

• Top-of-range dual-channel TDR with 600 V CAT IV protection
• Connect to live power cables safely (600 V CAT IV)
• Step TDR, Distance-Dependent Gain and FindEnd functions
• Range 10 m to 20 km; 0.1 m resolution; colour WVGA display
• Dual-trace and dual-cursor comparison; built-in power-blocking filter
• Selectable impedance (25/50/75/100/140 Ω + AUTO); VOP 0.2–0.99
• 100 trace memories; USB, TraceXpert; Li-Ion (~12 h); IP54

Megger TDR2050 Applications

Where the TDR2050 is used:

• Fault-finding on live power cables (600 V CAT IV)
• Telecom and control cable diagnostics
• Comparing faulty and healthy pairs
• Field cable diagnostics and record keeping

What’s in the Megger TDR2050 Box

What comes with the TDR2050:

• Megger TDR2050 Two-Channel Cable Fault Locator
• Retractable-sheath fused test leads, 2 pairs of 1.5 m (for live use)
• Li-ion battery and AC-DC charger (1003-352)
• Download kit (1003-353) with USB lead and TraceXpert software
• Carry case (1003-217) and user guide CD

Megger TDR2050 questions

What cable crews ask before ordering:

• Can it be connected to a live cable? Megger designed it for use on energised systems up to its 600 V CAT IV rating, with the supplied fused leads.
• What does it add over the TDR2010? The 600 V CAT IV rating, Step TDR, Distance-Dependent Gain and FindEnd. It has no F connectors.
• Which impedances can I select? 25, 50, 75, 100 and 140 Ω, or AUTO to match the cable.

Why Buy the Megger TDR2050 from MME in UAE

MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Megger test and measurement equipment across the UAE and wider Middle East. We offer genuine products, competitive pricing, and knowledgeable local support to help you choose the right instrument for your application. For full technical details, download the datasheet below.

Tdr2050 Datasheet PdfPDF
