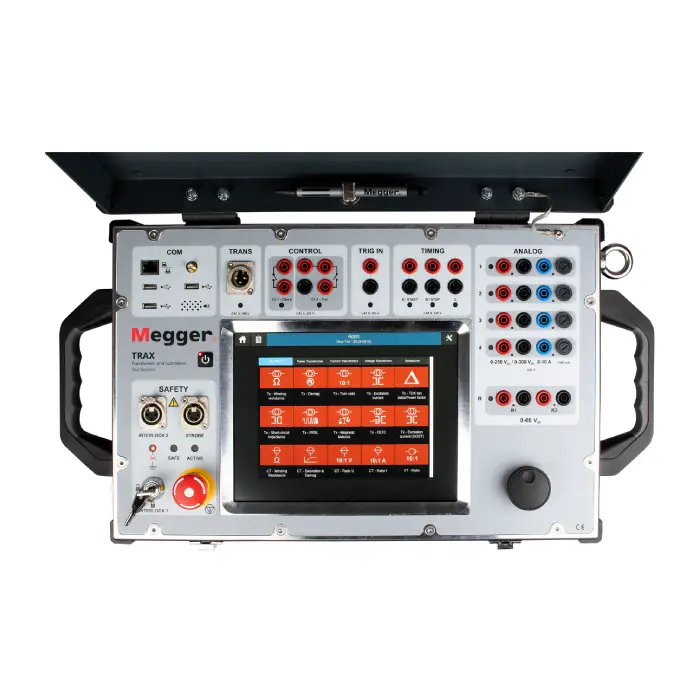

Megger TRAX 219 Transformer and Substation Test System
Brand:
Megger
SKU:
125599
The Megger TRAX 219 is a multifunction transformer and substation test system combining many instruments in one, performing winding resistance, turns ratio, tan delta/power factor, excitation current, leakage reactance, demagnetization and more; the 219 is the computer-controlled version without an internal screen.
- Secure Purchase
- Fast Delivery
- Genuine Guarantee
- Online Payment
Description
Overview
The Megger TRAX 219 is a multifunction transformer and substation test system that brings the capability of many separate instruments together in a single unit. Designed for power, distribution and instrument transformer testing as well as general substation apparatus, it performs winding resistance, turns ratio, excitation current, leakage reactance, demagnetization, tan delta/power factor and more, greatly reducing the number of instruments an engineer must carry and the number of connections that must be made on site.
The TRAX 219 is the computer-controlled member of the TRAX family: it delivers the same measurement engine as the TRAX 220 — up to 200 A AC winding-resistance current and variable-frequency capabilities — but is operated remotely from an external PC rather than from a built-in touchscreen. Its variable-frequency source and highly accurate measurement system support temperature-corrected tan delta and power-factor testing, and optional software packages extend it to tap-changer analysis, frequency response of stray losses, magnetic balance, instrument-transformer testing and more.
Key Features
- Multifunction system replacing many separate transformer and substation test instruments.
- Winding resistance up to 100 A single-phase (16 A three-phase) with adaptive demagnetization.
- Turns-ratio (TTR) testing at up to 250 V and excitation-current measurement.
- Variable-frequency tan delta / power factor testing (5–505 Hz) with temperature correction.
- Leakage reactance / short-circuit impedance and extended tests via optional software.
- Computer-controlled operation from an external PC (no internal screen on the 219).
- High measurement accuracy (0.05% of reading + 0.05% FS on external AC/DC).
Applications
- Routine and diagnostic testing of power, distribution and instrument transformers.
- Winding resistance, turns ratio and excitation-current measurement in one connection.
- Tan delta / power factor insulation assessment at multiple frequencies.
- Substation apparatus and general high-voltage asset testing.
What’s in the Box
- TRAX 219 test system (remote-controlled, no internal screen).
- TRAX Control PC software.
- Measurement and current cables as configured.
- Mains lead, transport case and user documentation.
Exact contents and optional software packages depend on the order; contact MME to confirm your configuration.
Why buy from MME in UAE
MOHAMMAD MAHDI Electronics Trading LLC (MME) is a trusted supplier of Megger test and measurement equipment across the UAE and the wider Gulf region. We offer genuine Megger products, competitive pricing, expert application support and reliable after-sales service to keep your transformer testing programme running smoothly.
Download the Megger TRAX datasheetSpecifications
Specifications
| Megger TRAX 219 – Specifications | |
|---|---|
| General | |
| CE-Marking | EMC IEC 61326-1, LVD IEC 61010-1:2010 |
| Mains Input | 100–240 V, 50/60 Hz (±10%) |
| Current Input | ≤ 16 A continuous, up to 30 A < 60 s |
| Display | Size: 10.4” | Resolution: 1024 x 768 | Type: TFT Touch | Contrast: 1000:1 | Brightness: 1000 nits |
| Dimensions | 475 x 315 x 330 mm (excluding handles) |
| Weight | TRAX 219: 25 kg | TRAX 220: 26 kg | TRAX 279: 29 kg | TRAX 280: 30 kg |
| Environment | |
| Application Field | For use in high-voltage substations and industrial environments |
| Operating Temperature | -10°C to +55°C (14°F to +131°F) |
| Storage Temperature | -20°C to +70°C (-4°F to +158°F) |
| Humidity | < 90% RH, non-condensing |
| Functions & Calculated Parameters | |
| Arithmetic | +, -, ×, ÷ |
| Power | P, VA, Q, S |
| Resistance | R (DC) |
| Impedance | Z, Xp, Xs, Rs, Rp, Ls, Lp, Cs, Cp |
| Phase | Degrees |
| Outputs | |
| General Current | 4 x 0–10 A AC/DC |
| General Voltage | 4 x 0–250 V AC, 4 x 0–350 V DC |
| Low Voltage | 2 x 0–60 V AC/DC (for resistance measurements) |
| Transducer | 0–5 V AC, 0–50 V DC |
| Binary Input/Timing | Max 250 V, 3 x 0–10000 s (contact or voltage sense) |
| Trigger Input | Max 250 V (contact or voltage sense) |
| Inputs | |
| AC High Voltage | 0–2200 V AC / 1 A (1 min), 0.2 A (>2 h) |
| AC Low Voltage | 0–250 V AC / 10 A (1 min), 20 A (max 10 s), 2.5 A (>2 h) |
| AC High Current | 0–200 A AC (TRAX 219/220), 0–800 A AC (TRAX 279/280) |
| DC Current | 0–16 A DC continuous, up to 0–100 A DC (2 min) |
| DC Voltage | 0–300 V DC (up to 10 A, 1 min) |
| Binary Output | 250 V / 35 A max, 2 x 0–10000 s (OLTC & CB operations) |
| High Voltage Output | 0–12 kV / 500 mA (30 s), 100 mA continuous (with TDX) |
| Very High Current | 0–2000 A AC (with TCX accessory) |
