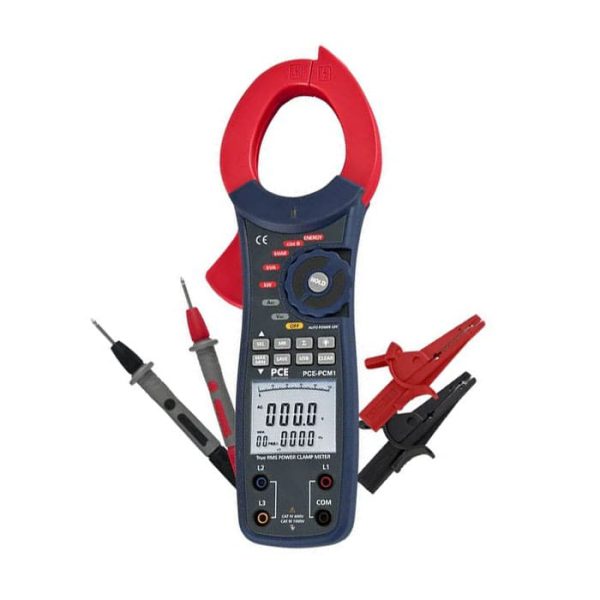

Three-Phase Power Meter PCE-PCM 1

PCE-PCM 1 is a multipurpose three- / 3- phase-power meter or power analyzer used to measure alternating current (AC), voltage (TRMS) and frequency to determine active (kW), apparent (kVA) and reactive (kVAR) power as well as active energy (kWh) consumption. Both the phase angle and the power factor (cos φ) are shown on the handheld power meter’s large and easy-to-read backlit display.

The power analyzer aids in evaluating power and energy use in machines and electrical installations. The device’s compact design allows for measurements to be taken in the field and on the go. Up to 99 measurement values can be saved to the internal memory of the power meter. The meter features a USB port, allowing for quick and easy data transfer to a PC for detailed analysis.

– Active power (kW)
– Apparent power (kVA)
– Reactive power (kVAR)
– Power factor (cos φ)
– Phase angle
– Active energy counter (kWh)
– Auto range selection
– Voltage
– Current (AC)
– True RMS
– Frequency
– Internal memory saves up to 99 measurement values
– Minimum / maximum values
– Data hold
– Includes 2-year warranty against manufacturer defects
– Optional ISO calibration certificate sold separately – see accessories

Three-Phase Power Meter PCE-PCM 1 Specifications:

• Voltage (AC / TRMS, 50 … 200 Hz) 100 / 400 / 750V, ± (1.2% + 5 digits)
• Current (AC / TRMS, 50 … 200 Hz) 40 / 100 / 400 / 1000 A, ± (2.0% + 5 digits)
• Active power measurement 4 … 750 kW, ± (3.0% + 5 digits)
• Apparent power measurement 4 … 750 kVA, ± (3.0% + 5 digits)
• Reactive power measurement 4 … 750 kVAr, ± (3.0% + 5 digits)
• Active energy (kWh counter) 1 … 9999 kW, ± (3.0% + 2 digits)
• Power factor (cos φ)
• (min. 10 A / 45V) 0.3 … 1 inductive or capacitive / ± (0.02% + 2 digits)
• Phase angle 0 … 90º, ± 2.0º
• Frequency 50 … 200 Hz, ± (0.5% + 5 digits)
• Internal memory 99 measurement values
• Display 9999 values with bar graph and backlight
• Power supply 1 x 9V battery
• Dimensions 105 x 47 x 294 mm / 4.1 x 1.8 x 11.5 in
• Weight 495 g / 1.1 lbs
• Overvoltage category CAT IV 600 V / CAT III 1000 V
