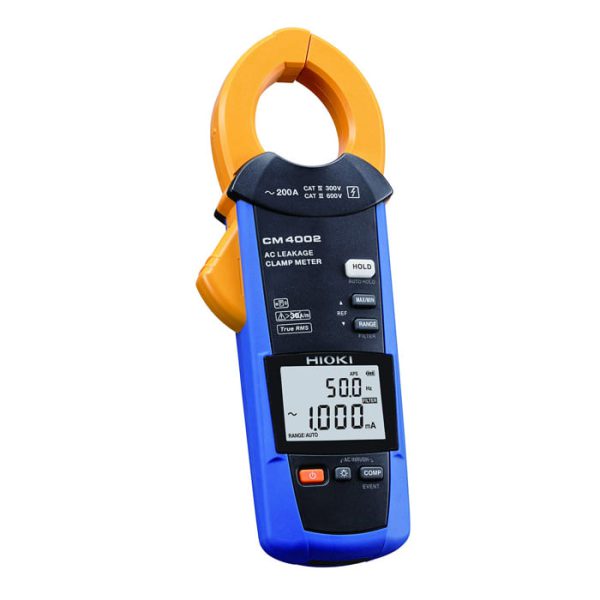

AC LEAKAGE CLAMP METER CM4002

Hioki TRUE RMS clamp meter model CM4002 is from the category of AC clamps that can measure current up to 200 amps. This clamp has a wide measuring range and through sensors with a new design, has the ability to measure leakage current with high accuracy and load current. Updated features of this product include the transfer of measured data to smartphones or tablets using the free GENNECT Cross software as an Excel file.

At MMElectronics, we strive to provide exceptional customer service. Our expert team is ready to assist you in selecting the right current clamp meter for your application.

Hioki 4002

A newly developed sensor enables the detection of the smallest leakage currents and offers a core diameter of 40 mm. Conforms to IEC/EN 61557-13, an international standard for leakage current clamps. Solve GFCI and RCD problems quickly. Easily transfer measurement data to your smartphone or tablet with HIOKI’s free GENNECT Cross app (Bluetooth adapter Z3210 required) CAT IV 300 V, CAT III 600 V

Key Features of Hioki Leakage Current Clamp Meter

Easily transfer measurement data to your smartphone or tablet by using the free app GENNECT Cross or to an Excel® file (Wireless Adapter Z3210 is necessary)
Detect minuscule leakage currents with a newly designed sensor (Core jaw diameter up to 40 mm)
Broad measurement range extending from leakage currents to load currents
Complies with the performance standard set forth in IEC/EN 61557-13, an international standard on leak clamp meters
Solve GFCI and RCD problems quickly
Speed up pass/fail judgments with the built-in comparator function

Hioki cm4002 datasheet

the datasheet included accurate information about cm 4002 as well. you can download the hioki cm 4002 datasheet directly from our site.

AC LEAKAGE CLAMP METER CM4002 Specification:

AC Current range: 6.000 mA to 200.0 A, True RMS
Frequency range: 15.0 Hz to 2000 Hz
Output function: N/A
Power supply: – AA-size alkaline battery (LR6) × 2
Dimensions and mass: 64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g

Related Products

You can check our other hioki clamp meters like Hioki cm4003, and cm4001 on our website.

Rated 5 out of 5

1 review

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

1 review for HIOKI AC LEAKAGE CLAMP METER CM4002

Clear filters

Angela – June 19, 2022

Rated 5 out of 5
This meter is good quality

0

0

Add a review

You must be logged in to post a review.

Brand

Hioki

Hioki is a renowned Japanese brand known for its expertise in developing and manufacturing electrical measuring instruments. The company, Hioki E.E. Corporation, was established in 1935, and since then, it has committed itself to providing innovative solutions in the field of electrical measurement.

Hioki's product range is extensive, including devices such as digital multimeters, clamp meters, power meters, and oscilloscopes. These instruments are vital for various applications in research and development, maintenance, and production testing across industries like electronics, energy, and automotive. One of the key strengths of Hioki is its focus on precision and reliability, traits that are crucial in measurement instruments. Hioki’s products are designed to offer accuracy and durability, which make them preferred choices among professionals worldwide.

Moreover, Hioki emphasizes technological innovation and quality. The company invests significantly in research and development to keep up with evolving technological trends and to ensure their products meet the highest standards. This commitment to quality is reflected in their adherence to international certifications and standards. Hioki also values environmental sustainability, integrating eco-friendly practices in their operations and product designs. This includes efforts to reduce the environmental impact of their manufacturing processes and to design products that are energy efficient.

DATA sheet

–

Specification

Technical Specifications

AC Current Range	6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS
Basic Accuracy (45 Hz – 400 Hz)	±1.0% rdg ±5 dgt (6.000 mA to 6.000 A), ±1.5% rdg ±5 dgt (60.00 A, 200.0 A)
Basic Accuracy (15 Hz – 45 Hz, 400 Hz – 2 kHz)	±2.0% rdg ±5 dgt
Defined Accuracy Range	0.060 mA to 200.0 A
AC Voltage Range	N/A
Frequency Range	15.0 Hz to 2000 Hz
Crest Factor	3 (other than 200.0 A range), 1.5 (200.0 A range)
Filter Function	Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB)
Output Function	N/A
Harmonic Levels	[With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio *Harmonics can be displayed with our free app GENNECT Cross.
Other Functions	Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement
Display	Display refresh rate: 5 times/s
Power Supply	AA-size alkaline battery (LR6) × 2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications)

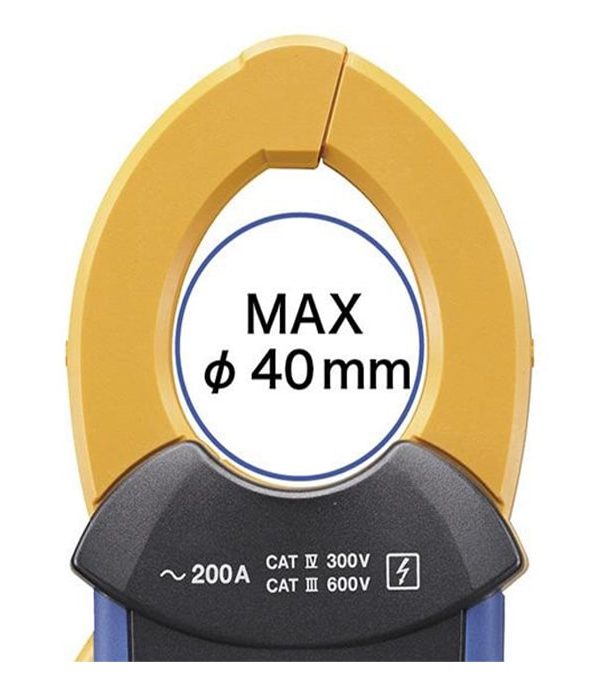

Core Jaw Diameter	φ 40 mm (1.57 in.)
Dimensions and Mass	64 mm (2.52 in) W × 233 mm (9.17 in) H × 37 mm (1.46 in) D, 400 g (14.1 oz.)
Included Accessories	Carrying case C0203 × 1, Instruction manual × 1, Operating Precautions × 1, AA-size alkaline battery (LR6) × 2
