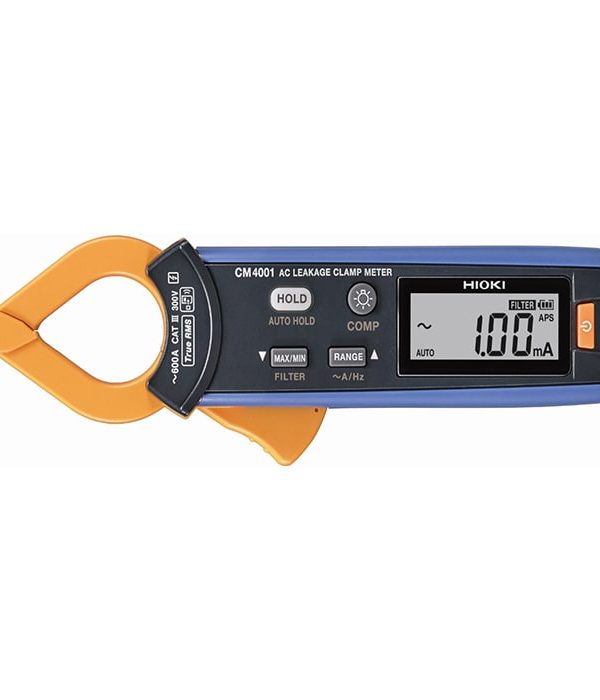

Hioki CM4001 AC Leakage Clamp Meter
Short Description:
Hioki CM4001 Key Features:
- Easily transfer measurement data to your smartphone or tablet
- Slim jaws let you work with ease
- Measure everything from leakage to load
- Find issues faster with the comparator function
- Identify intermittent GFCI and RCD trips to prevent unplanned equipment downtime by testing for earth leakage current
Product purchase
AED 1,469 (excl.VAT)
18
People watching this product now!
Terms of sending goods ›
cm4001 hioki

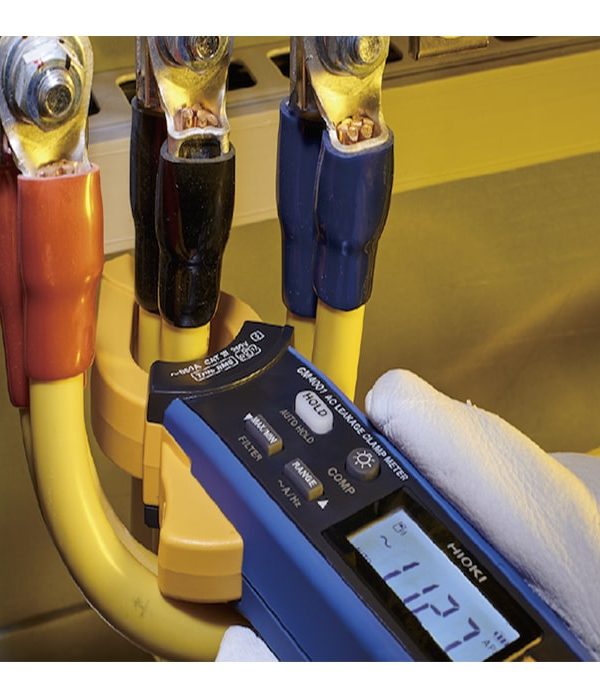

Use the Hioki CM4001 to easily clamp within crowded cables to reduce work time and improve safety. With guaranteed accuracy from 0.60 mA to 600.0 A, the CM4001 provides a one-stop solution for a variety of applications. A built-in comparator function also helps you find issues much faster.
Can a normal clamp meter measure earth leakage?
Hioki leakage current clamp meter is most commonly used to measure the earth fault of RCDs to minimize the risk of them tripping, which of course is a major concern when RCDs are viewed as an effective safety tool. Certain regulations state that the total leakage current must not exceed 30% of the RCD nominal residual current.
AC LEAKAGE CLAMP
User-Friendly Features for Maximum Efficiency
The Hioki CM 4001 is equipped with a compact, lightweight design and intuitive controls, ensuring ease of use for professionals of all experience levels. The bright backlit display allows for clear visibility in any lighting condition, while the data hold function freezes readings for convenient analysis. With its ergonomic build, this clamp meter is easy to handle, even during extended testing sessions.
- Compact and Lightweight: Designed for portability and effortless handling.
- Backlit Display: Ensures clear visibility in dimly lit environments.
- Data Hold Function: Retain readings for detailed diagnostics.
Airplane Mode is enabled. oEmbed blocked for https://youtu.be/P3q5hdvJT6o.
datasheet
–
Specifications
| Specification Category | Details |
|---|---|
| AC Current Range | 60.00 mA/ 600.0 mA/ 6.000 A/ 60.00 A/ 600.0 A, 5 ranges (40 Hz to 1 kHz, True RMS) Basic accuracy (45-66 Hz): ±1.5% rdg ±5 dgt (60.00 mA to 6.000 A), ±2.5% rdg ±5 dgt (60.00 A to 600.0 A) Guaranteed accuracy: from 0.60 mA to 600.0A |
| AC Voltage Range | N/A |
| Frequency Range | 40.0 Hz to 999.9 Hz |
| Crest Factor | 4.5 (4000 counts or less) 3 (more than 4000 counts, 6000 counts or less) |
| Filter Function | Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB) |
| Harmonic Levels | [With Z3210 installed] Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio *Harmonics can be displayed with our free app GENNECT Cross. |
| Other Functions | Comparator function, record Max/Min/Avg value, backlight, data hold, auto power off, AC inrush function |
| Display | Display refresh rate: 5 times/s |
| Power Supply | LR03 alkaline battery × 1; Continuous operating time: 32 hr. (without Z3210 installed), 16 hr. (with Z3210 installed and using wireless communications) |
| Core Jaw Diameter | φ 24 mm (0.94 in) |
| Dimensions and Mass | 37 mm (1.46 in) W × 160 mm (6.30 in) H × 27 mm (1.06 in) D, 115 g (4.1 oz) |
