What is the maximum current measurement of the Fluke 325?

The Fluke 325 can measure AC/DC current up to 400A, making it suitable for a wide range of electrical applications.

Does the Fluke 325 measure DC current?

Yes, unlike the Fluke 323 and 324, the Fluke 325 can measure both AC and DC current up to 400A.

Buy Fluke 325 True Rms Clamp Meter At Best Price

Click to enlarge

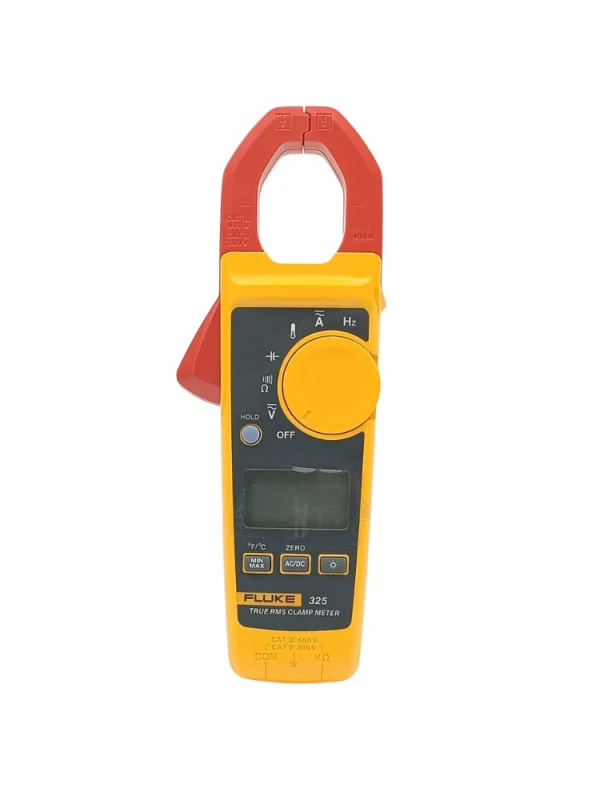

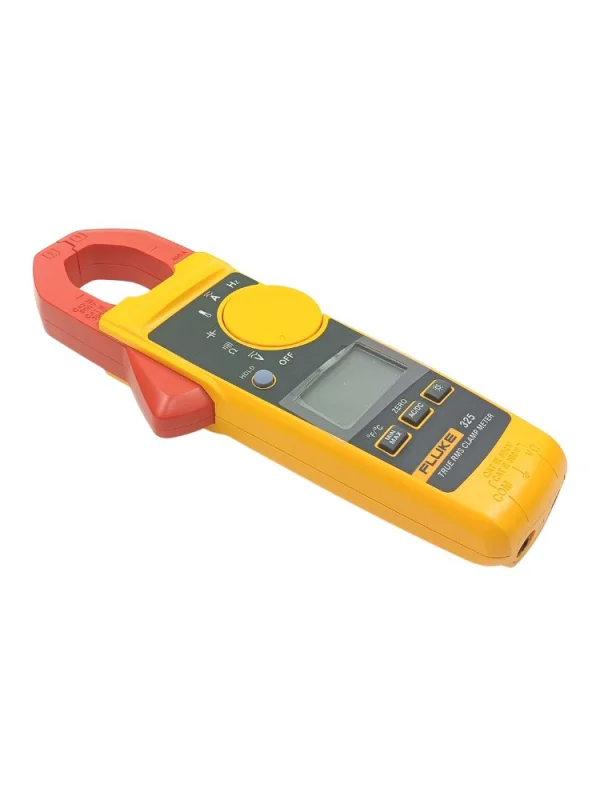

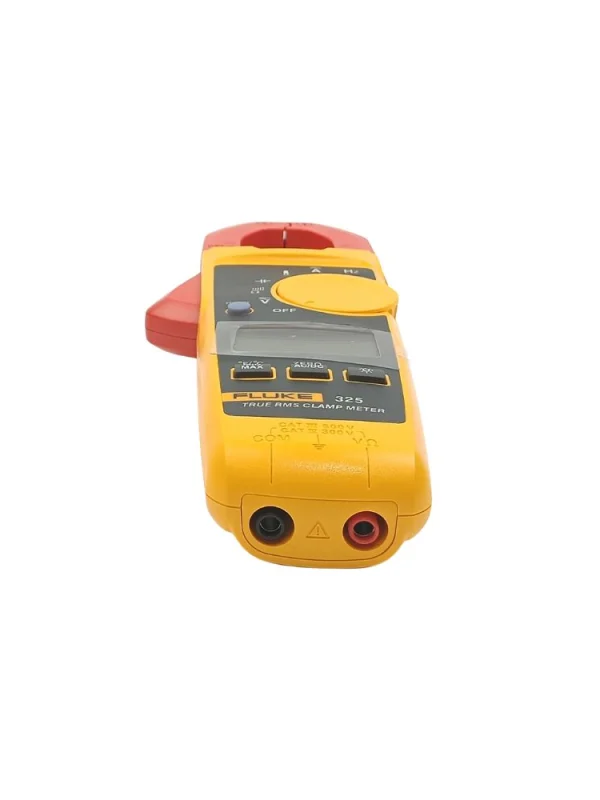

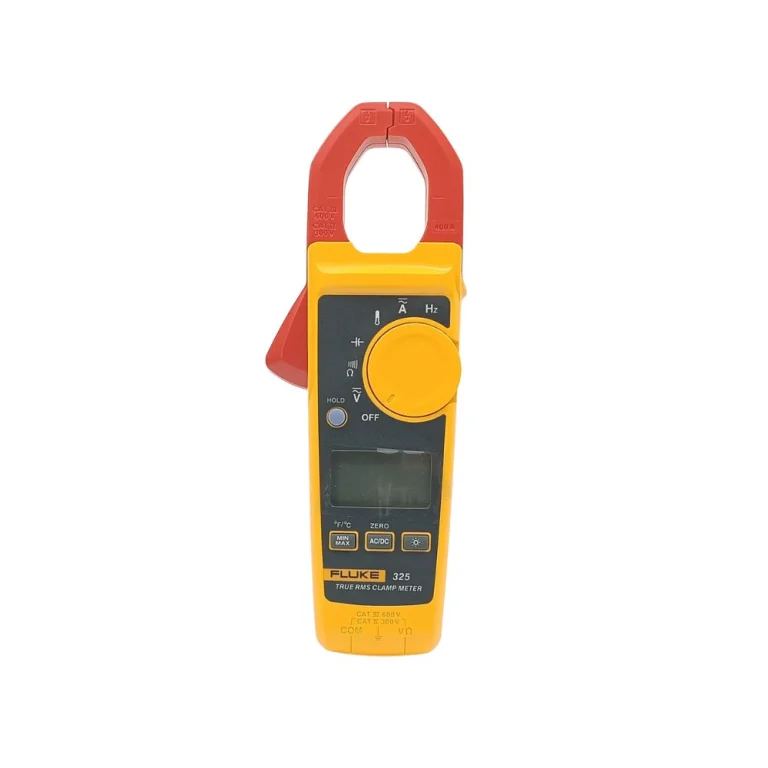

Fluke 325 True RMS Clamp Meter

Name: Fluke 325 True RMS Clamp Meter | AC/DC current up to 400A
Brand: american-brands
SKU: 147
Rating: 4.58 (13 reviews)

Rated 4.58 out of 5 based on 12 customer ratings

(13 customer reviews)

Short Description:

Fluke 325 True RMS Clamp Meter Key features :

True-rms AC/DC current, voltage, temperature, frequency

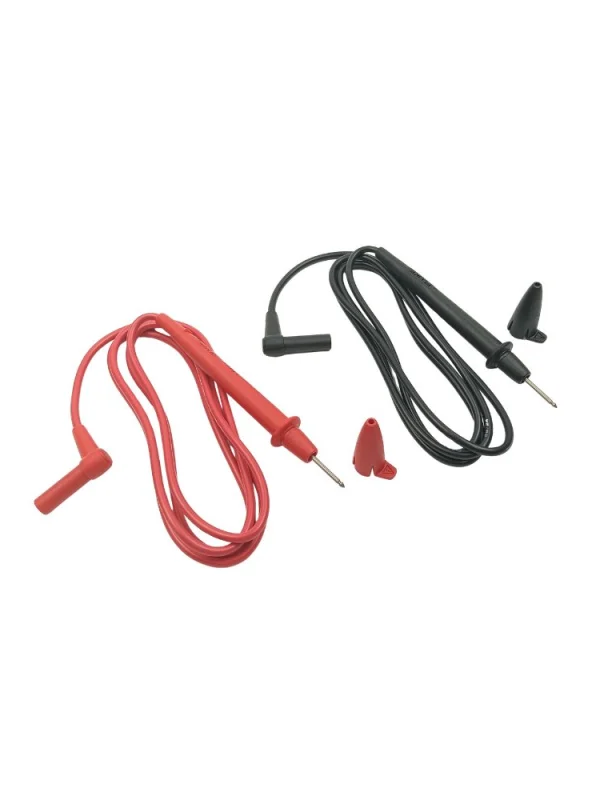

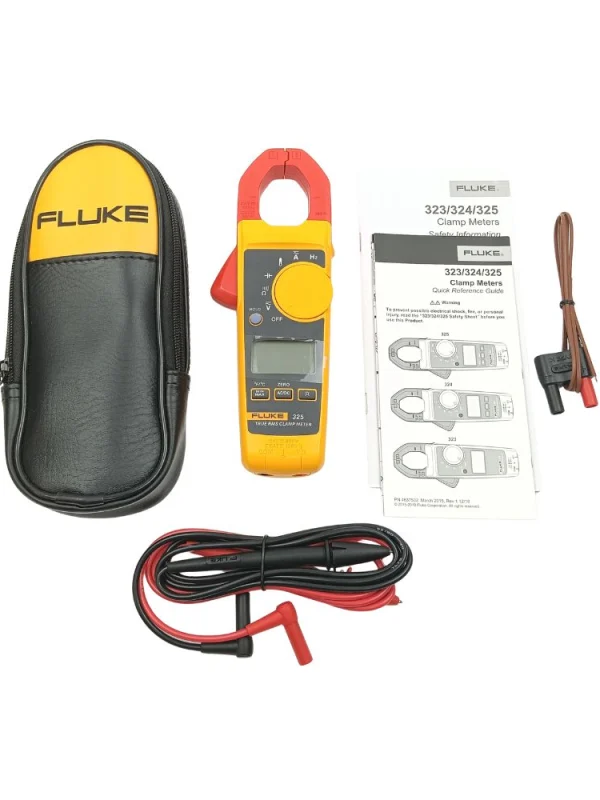

Clamp meter, test leads, K-type thermocouple and soft case
Versatile tool performs most front-line measurement tasks

Product purchase

SKU: 147

Brand:american-brands

Call for Best Price 00971(04) 447 6031 00971(04) 344 9868

Add to compare

17 People watching this product now!

Terms of sending goods ›

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE

Description

Fluke 325 Clamp Meter

The Fluke 325 True-RMS Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-RMS AC current and voltage on non-linear loads, the 325 measures:

DC current
DC voltage
Temperature
Frequency

You’ll carry fewer tools in your bag and get more work done.

The 325 provides a robust combination of measurement functions in a tool that is reliable, user-friendly, and cost-effective. This clamp meter offers True-RMS AC voltage and current measurements for non-linear signals. With CAT III 600 V and CAT IV 300 V safety ratings, the clamp meter is also capable of measuring:

Measures AC/DC current up to 400 A through the jaw
AC/DC voltage to 600 V using test leads
Measures frequency from 5 Hz to 500 Hz; resistance to 40 kΩ

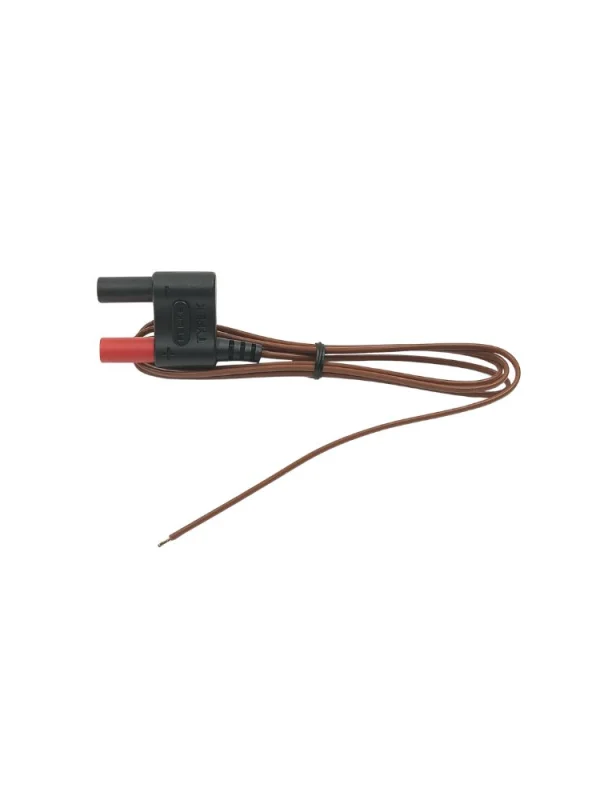

Measures temperature from -10 °C to 400 °C with included K-type thermocouple
Min/Max function records important values

Comparison

To compare a Fluke clamp meter price with other clamp meters on our website, you can use the “Compare” button on our site. It allows you to compare products based on price, technical specifications, key features, and more. You can compare products side by side to make an informed decision.

Additional information

AC voltage range/resolution/accuracy	600.0 V/1.5% ± 5 digits
DC voltage range/resolution/Accuracy	600.0 V/1.0% ± 5 digits
AC current range/resolution/Accuracy	40.00 A/2% ± 5 digits , 400.0 A/2.5% ± 5 digits
DC current range/resolution/Accuracy	40.00 A/2.0% ± 5 digits , 400.0 A/2.0% ± 5 digits
Resistance Range/resolution/Accuracy	40.00 kΩ/1.0% ± 5 digits , 400.0 Ω/1.0% ± 5 digits , 4000 Ω/1.0% ± 5 digits
Capacitance Range/resolution/Accuracy	0 to 100.0 μF , 100μF to 1000 μF
Frequency range/resolution/Accuracy	5.0 Hz to 500.0 Hz
Jaw Diameter	30 mm
Dimensions	207 x 75 x 34
Weight	283g
Data Hold	√
MIN - MAX	√
True RMS	√
Backlight	√

DataSheet

UserManual

Safetysheet

specifications

Measurement	Range	Accuracy
AC current	40.00 A / 400.0 A	2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz)
DC current	40.00 A / 400.0 A	2% ± 5 digits
AC voltage	600.0 V	1.5% ± 5 digits
DC voltage	600.0 V	1.0% ± 5 digits
Resistance	400.0 Ω / 4000 Ω / 40.00 kΩ	1.0% ± 5 digits
Continuity	≤ 30 Ω
Capacitance	0 to 100.0 μF / 100μF to 1000 μF
Frequency	5.0 Hz to 500.0 Hz
AC response	True-RMS
Backlight	Yes
Data hold	Yes
Contact temperature	-10.0°C to 400.0°C (14.0°F to 752.0°F)
Min/Max	Yes

Physical Specifications

Specification	Details
Size (H x W x D)	207 x 75 x 34 mm
Max wire diameter	30 mm (600 MCM)
Weight	283 g

Safety Ratings

Category	Rating
Category rating	CAT III 600 V CAT IV 300 V
