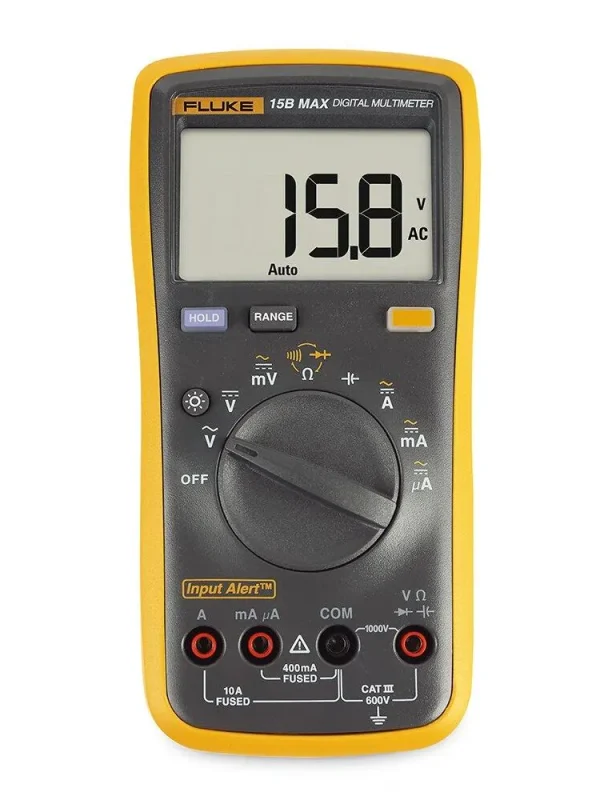

Fluke 15B MAX digital multimeter, view 1

Fluke 15B MAX Economical Digital Multimeter

Brand: fluke

SKU: fluke-15b-max

An economical Fluke multimeter for everyday electrical checks: 1000 V AC/DC, 10 A, resistance, capacitance, and diode test, with a misoperation alarm.

Datasheet PDF

Manual PDF

Secure Purchase
Fast Delivery
Genuine Guarantee
Online Payment

Call for price

Ask on WhatsApp

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

Description

Fluke 15B MAX: a dependable everyday multimeter

The Fluke 15B MAX is an economical digital multimeter for electricians, technicians, and maintenance staff who need dependable readings without paying for features they won’t use. It measures AC and DC voltage up to 1000 V, AC and DC current up to 10 A (including µA and mA ranges), resistance up to 40 MΩ, capacitance, and diode test. A misoperation alarm warns you when the leads are in the wrong input, and the supplied test leads have fine tips for tight terminals. Contractors in the UAE often hand the 15B MAX to apprentices and site crews: it covers routine checks on sockets, DBs, and control circuits, and it’s affordable to issue one per technician.

Compare it with other digital multimeters, and read our Fluke 15B technical review for real-world testing notes.

The Fluke 15B MAX is a reliable and accurate digital multimeter designed for various applications. With its new upgraded 15B+ model, this multimeter offers improved performance and added safety features.

Whether you’re a professional electrician or a DIY enthusiast, the Fluke 15B MAX is an excellent choice for your measurement needs. Its test leads with fine tips ensure precise measurements, and the misoperation alarm provides added safety.

Fluke 15B MAX Key Features

AC/DC voltage: 600.0 mV to 1000 V (DC basic accuracy 0.5 % + 3)
AC/DC current: 400.0 µA to 10.00 A (1.5 % + 3)
Resistance: 400.0 Ω to 40.00 MΩ; capacitance: 40.00 nF to 2000 µF; diode test; continuity (70 Ω threshold)
6000-count backlit LCD; CAT III 600 V safety (IEC 61010-1); IP40
Misoperation alarm for added safety

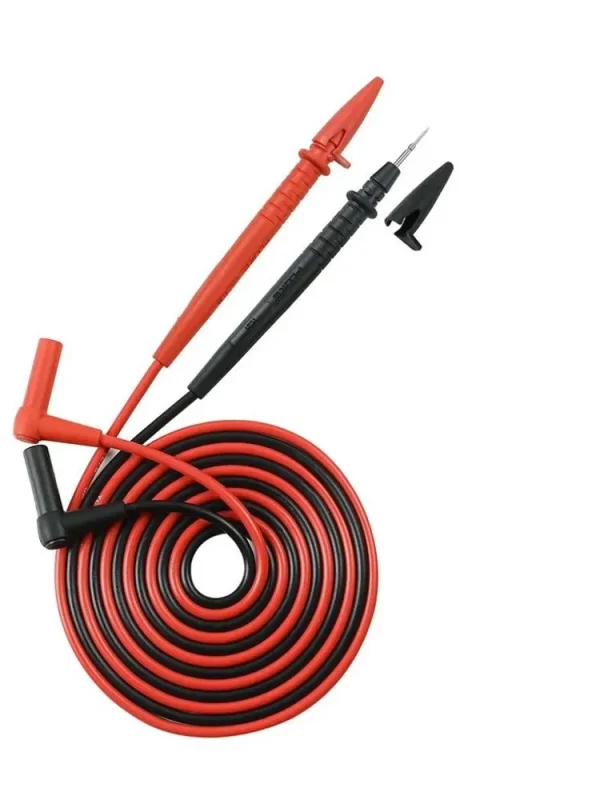

Test leads with fine tips for precise measurements
Press any key to wake up the multimeter

Fluke 15B MAX Applications

The Fluke 15B MAX is suitable for various applications, including electrical testing, maintenance, and troubleshooting.

Who Needs the Fluke 15B MAX?

The Fluke 15B MAX is ideal for professionals and DIY enthusiasts who require a reliable and accurate digital multimeter for their measurement needs.

Why Buy from MME?

Browse our multimeters. Read more in our how to choose the right meter. See other Fluke instruments.

At MME, we offer high-quality products, including the Fluke 15B MAX, at competitive prices. Our team of experts is always available to provide support and guidance to ensure that you find the right product for your needs.

Fluke 15B MAX Specifications

Specifications
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 % Accuracy specifications take the form of: ± ([% of Reading] + [Number of Least Significant Digits]).
Function	Range	Resolution	Accuracy (15B MAX)
AC Volts (40 Hz to 500 Hz)¹	6.000 V 60.00 V 600.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0 % + 3
AC Millivolts	600.0 mV	0.1 mV	3.0 % + 3
DC Volts	6.000 V 60.00 V 600.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5 % + 3
DC Millivolts	600.0 mV	0.1 mV	1.0 % + 10
AC Current μA (40 Hz to 400 Hz)²	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3
AC Current mA (40 Hz to 400 Hz)²	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3
AC Current A (40 Hz to 400 Hz)²	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC Current μA²	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3
DC Current mA²	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3
DC Current A²	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
Diode Test³	2.000 V	0.001 V	10%
Resistance (Ohms)⁵	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3
Capacitance⁶	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 2000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Continuity Threshold	—	—	70Ω
Backlight	—	—	Yes
¹ All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. ² Typical burden voltage: DC/AC Current µA: 100 µV / µA; DC/AC Current mA: 2 mV/mA; DC/AC Current A: 0.03 V/A ³Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA ⁵ Typical open circuit test voltage is 0.54 V, maximum short circuit current is 1.8 mA ⁶Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range).

Fluke 15B MAX General Specifications

Display	6000 counts, updates 3/sec, backlit
Safety rating	IEC 61010-1, IEC 61010-2-030: CAT III 600 V, Pollution Degree 2
Max voltage between V and COM	1000 V
Fuse protection	440 mA, 1000 V fast-blow; 11 A, 1000 V fast-blow
Battery	2 × AA (IEC LR6), 500 hours minimum
Operating temperature	0 °C to 40 °C (storage -30 °C to 60 °C)
Size / weight	183 × 91 × 49.5 mm / 455 g
Ingress protection	IP40

Fluke 15B MAX FAQ

What is the difference between the Fluke 15B MAX and the 17B MAX?

They share the same voltage, current, resistance and capacitance ranges. The 17B MAX adds temperature measurement (with a type-K thermocouple), frequency and duty cycle, and the 15B MAX doesn’t have these. If you only need electrical checks, the 15B MAX is the better-value choice. For model comparisons, see our Fluke 17B MAX page.

How does the 15B MAX improve on the 15B+?

Fluke describes the 15B MAX as continuing the 15B+ design. It adds an input alert alarm for leads in the wrong jack, wakes from sleep when you press any button, and comes with fine-tip test leads.

What is the safety rating of the Fluke 15B MAX?

It is rated CAT III 600 V to IEC 61010-1 and IEC 61010-2-030, which covers distribution boards and building wiring. For work at the service entrance, choose a CAT IV meter such as the Fluke 87V.

Can the 15B MAX measure capacitance and 10 A current?

Yes. It measures capacitance from 40.00 nF to 2000 µF and AC/DC current up to 10.00 A.

Which battery does it use?

It runs on 2 × AA (IEC LR6) batteries, rated for at least 500 hours.

Specifications

Specifications
Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, relative humidity at 0 % to 75 % Accuracy specifications take the form of: ± ([% of Reading] + [Number of Least Significant Digits]).
Function	Range	Resolution	Accuracy
Function	Range	Resolution	15B MAX	17B MAX
AC Volts (40 Hz to 500 Hz)¹	6.000 V 60.00 V 600.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0 % + 3	1.0 % + 3
AC Millivolts	600.0 mV	0.1 mV	3.0 % + 3	3.0 % + 3
DC Volts	6.000 V 60.00 V 600.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5 % + 3	0.5 % + 3
DC Millivolts	600.0 mV	0.1 mV	1.0 % + 10	1.0 % + 10
AC Current μA (40 Hz to 400 Hz)²	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3	1.5 % + 3
AC Current mA (40 Hz to 400 Hz)²	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3	1.5 % + 3
AC Current A (40 Hz to 400 Hz)²	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3	1.5 % + 3
DC Current μA²	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3	1.5 % + 3
DC Current mA²	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3	1.5 % + 3
DC Current A²	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3	1.5 % + 3
Diode Test³	2.000 V	0.001 V	10%	10%
Temperature 4	50.0 °C to 400.0 °C 0 °C to 50.0 °C -55.0 °C to 0 °C	0.1 °C	NA	2 %+1 °C 2 °C 9 %+2 °C
Resistance (Ohms)⁵	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5 % + 3
Capacitance⁶	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 2000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency¹ (10 Hz to 100 kHz)	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	NA	0.1 % + 3
Duty Cycle¹	1% to 99%	0.10%	NA	1 % typical⁷
Continuity Threshold	—	—	70Ω	70Ω
Backlight	—	—	Yes	Yes
¹ All ac, Hz, and duty cycle are specified from 1 % to 100 % of range. Inputs below 1 % of range are not specified. ² Typical burden voltage: DC/AC Current µA: 100 µV / µA; DC/AC Current mA: 2 mV/mA; DC/AC Current A: 0.03 V/A ³Typically, open circuit test voltage is 2.0 V and short circuit current is <0.6 mA ⁴Use Type K thermocouple ⁵ Typical open circuit test voltage is 0.54 V, maximum short circuit current is 1.8 mA ⁶Specifications do not include errors due to test lead capacitance and capacitance floor (may be up to 1.5 nF in the 40 nF range). ⁷ Typical means when the frequency is at 50 Hz or 60 Hz and the duty cycle is between 10 % and 90 %.
