Description

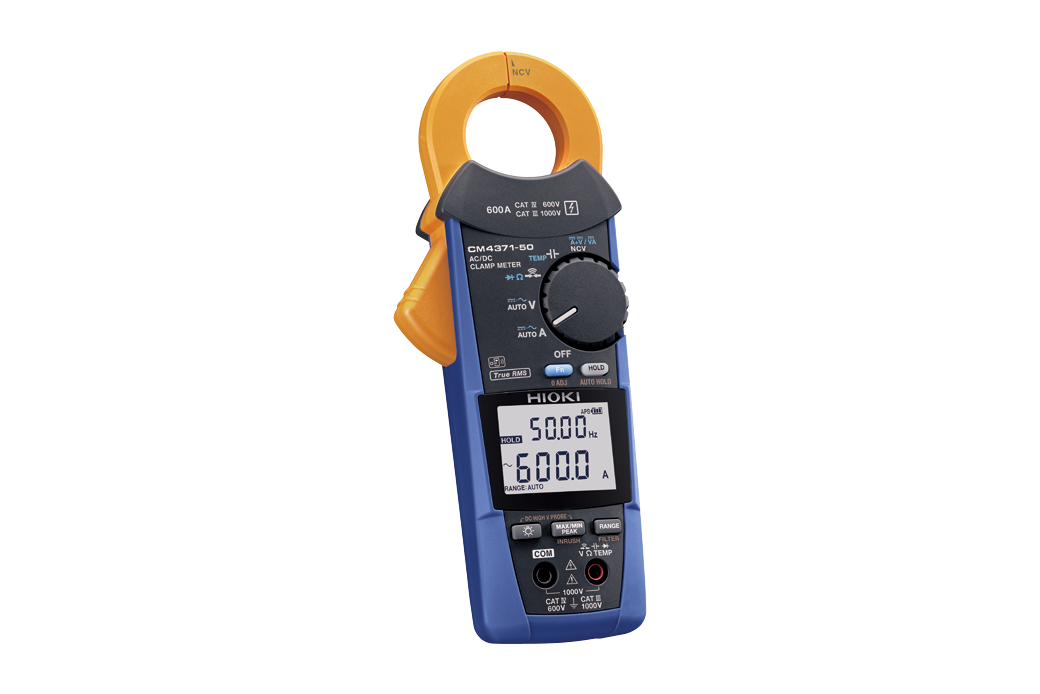

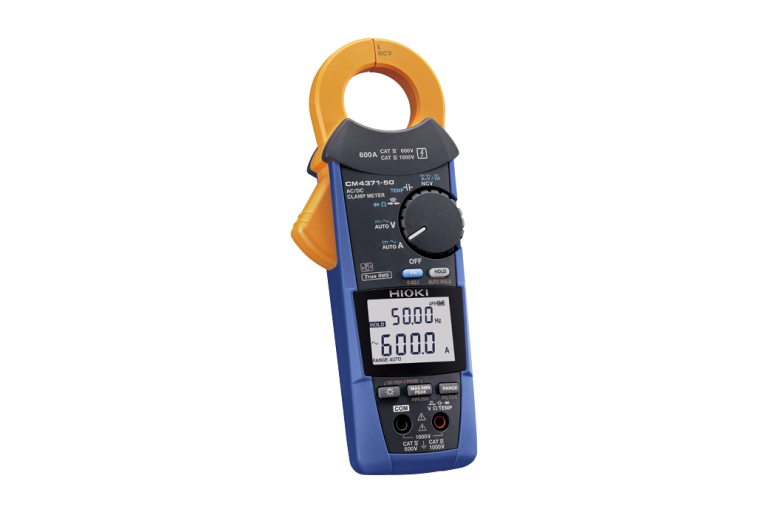

At Mohammad Mahdi Electronics, we offer the Hioki CM4371-90 AC/DC Clamp Meter, a versatile and accurate measurement tool for electricians and technicians. This clamp meter is designed to provide True RMS AC/DC measurement with high accuracy, making it ideal for a wide range of applications.

With its wide measurement range, the Hioki CM4371-90 can measure DC current, AC current, DC voltage, AC voltage, resistance, capacitance, and frequency. It also features temperature measurement with ±0.5% rdg. ±3.0 ˚C accuracy, making it a valuable tool for troubleshooting and maintenance.

Hioki CM4371-90 Key Features

The Hioki CM4371-90 AC/DC Clamp Meter features a range of key benefits, including:

True RMS AC/DC measurement with high accuracy
Wide measurement range for DC current, AC current, DC voltage, AC voltage, resistance, capacitance, and frequency
Temperature measurement with ±0.5% rdg. ±3.0 ˚C accuracy
Harmonic levels up to 30th order with Z3210 installed
Long battery life with up to 40 hours of continuous use
Dustproof and waterproof design with IP20 and IP54 ratings

Who Needs the Hioki CM4371-90?

The Hioki CM4371-90 AC/DC Clamp Meter is designed for electricians and technicians who require a versatile and accurate measurement tool. It is ideal for a wide range of applications, including:

Electrical troubleshooting and maintenance

Installation and commissioning of electrical systems

Testing and measurement of electrical circuits

Research and development of new electrical systems

Hioki CM4371-90 Applications

The Hioki CM4371-90 AC/DC Clamp Meter has a wide range of applications, including:

Electrical troubleshooting and maintenance
Installation and commissioning of electrical systems
Testing and measurement of electrical circuits
Research and development of new electrical systems

Why Buy Hioki CM4371-90 from MME?

At Mohammad Mahdi Electronics, we offer the Hioki CM4371-90 AC/DC Clamp Meter at a competitive price, with fast and reliable shipping. We also offer a range of clamp meters and other electrical measurement tools, including top clamp meters for electricians and Hioki instruments.

Hioki CM4371-90 Specifications

DC Current range	20.00 A/600.0 A, Basic accuracy: ±1.3% rdg. ±0.08 A (20 A range)
AC Current range	20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy: 45-66 Hz: ±1.3% rdg. ±0.08 A (at 20 A)
Crest factor	20.00 A range: 7.5 600.0 A range: 3 or less
DC+AC Current range	20.00 A/600.0 A (10 Hz to 1 kHz, True RMS), Basic accuracy DC, 45-66 Hz: ±1.3% rdg. ±0.13 A (at 20 A)
DC Voltage range	600.0 ｍV to 1000 V (When using P2010: 600.0 V to 2000 V)
AC Voltage range	6.000 V to 1000 V, 4 ranges (15 Hz to 1 kHz, True RMS), Basic accuracy 45 – 66 Hz: ±0.9% rdg. ±0.003 V (at 6 V)
DC+AC Voltage range	6.000 V to 1000 V, 4 ranges, Basic accuracy DC, 45 – 66 Hz: ±1.0% rdg. ±0.013 V (at 6 V)
Resistance range	600.0 Ω to 6.000 MΩ, 5 ranges, Basic accuracy: ±0.7% rdg. ±0.5 Ω (at 600 Ω)
Capacitance range	1.000 μF to 1000 μF, 4 ranges, Basic accuracy: ±1.9% rdg. ±0.005 μF (at 1 μF)
Frequency range	9.999 Hz to 999.9 Hz, 3 ranges, Basic accuracy: ±0.1% rdg. ±0.003 Hz (at 9.999 Hz)
Temperature (K)	-40.0 to 400.0 ˚C, add temperature probe accuracy to basic accuracy of ±0.5% rdg. ±3.0 ˚C
Voltage detection	Hi: 40 V to 600 V AC, Lo: 80 V to 600 V AC, 50/60 Hz

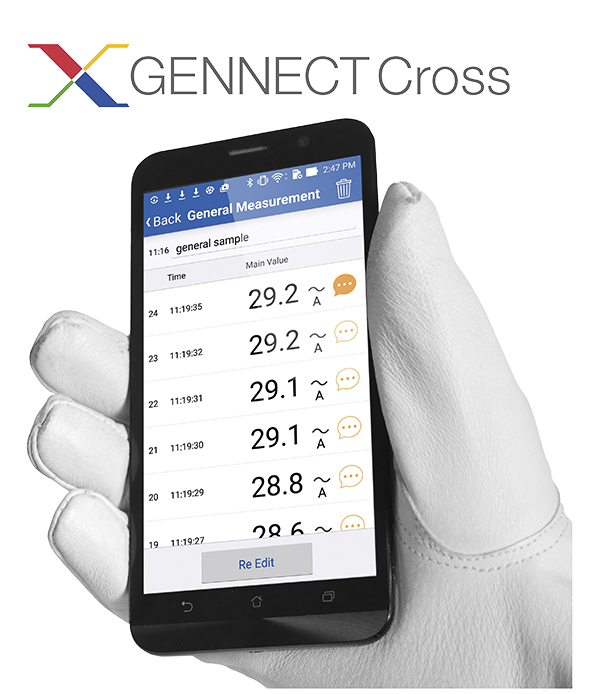

Harmonic levels	[With Z3210 installed] Voltage/Current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio *Harmonics can be displayed with our free app GENNECT Cross.
Other functions	DC power, Continuity check, Diode check, Automatic AC/DC detection, Pass/fail judgement function of DC A and DC V, Max/Min/Average/PEAK MAX/ PEAK MIN value display, Low-pass filter function, Display value hold, Auto hold, Back light, Auto-power save, Buzzer sounds, Zero-adjustment
Dustproof, waterproof	IP20 (Voltage measurement in a completely dry condition. When jaw closes) IP54 (While in storage)
Power supply	LR03 Alkaline battery ×2 Continuous use: 40 hr (without Z3210 installed), 20 hr. (with Z3210 installed and using wireless communications) Other conditions: 10 A AC measurement, backlight off, 23°C reference value
Core jaw diameter	φ33 mm (1.30 in), Jaw dimension: 69 mm (2.72 in) W× 14 mm (0.55 in) D
Dimensions and mass	65 mm (2.56 in) W × 215 mm (8.46 in) H × 35 mm (1.38 in) D mm, 340 g (12.0 oz)
Included accessories	Test Lead L9300, Carrying Case C0203, LR03 Alkaline battery ×2, Instruction Manual×2, Operating Precautions ×1
