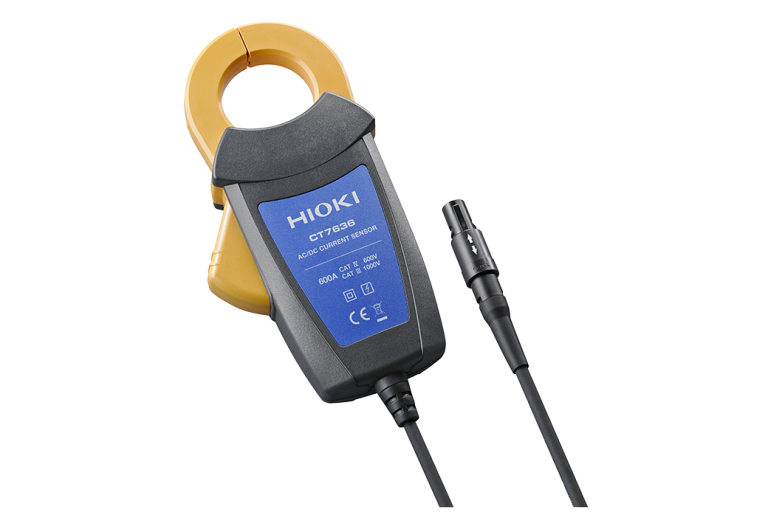

At Mohammad Mahdi Electronics, we offer the Hioki CT7636 AC/DC Current Sensor, a reliable and accurate solution for measuring AC/DC currents. With a wide bandwidth of DC to 10 kHz (-3dB), this sensor is ideal for a variety of applications, including electrical engineering and research.

Whether you’re working with current accessories or need a clamp meter for your next project, the Hioki CT7636 is a great choice. With its high accuracy of ±1.8 deg. (DC < f ≤ 66 Hz) and high safety rating of AC/DC 600 V (CAT IV) and AC/DC 1000 V (CAT III), you can trust that your measurements are accurate and reliable.

Hioki CT7636 Key Features

The Hioki CT7636 features a compact design with φ 33 mm (1.30 in) or less core diameter, making it easy to install and use. The sensor also has a wide operating temperature range of -25°C to 65°C (-13°F to 149°F), ensuring that it can withstand a variety of environmental conditions.

• Rated measurement current: 600 A AC/DC
• Max. measurement current: 600 A (requires derating at frequency)
• Max. allowable peak input: 900 A peak
• Bandwidth: DC to 10 kHz (-3dB)
• Typical phase accuracy: ±1.8 deg. (DC < f ≤ 66 Hz)
• Output rate: 1 mV/A
• Max. rated voltage to earth: AC/DC 600 V (CAT IV) AC/DC 1000 V (CAT III)
• Core diameter: φ 33 mm (1.30 in) or less
• Output connectors: HIOKI PL 14
• Operating temperature range: -25°C to 65°C (-13°F to 149°F)
• Dimensions and mass: 64 mm (2.52 in)W × 160 mm (6.30 in)H × 34 mm (1.34 in)D, 320 g (11.3 oz), Cable length 2.5 m (8.20 ft)

Who Needs the Hioki CT7636?

The Hioki CT7636 is ideal for a variety of applications, including electrical engineering and research. Whether you’re working with Hioki instruments or need a reliable and accurate solution for measuring AC/DC currents, this sensor is a great choice.

At Mohammad Mahdi Electronics, we understand the importance of accurate measurements in your work. That’s why we offer the Hioki CT7636, a reliable and accurate solution for measuring AC/DC currents.

Hioki CT7636 Applications

The Hioki CT7636 is ideal for a variety of applications, including:

• Electrical engineering
• Research
• Testing and measurement

Why Buy Hioki CT7636 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki CT7636 at a competitive price, with fast shipping and excellent customer service. Whether you’re working with current accessories or need a clamp meter for your next project, we have the solution you need.

Don’t settle for anything less than the best. Buy the Hioki CT7636 from Mohammad Mahdi Electronics today and experience the difference for yourself.

Hioki CT7636 Specifications
