Description

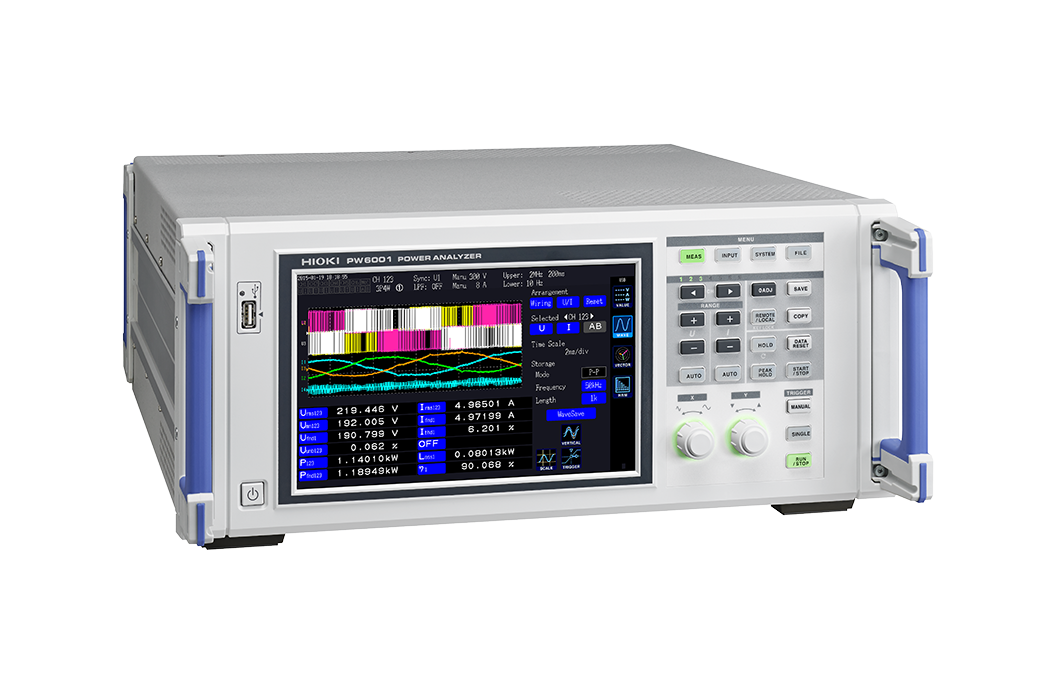

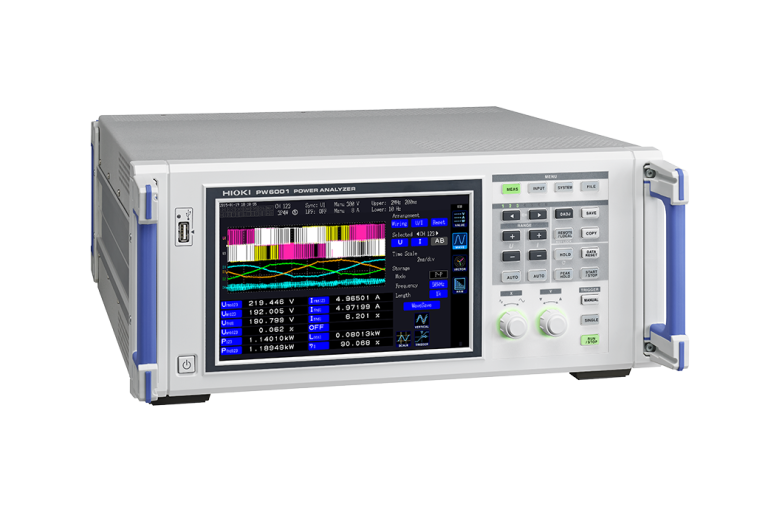

At Mohammad Mahdi Electronics, we offer the Hioki PW6001-01 POWER ANALYZER, a cutting-edge device designed to measure and analyze power quality in various applications. Whether you’re a professional or an enthusiast, this analyzer is perfect for power quality analyzers and best power quality analyzers on the market.

The Hioki PW6001-01 is a versatile tool that can measure up to 6 channels simultaneously, providing accurate readings of voltage, current, active power, apparent power, reactive power, power factor, phase angle, frequency, efficiency, loss, voltage ripple factor, current ripple factor, current integration, power integration, voltage peak, and current peak. With a wide frequency range of 0.1 Hz to 2 MHz, this analyzer is suitable for various applications, including Hioki instruments and Hioki devices.

Hioki PW6001-01 Key Features

The Hioki PW6001-01 POWER ANALYZER comes with a range of key features that make it an ideal choice for professionals and enthusiasts alike. Some of its key features include:

Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire measurement line types
Max. 6 channels for simultaneous voltage and current input
Measures 14 power quality parameters
Wide frequency range: 0.1 Hz to 2 MHz
Basic accuracy: ±0.02 % rdg. ±0.02 % f.s.
External interfaces: USB, LAN, GP-IB, RS-232C
Logger connectivity via Bluetooth wireless technology

Who Needs the Hioki PW6001-01?

The Hioki PW6001-01 POWER ANALYZER is designed for professionals and enthusiasts who need to measure and analyze power quality in various applications. Some of the key users of this analyzer include:

Electrical engineers who need to measure and analyze power quality in electrical systems

Power quality analysts who need to measure and analyze power quality in various applications

Researchers who need to measure and analyze power quality in various applications

Hioki PW6001-01 Applications

The Hioki PW6001-01 POWER ANALYZER has a wide range of applications, including:

Power quality analysis
Power system analysis
Electrical system analysis
Research and development

Why Buy Hioki PW6001-01 from Mohammad Mahdi Electronics?

At Mohammad Mahdi Electronics, we offer the Hioki PW6001-01 POWER ANALYZER at competitive prices, along with excellent customer service and support. Whether you’re a professional or an enthusiast, we have the expertise and resources to help you choose the right analyzer for your needs.

So why wait? Buy the Hioki PW6001-01 POWER ANALYZER from Mohammad Mahdi Electronics today and start measuring and analyzing power quality with confidence!

Hioki PW6001-01 Specifications

Measurement line type	Single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, three-phase 4-wire

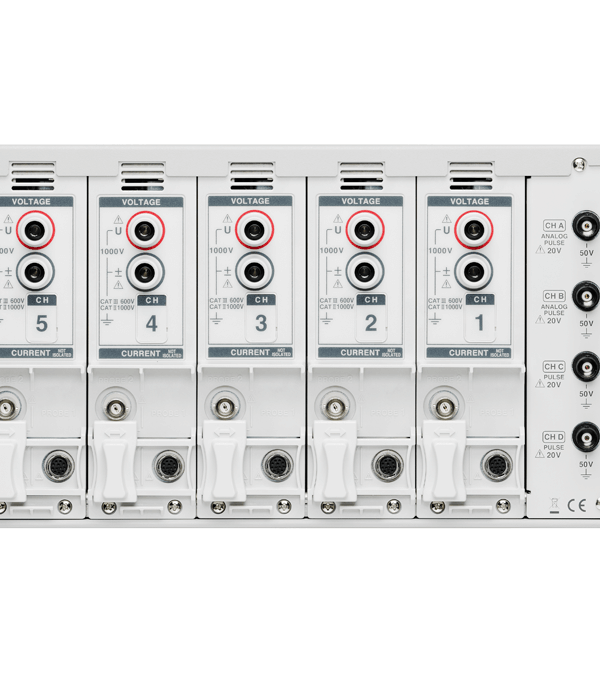

Number of input channels	Max. 6 channels; each input unit provides 1 channel for simultaneous voltage and current input (Voltage measurement unit: Photoisolated input, resistance voltage divider, Current measurement unit: Isolated input from current sensor)
Measurement items	Voltage (U), current (I), active power (P), apparent power (S), reactive power (Q), power factor (λ), phase angle (φ), frequency (f), efficiency (η), loss (Loss), voltage ripple factor (Urf), current ripple factor (Irf), current integration (Ih), power integration (WP), voltage peak (Upk), current peak (Ipk)
	Harmonic measurement: Harmonic active power, select calculation order from 2nd order to 100th order
	Waveform recording: Voltage and current waveforms/ Motor pulse: Always 5 MS/s Motor waveforms: Always 50 kS/s, 16 bits Recording capacity: 1 Mword × ((voltage + current) × number of channels + motor waveforms)
	Motor analysis (PW6001-11 to -16 only): Voltage, Torque, Rotation, Frequency, Slip, or Motor output
Measurement range	Voltage range: 6 to 1500 V, 8 ranges Current range (Probe 1) : 400 mA to 1 kA (depends on current sensor) Current range (Probe 2) : 100 mA to 50 kA (depends on current sensor) Power range: 2.40000W to 4.50000MW (depends on combination of voltage and current range) Frequency range: 0.1 Hz to 2 MHz
Basic accuracy	Voltage: ±0.02 % rdg. ±0.02 % f.s. Current: ±0.02 % rdg. ±0.02 % f.s. Active power: ±0.02 % rdg. ±0.03 % f.s.
Synchronization frequency range	Power measurement: 0.1 Hz to 2 MHz Harmonic measurement: 45 Hz to 66 Hz (IEC standard mode), 0.1 Hz to 300 kHz (Wideband mode)
Frequency band	DC, 0.1 Hz to 2 MHz
Data update rate	Power measurement: 10 ms/ 50 ms/ 200 ms Harmonic measurement: 200 ms (IEC standard mode), 50 ms (Wideband mode
Data save interval	OFF, 10 msec to 500 msec, 1 sec to 30 sec, 1 minute to 60 minutes User-selected from all measured values, including harmonic measured values, Specified measured values can be saved in internal memory or USB flash drive
External interfaces	USB (memory), LAN, GP-IB, RS-232C (for communication/LR8410 link), External control ,Synchronization control
Logger connectivity	Sends measured values wirelessly to logger by using a Bluetooth® wireless technology serial conversion adapter. (Supported devices: Hioki LR8410 Link-compatible loggers), Ver. 2.0 and later
Power supply	100 to 240 V AC, 50/60 Hz, 200 VA max
Dimensions and mass	430 mm (16.93 in)W × 177 mm (6.97 in)H × 450 mm (17.72 in)D, 14 kg (49.4 oz) (PW6001-16)
Included accessories	Instruction Manual ×1, Power cord ×1, D-sub connector × 1 (PW6001-1x only)
