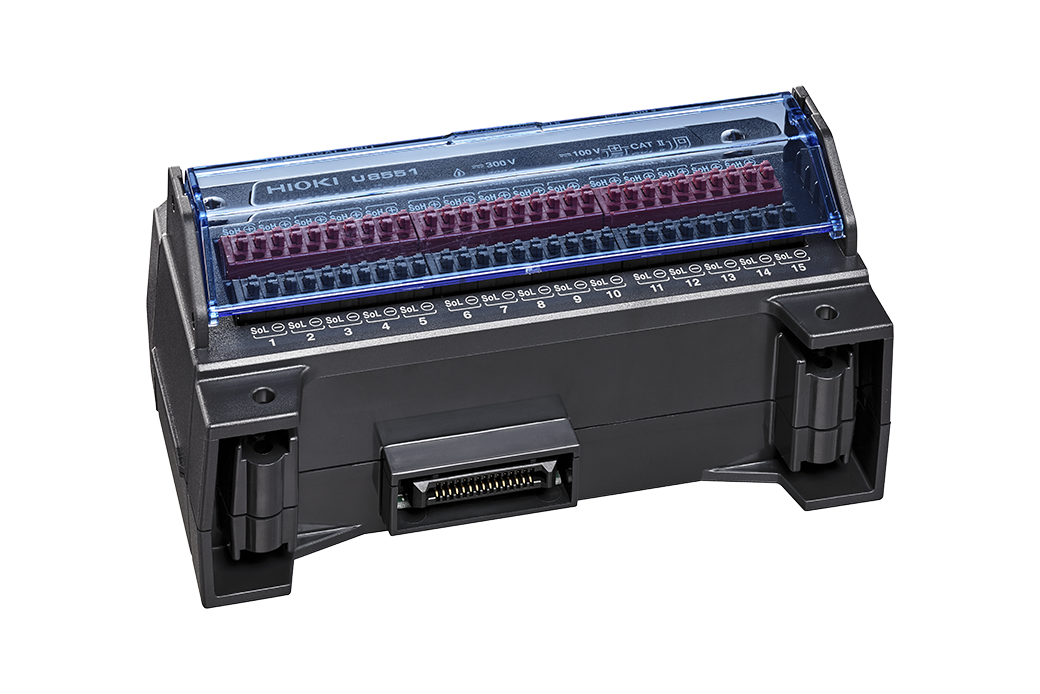

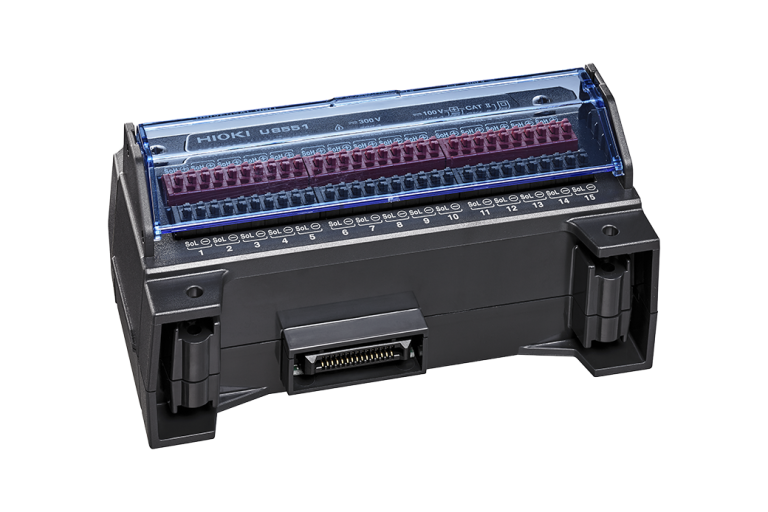

Hioki U8551 Universal Unit | MME

At Mohammad Mahdi Electronics, we offer a wide range of electrical instruments, including the Hioki U8551 Universal Unit. This unit is designed for use with various instruments, such as the Memory HiLogger LR8450 and LR8450-01, which provide reliable data logging capabilities.

The Hioki U8551 Universal Unit operates within a temperature range of -10°C to 50°C and humidity levels of 80% RH or less, ensuring optimal performance in various environments. It also features vibration resistance equivalent to Class 1A (passenger vehicle) and comes with an instruction manual and mounting screws for easy installation.

Hioki U8551 Key Features

The Hioki U8551 Universal Unit offers 15 input channels, allowing users to measure voltage, temperature using thermocouples or RTDs, humidity, and resistance. The unit features push-button type terminal blocks with 4 terminals per channel, ensuring secure and reliable connections.

• Connectable instruments: Memory HiLogger LR8450 (Designed for use with plug-in units only)
• Connectable instruments: Memory HiLogger LR8450-01 (Wireless LAN model)
• Operating temperature and humidity: -10°C to 50°C, 80% RH or less (no condensation)
• Storage temperature and humidity: -20°C to 60°C, 80% RH or less (no condensation)
• Vibration resistance: JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent
• Number of input channels: 15 ch (Able to set voltage, temperature using the thermocouple or RTD, humidity, and resistance for each channel)
• Input terminals: Push-button type terminal block (4 terminals per channel)
• Measurement target: Voltage, temperature using the thermocouple or RTD, humidity, resistance measurement
• Input type: Scanning by semiconductor relays
• Voltage measurement (resolution): 10 ｍV f.s. (500 nV), 20 mV f.s. (1μV), 100 mV f.s. (5μV), 200 mV f.s. (10μV), 1 V f.s. (50μV), 2 V f.s. (100μV), 10 V f.s. (500μV), 20 V f.s. (1 mV), 100 V f.s. (5 mV), 1-5 V f.s. (500μV)
• Temperature measurement (thermocouple): K: -100.00℃ to 1350.0℃ J: -100.00℃ to 1200.0℃ E: -100.00℃ to 1000.0℃ T: -100.00℃ to 400.0℃ N: -100.00℃ to 1300.0℃ R: 0.00℃ to 1700.0℃ S: 0.00℃ to 1700.0℃ B: 400.0℃ to 1800.0℃ C: 0.00℃ to 2000.0℃
• Temperature measurement (Pt): Pt100：-100.00℃ to 800.0℃ JPt100：-100.00℃ to 500.0℃ Pt1000：-100.00℃ to 800.0℃
• Resistance measurement (resolution): 10 Ω (0.5 mΩ), 20 Ω (1 mΩ), 100 Ω (5 mΩ), 200 Ω (10 mΩ)

Who Needs the Hioki U8551?

The Hioki U8551 Universal Unit is designed for use in various applications, including electrical testing, measurement, and data logging. It is ideal for industries such as manufacturing, construction, and research, where accurate and reliable measurements are crucial.

The unit’s compact design and versatility make it an excellent choice for use in a variety of environments, from laboratories to field testing.

At Mohammad Mahdi Electronics, we understand the importance of reliable and accurate measurements in various industries. That’s why we offer the Hioki U8551 Universal Unit, designed to meet the needs of professionals and researchers alike.

Hioki U8551 Applications

The Hioki U8551 Universal Unit is designed for use in a variety of applications, including:

• Electrical testing and measurement
• Data logging and recording
• Research and development
• Manufacturing and quality control

Why Buy Hioki U8551 from Mohammad Mahdi Electronics?

Browse our electrical instruments. Read more in our electrical safety standards guide.

At Mohammad Mahdi Electronics, we offer the Hioki U8551 Universal Unit at competitive prices, ensuring that you get the best value for your money. Our team of experts is always available to provide support and guidance, ensuring that you get the most out of your purchase.

We also offer a wide range of electrical instruments and accessories, making us your one-stop shop for all your measurement and testing needs.

Hioki U8551 Specifications
