Kehui T-710 Intelligent Cable Identifier

The Kehui T-710 Intelligent Cable Identifier is a high-performance and versatile tool that offers a range of features, applications, and benefits for power industry professionals. Its advanced cable identification capabilities, combined with its durability and long-lasting performance, make it an essential tool for those working in the power industry. Whether used for on-line or off-line cable identification, fault location and testing, or pinpointing high resistance and flashover faults, the T-710 can be relied upon to deliver efficient, reliable, and accurate results.

SKU:69543

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

13People watching this product now!

Kehui T-710 Intelligent Cable Identifier

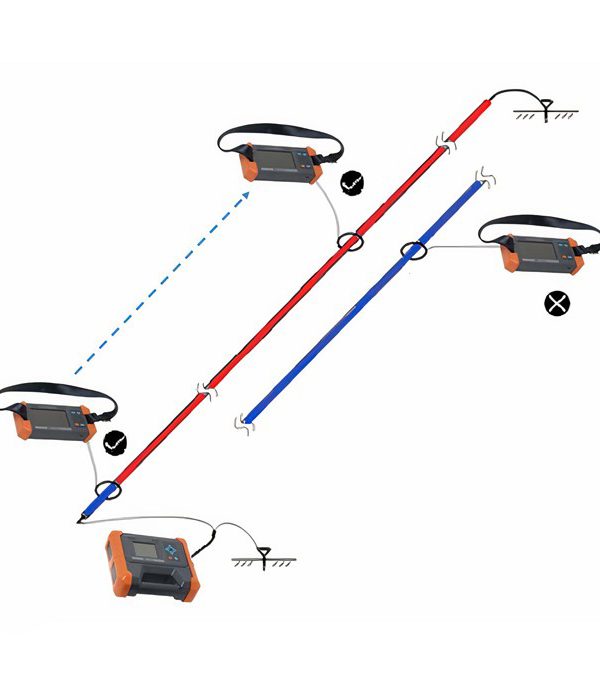

The Kehui T-710 Intelligent Cable Identifier is a high-performance cable identification instrument used in the power industry to accurately identify a specific cable among a bundle of cables. It consists of a signal transmitter and a receiver and is designed to meet strict criteria for cable identification, ensuring personal safety and preventing damage to plants. The T-710 is suitable for both on-line and off-line use, with a flexible clamp for receiving signals and load current measurement for 50Hz/60Hz cables. This article will explore the main features, applications, and benefits of the Kehui T-710 Intelligent Cable Identifier.

Main Features

The Kehui T-710 Intelligent Cable Identifier offers a range of features that contribute to its high performance and accuracy in cable identification. Some of its key features include:

  • Flexible clamp for receiving signals: The Kehui T-710 is equipped with a flexible clamp that allows for easy and efficient signal reception, enhancing its overall performance.
  • Load current measurement for 50Hz/60Hz cable: This feature enables the T-710 to accurately measure the load current of cables operating at 50Hz/60Hz, further enhancing its cable identification capabilities.
  • Direct output or clamp coupling: The T-710 offers the option of direct output or clamp coupling, providing flexibility in its application and making it suitable for a variety of cable identification tasks.
  • Adjustable, high output power: With a maximum output power of 10W, adjustable in 10 steps, the T-710 can deliver a high level of output power, ensuring accurate and reliable cable identification.
  • Automatic impedance matching: The T-710 is equipped with automatic impedance matching, which helps to optimize its performance and ensure clear identification of the cable in question.
  • High-capacity lithium-ion battery: The T-710 is powered by a high-capacity lithium-ion battery, which provides long-lasting performance and reduces the need for frequent recharging.
  • Lightweight, sturdy housing: The T-710 is housed in a lightweight yet sturdy casing, making it easy to transport and use in various environments.
  • High-accuracy digital sampling and processing with extremely narrow passband reception: This feature allows the T-710 to accurately sample and process digital signals, ensuring reliable and precise cable identification.
  • Immunity from interference: The T-710 is designed to be immune to interference, ensuring that it can operate effectively in environments where there may be a high level of electrical noise.
  • Suppression of power frequency and harmonic interference from adjacent cables and pipelines: This feature helps to minimize the impact of power frequency and harmonic interference, further enhancing the Kehui T-710’s performance in cable identification tasks.

Main Applications and Uses

The Kehui T-710 Intelligent Cable Identifier is primarily used in the power industry for cable identification tasks that require a high level of accuracy and reliability. Some of its main applications and uses include:

  • Identifying specific cables in a bundle: The Kehui T-710 is designed to accurately identify a specific cable among a bundle of cables, making it an essential tool for power industry professionals who need to work with large numbers of cables.
  • On-line and off-line cable identification: The T-710 is suitable for both on-line and off-line cable identification tasks, providing flexibility in its application and making it a versatile tool for power industry professionals.
  • Fault location and testing: The T-710 can be used in conjunction with other cable fault location and testing equipment, such as high voltage surge generators and pinpointers, to locate and test faults in power cables.
  • Time Domain Reflectometer (TDR) functionality: The T-710 can also be used as a Time Domain Reflectometer to detect open and short circuit faults in power cables, further enhancing its utility in fault location and testing tasks.
  • Pinpointing high resistance and flashover faults: When used with a high voltage surge generator and a pinpointer, the T-710 can help to pinpoint high resistance and flashover faults on power cables, making it a valuable tool for power industry professionals.

Benefits

The Kehui T-710 Intelligent Cable Identifier offers a range of benefits that contribute to its overall value and effectiveness as a cable identification instrument. Some of its main benefits include:

  • Enhanced personal safety: The Kehui T-710’s high-performance and accurate cable identification capabilities help to ensure personal safety in the power industry, where cable identification is a critical task.
  • Prevention of damage to plants: By accurately identifying specific cables, the T-710 helps to prevent damage to plants, which can result in costly repairs and downtime.
  • Efficient and reliable cable identification: The T-710’s advanced features and high level of performance contribute to its overall efficiency and reliability in cable identification tasks, saving time and effort for power industry professionals.
  • Application versatility: The T-710’s flexible clamp for receiving signals and adjustable output power make it a versatile tool that can be used in a variety of cable identification tasks, further enhancing its value and utility.
  • Long-lasting performance: The T-710’s high-capacity lithium-ion battery provides long-lasting performance, reducing the need for frequent recharging and ensuring that it can be relied upon for extended periods of use.
  • Durable construction: The T-710’s lightweight yet sturdy housing makes it a durable tool that can withstand the rigors of the power industry, further enhancing its overall value and longevity.

Kehui T-710 Intelligent Cable Identifier Specifications:

Transmitter

  • Output frequency: 640Hz or 1280Hz
  • Output power: max 10W in 10 steps
  • Output voltage: max.150Vpp
  • Overload/short circuit protection
  • HMI: 320 x 240 pixels LCD
  • Internal battery: 4 nos.18650-, 7.4V, 6.8 Ah
  • Dimensions 280 x 220 x 90mm
  • Weight 2.3Kg

Receiver

  • Input mode: Flexible clamp
  • Active detection frequency 640Hz, 1280Hz
  • Passive detection system frequency 50/60Hz
  • Current measurement: 1 – 1000A±3% AC
  • HMI: 800 x 480 pixels LCD
  • Battery: 2 nos. 18650 battery, 3.7V 6.8Ah
  • Dimensions: 220 x 125 x 55mm
  • Weight 0.9kg

Operating Environment

  • Temperature: -10oC to +50oC
  • Relative Humidity: 5 – 90%
  • Ingress protection IP54
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “Kehui T-710 Intelligent Cable Identifier”

Brand

Kehui

Kehui Instruments

With a strong commitment to quality and innovation, The Kehui empower professionals and industries to achieve excellence through precise measurements and data analysis.Kehui is your dependable partner for an extensive selection of measurement tools, each created to satisfy the stringent requirements of numerous industries. No matter if you work in production, R&D, or quality control, our instruments offer the dependability and accuracy you want.

As a well-known distributor, MMElectronic is pleased to meet all of your requirements for kehui products at cost-effective pricing.

Datasheet

Datasheet

Datasheet

Specifications

specifications
AC Current(Range/Resolution/Accuracy)

1 – 1000A ±3% AC

DC Voltage(Range/Resolution/Accuracy)

max.150Vpp

Frequency (Range/Resolution/Accuracy)

Receiver Passive detection system frequency 50/60Hz, Transmitter and receiver: 640Hz or 1280Hz

cable fault
Multiple Frequency Modes

Passive and Active

Mechanical and General Specifications
Dimensions

Receiver Dimensions: 220 x 125 x 55mm, Transmitter Dimensions 280 x 220 x 90mm

Weight

Receiver Weight 0.9kg, Transmitter Weight 2.3Kg

IP rating

IP54

Power

Receiver Battery: 2 nos. 18650 battery, 3.7V 6.8Ah, Transmitter Internal battery: 4 nos.18650-, 7.4V, 6.8 Ah

Operating temperature

-10 °C to +50 °C

Other features of the device

Receiver HMI: 800 x 480 pixels LCD, Transmitter HMI: 320 x 240 pixels LCD
