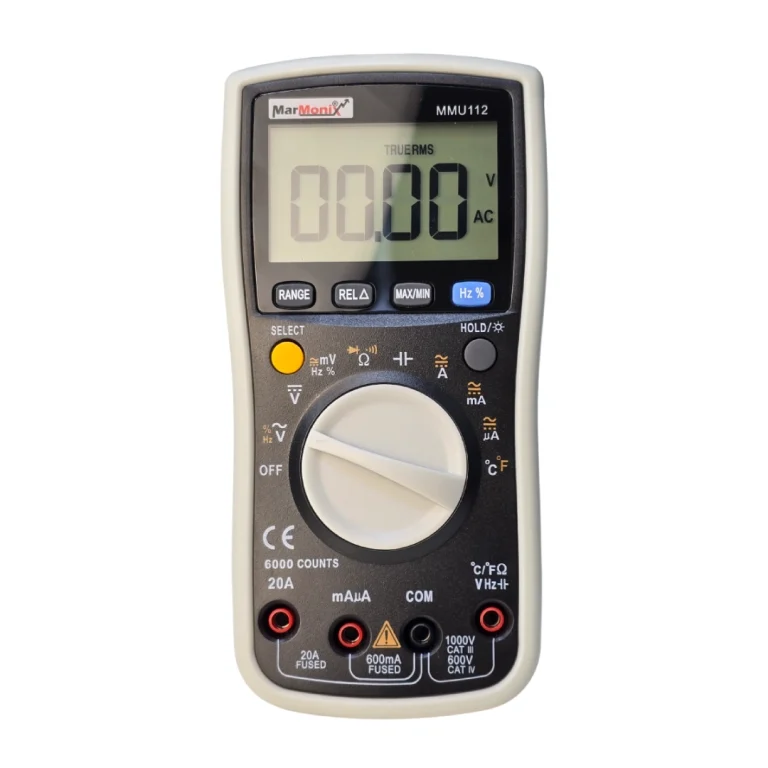

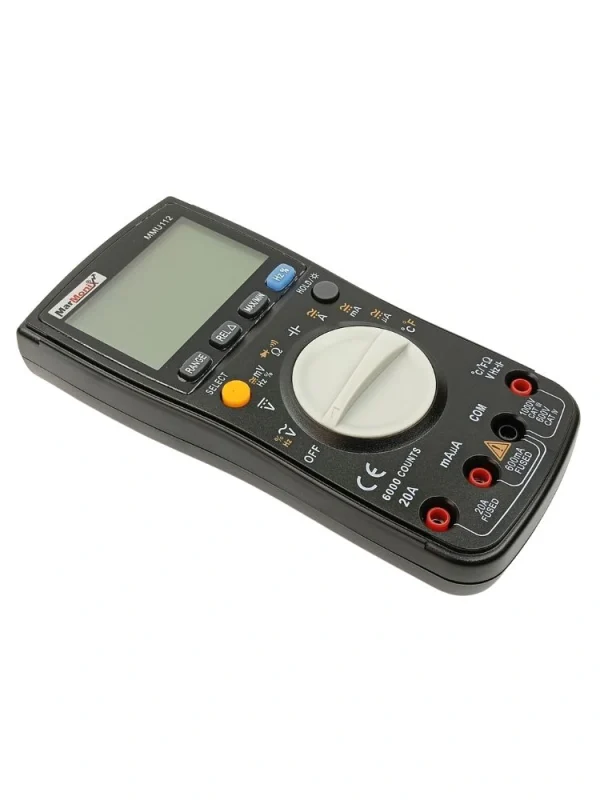

MarMonix MMU 112 Professional Digital Multimeter | 20.00 A AC/DC

Name: Marmonix MMU 112 Digital Multimeter 20A CAT IV | UAE Stock
Brand: Marmonix
SKU: 125263
Price: 245 AED
Availability: InStock
Rating: 4.67 (12 reviews)

Brand: Marmonix

SKU: 125263

4.7 12 reviews

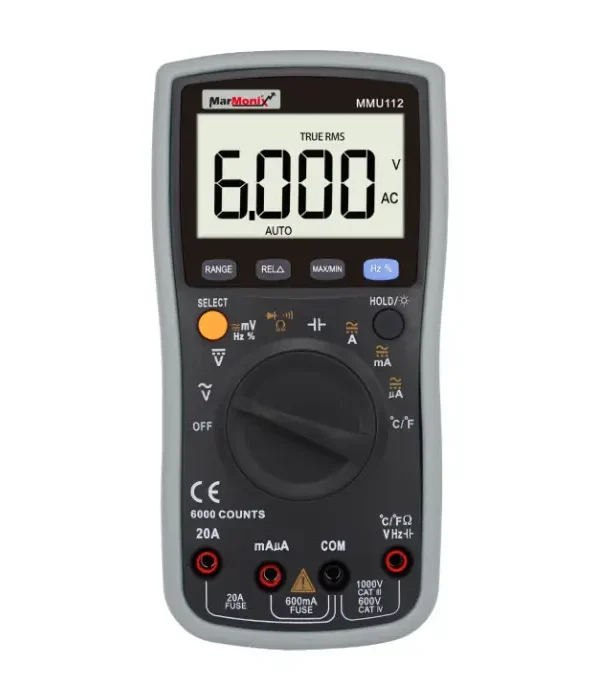

The Marmonix MMU 112 Professional Digital Multimeter is an industrial-grade, True RMS diagnostic instrument engineered for high-current plant maintenance, motor drives, and switchgear commissioning. Delivering heavy-duty 20.00A AC/DC current capability, 1000V DC / 750V AC measurement, and certified CAT IV 600V transient surge safety, it provides rugged reliability for electrical contractors across Dubai, Abu Dhabi, and the GCC.

Extended 20A Current Measurement: Safely audits high-amperage industrial loads without premature fuse blowing (600μA to 20A AC/DC).
Comprehensive Diagnostic Parameters: Measures Voltage, Resistance (up to 60MΩ), Capacitance (up to 9.999mF), Frequency (up to 9.999MHz), Duty Cycle (1%–99%), and Temperature (−20°C to +1000°C).
CAT IV 600V Utility Safety Rating: Full input overload protection for service entrance panels, feeders, and harsh industrial environments.
6000-Count Backlit Display: Fast-refresh clear LCD screen designed for dim electrical substations and dark distribution boards.

Datasheet PDF

Manual PDF

Secure Purchase
Fast Delivery
Genuine Guarantee
Online Payment

AED 245 (excl.VAT)

In stock

Call us

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

Description

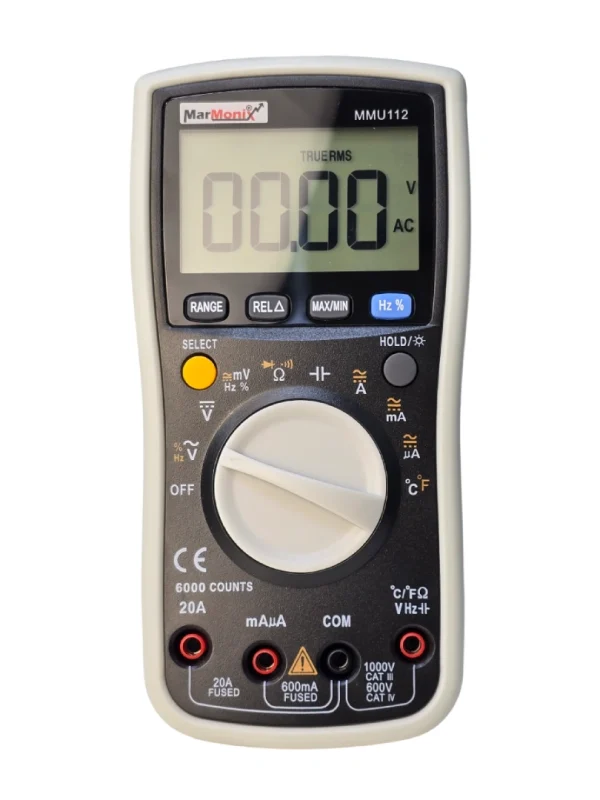

The MarMonix MMU-112 Digital Multimeter is an industrial-grade, 6000-count True RMS diagnostic tool engineered for plant engineers, utility contractors, and facility maintenance teams across the UAE and GCC. Built with high-energy surge protection (CAT IV 600V / CAT III 1000V) and extended 20A AC/DC continuous load measurement capabilities, the MMU-112 delivers lab-level electrical diagnostic precision in harsh desert operating environments.

MarMonix MMU-112 Architecture: True RMS Precision for Distorted Industrial Waveforms

Modern commercial facilities and industrial plants across Dubai, Abu Dhabi, and the GCC are dominated by variable frequency drives (VFDs), switching power supplies, and heavy inductive loads. Standard average-responding meters generate error margins exceeding 40% when measuring these non-linear signals. To prevent costly misdiagnoses, premature motor failures, and unscheduled plant shutdowns, the MarMonix MMU-112 True RMS Multimeter captures actual thermal dissipation equivalents with true root-mean-square accuracy.

Before analyzing the comprehensive specifications matrix, observe how each internal subsystem is purpose-built to withstand real-world industrial stresses:

Extended 20A In-Line Current Measurement: Unlike entry-level DMMs capped at 10A, the MMU-112 safely measures continuous primary branch currents up to 20A AC/DC with heavy-duty ceramic fuse protection.

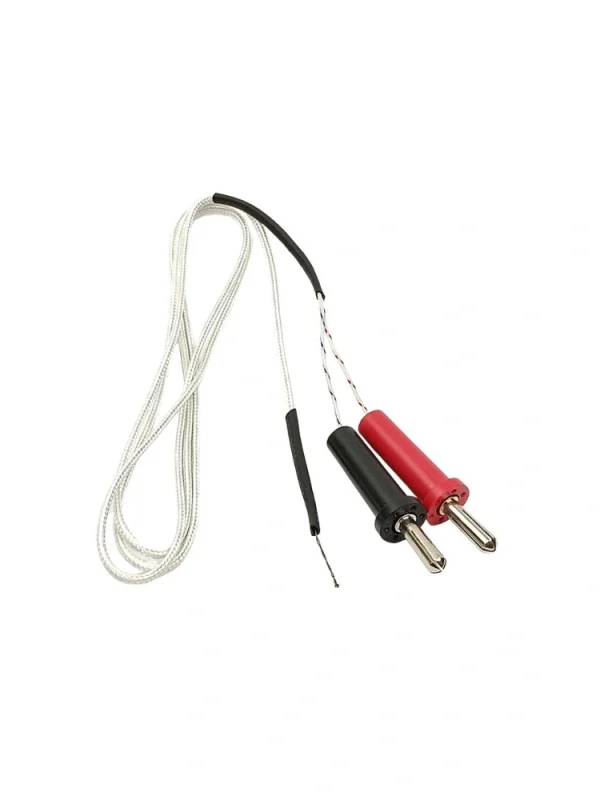

Comprehensive Component Testing Suite: Measures high capacitance (up to 4000µF) for HVAC motor run capacitors, resistance up to 60MΩ, and type-K thermocouple temperature probes for mechanical audit routines.
High-Resolution 6000-Count Display with Fast Analog Bar Graph: Instant visual feedback for rapid load swings, relay chattering, and erratic baseline fluctuations.
Non-Contact Voltage (NCV) Sensing: Rapidly detects live phase conductors without test lead contact, adding an essential layer of personal safety during rapid switchgear inspections.

Technical Benchmark & Industrial DMM Comparison: MarMonix MMU-112 Specifications

Choosing the correct instrument for distribution panels requires matching electrical overvoltage categories with active site parameters. While general multi-testers focus purely on basic voltage tests, industrial facilities demanding compliance with regional safety frameworks (including DEWA and Aramco electrical guidelines) require certified transient withstand capabilities.

The comparative breakdown below details how the technical parameters of the MarMonix MMU-112 align against standard multi-tester metrics across core utility requirements:

Key Specification & LSI Parameter	MarMonix MMU-112 Benchmark	Standard Commercial Multimeters
Measurement Engine	True RMS (Accurate on Harmonics/VFDs)	Average Responding (Sine-wave only)
Safety & Overvoltage Rating	CAT IV 600V / CAT III 1000V	CAT II 600V or unrated
Current Measurement Range	Direct In-Line 20A AC/DC Continuous	10A Max (Intermittent only)
HVAC Diagnostic Coverage	Capacitance (4000µF) + Temp Probe (-40°C to 1000°C)	Limited to simple microfarads / No temp
Display Resolution	6000 Counts + High-Speed Bar Graph	2000 to 4000 Counts

💡 Engineering Decision Guide: Clamp Meter vs. Multimeter for Field AuditsWhile the MarMonix MMU-112 True RMS DMM is essential for deep circuit diagnostics, contact resistance, and micro-component verification, field technicians frequently face live switchboards where breaking a conductor to insert series leads is neither practical nor safe.Unsure whether your maintenance application requires non-intrusive jaw measurement or precision in-line contact probes? Read our detailed engineering guide: Clamp Meters vs. Multimeters: Key Differences & Field Selection Guide to choose the right testing architecture for your GCC facility.

Regional Availability & Procurement Verification for UAE & Middle East Projects

Industrial maintenance teams cannot afford the delays and inspection failures caused by unverified grey-market hardware or counterfeit test instruments. To ensure absolute compliance with regional project submittal criteria, sourcing must be conducted through established commercial channels.

Authorized MarMonix Distribution & Authenticity Notice

Mohammad Mahdi Electronics Trading LLC (mme-ae.com) is the Authorized Distributor and Representative for MarMonix electrical test and measuring instruments across the UAE and the wider GCC. Every MarMonix MMU-112 unit supplied through MME is guaranteed 100% genuine, brand-new, and sourced directly from the factory, ensuring complete commercial documentation, serial number validation, and official manufacturer warranty fulfillment.

Why is True RMS measurement critical when testing industrial installations with the MMU-112?

True RMS (Root Mean Square) calculates the exact heating potential of alternating voltage and current waveforms. On non-linear loads created by modern LED lighting, motor drives, and computer servers, standard average meters underreport values by up to 40%. The True RMS architecture of the MarMonix MMU-112 guarantees accurate diagnostic reads on complex waveforms.

Can the MarMonix MMU-112 handle continuous 20A current loads safely?

Yes. The MMU-112 is engineered with dedicated high-energy internal ceramic fuses rated for heavy-duty industrial circuits. It can withstand up to 20A continuous test loads, providing an extended safety margin over typical 10A multi-testers.

Specifications

FUNCTION	RANGE	ACCURACY
DC Voltage	60 mV – 1000 V	+/-(0.5%+3)
AC Voltage	60 mV – 750 V	+/-(1.0%+3)
DC Current	600 uA – 20 A	+/-(1.2%+3)
AC Current	600 uA – 20 A	+/-(1.5%+3)
Resistance	600 ohm – 60 Mohm	+/-(0.5%+3 to 1.5%+3)
Capacitance	9.999 nF – 9.999 mF	+/-(2.0%+5 to 5.0%+20)
Frequency	99.99 Hz – 9.999 MHz	+/-(0.1%+2)
Duty cycle	1% – 99%	+/-(0.1%+2)
Temperature	-20 C to +1000 C	+/-(2.5%+5)
Diode / Continuity	Yes	–
Display	6000 counts LCD with backlight	–
Power supply	Battery operated	–
Dimensions	180 x 90 x 45 mm	–
Safety rating	CAT IV 600 V	–

Datasheet

Download datasheetPDF

Manual

Download user manualPDF

Reviews (12)

4.7

Rated 4.7 out of 5

12 reviews

Rated 5 out of 5

Rated 4 out of 5

Rated 3 out of 5

Rated 2 out of 5

Rated 1 out of 5

12 reviews for MarMonix MMU 112 Professional Digital Multimeter | 20.00 A AC/DC

Clear filters

Mike R. – February 27, 2026

Rated 5 out of 5

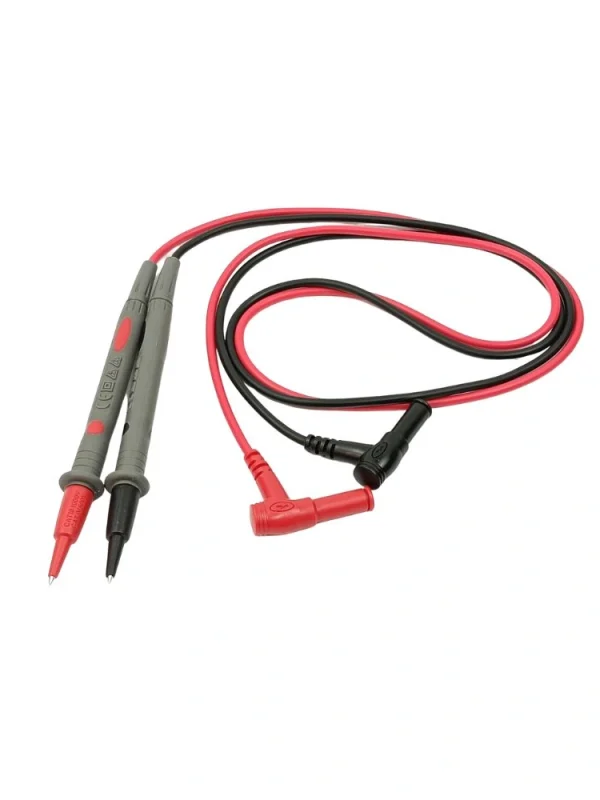

Absolutely top tier. I needed a multimeter that could handle up to 20.00 A AC/DC safely without blowing fuses constantly, and this delivers perfectly. The test leads included are high quality too.
