Is the Megger AVO850 a True-RMS multimeter suitable for VFDs and distorted signals?

Yes. The AVO850 uses True-RMS to provide accurate AC measurements on non-linear or distorted waveforms, ideal for VFDs, motor drives, and harmonics.

What safety rating does the Megger AVO850 meet?

It is certified to CAT IV 600 V and CAT III 1000 V, compliant with IEC 61010-1 for high-energy industrial environments.

Can the AVO850 measure temperature?

Yes. It supports temperature measurement using the supplied Type-K thermocouple probe.

What display does the AVO850 use?

A 6000-count backlit LCD with an analogue bar graph for fast visualization of fluctuating signals.

Who should use the Megger AVO850 Multimeter?

Industrial electricians, HVAC technicians, renewable energy engineers, and field service professionals requiring a rugged, high-safety multimeter.

-12%

Megger AVO850 Advanced True-RMS Multimeter – 50,000 Count TFT, Bluetooth Data Logging

Brand: Megger

SKU: 125133

Display: It features a high contrast 320×240 TFT colour display with a 50,000-count dual display capability.
Safety Rating: The multimeter is safety rated for CAT III 1000 V and CAT IV 600 V.
Measurement Type: It provides True RMS AC and AC+DC measurements, allowing for accurate readings of complex signals or nonlinear loads.
Accuracy: The device boasts a ±0.05% basic DC voltage accuracy.
Frequency Range: It has an AC bandwidth specified up to 10 kHz and can measure electronic frequency up to 10 MHz.
Data Logging Memory: The instrument can store up to 9,000 readings directly on the device.
Connectivity: It includes built-in Bluetooth connectivity and integrates with the Megger AVO Link app for Android and iOS, enabling real-time result sharing and offline analysis.
Battery Life: It operates on a rechargeable Li-ion battery that provides up to 15 hours of use from a single charge.
Durability: The multimeter features a rugged design that is tested to withstand a 2 m (6.5 ft) drop.
Ingress Protection: It has a double molded enclosure with an IP40 rating, providing water and dust resistance.

Datasheet PDF

Safe Buy
Fast Delivery
Original Guarantee
Online Payment

AED 1,999

AED 1,750

249 AED

(excl.VAT)

In stock

Call us

In-stock items are delivered within 2 business days.
We are not Supporting COD Payments Terms Outside UAE
For out-of-stock items, delivery may take 2 to 4 business weeks.

Request a rental quote in 3 quick steps.

Step 1 of 3 — Contact

First name

Last name

No login needed — guests can submit. We email your quote to this address.

Repair & calibration request — 2 steps.

Step 1 of 2 — Contact

First name

Last name

Phone

Company

Address

ZIP / Postal code

No login needed — guests can submit a repair request.

Description

Megger AVO850 – TRMS Digital Multimeter with Bluetooth Overview

The Megger AVO850 True-RMS Digital multimeter is a premium-grade instrument engineered for electricians, field engineers, and industrial maintenance teams who demand accuracy and durability. Built with Megger’s trusted reliability, this industrial multimeter is ideal for HVAC system testing, power distribution diagnostics, renewable energy verification, and complex troubleshooting.

Precision with True-RMS Technology

Unlike basic testers, the AVO850 uses True-RMS measurement to provide accurate AC readings on distorted or non-linear waveforms, such as variable frequency drives (VFDs), motor controllers, and harmonics-heavy circuits. With ranges up to 1000 V AC/DC and 10 A current, it delivers consistent results even in the most challenging environments.

Professional Features for Efficiency

Engineered for versatility, the AVO850 multimeter consolidates multiple tools into one device:

Measures AC/DC voltage, current, resistance, continuity, capacitance, frequency, duty cycle, diode test, and temperature.
6000-count backlit LCD with analogue bar graph for clear visualization.
Advanced functions: Min/Max/Avg capture, Peak Hold, Relative mode, and Data Hold.
Auto-ranging with manual override for faster testing.

This makes the AVO850 a True-RMS tester suitable for both everyday electrical checks and advanced industrial diagnostics.

Safety and Rugged Design

Safety is non-negotiable in professional environments. The Megger AVO850 is certified to CAT IV 600 V / CAT III 1000 V, compliant with IEC 61010-1 standards. A double-moulded, impact-resistant housing provides extra protection against drops and harsh site conditions, while its ergonomic, compact design ensures comfortable use in the field.

Why Choose the AVO850?

Trusted Megger brand with a reputation for professional-grade instruments.
Combines industrial reliability with modern usability.
Designed for preventive maintenance, commissioning, and troubleshooting.
Perfect upgrade from entry-level or mid-range multimeters for engineers seeking long-term durability.

Megger AVO850 Key Features

True-RMS measurements for accurate AC readings on distorted or non-linear loads.
Comprehensive measurement capabilities: AC/DC voltage & current, resistance, continuity, capacitance, frequency, duty cycle, diode testing, and temperature.
Large 6000-count backlit display with analogue bar graph for clear visualization.
Auto-ranging with manual override for faster and precise measurements.
Advanced data functions: Min/Max/Avg, Peak Hold, Relative measurement, and Data Hold.
Rugged double-moulded housing with drop protection.
CAT IV 600 V / CAT III 1000 V safety rating for high-energy systems.
Compact, ergonomic design suitable for extended field use.

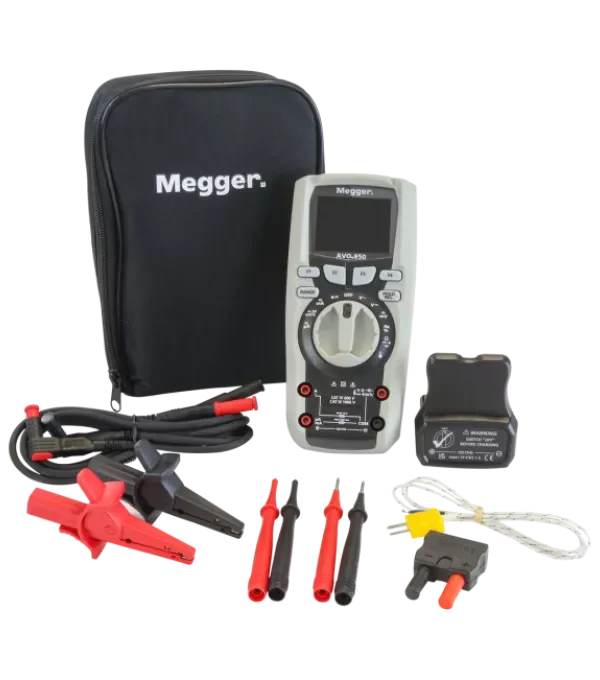

What’s in the Box Megger AVO850

Megger AVO850 True-RMS Digital Multimeter
1 m 4 mm non-fused, right angle connector test leads* (x2)
4 mm exposed metal Probes* (x2)
Exposed tip probes for CAT II probing (x2)
Red and black crocodile clips*
K-type multimeter adapter
K-type thermocouple lead
Soft case
4 mm cap plugs (x2)
Rechargeable battery and universal mains charger
User manual / quick start guide

Specifications

Function	Range	Resolution	Accuracy / Conditions
AC Voltage
AC Voltage	500 mV	0.01 mV	(±0.5% + 5) @ 50/60 Hz
AC Voltage	5 V	0.0001 V	(±1.0% + 5) @ 50/60 Hz; (±3.0% + 5) <1 kHz; (±5.5% + 20) <5 kHz
AC Voltage	50 V	0.001 V	(±1.5% + 10) @ 50/60 Hz; (±3.5% + 10) <1 kHz; unspecified <5 kHz
AC Voltage	500 V	0.01 V	(±1.5% + 10) @ 50/60 Hz; (±3.5% + 10) <1 kHz; unspecified <5 kHz
AC Voltage	1000 V	0.1 V	unspecified @ 50/60 Hz and <1 kHz
* For ACV: upper 10% of range applies for <20 kHz band.
DC Voltage
DC Voltage	500 mV *	0.01 mV	(±0.1% + 5 digits)
DC Voltage	5 V	0.0001 V	(±0.05% + 5 digits)
DC Voltage	50 V	0.001 V	(±0.05% + 5 digits)
DC Voltage	500 V	0.01 V	(±0.05% + 5 digits)
DC Voltage	1000 V	0.1 V	(±0.1% + 5 digits)
* Use REL mode (REL Q) to compensate for offsets.
AC + DC Voltage
AC+DC	5 V	0.0001 V	(±1.2% + 20) <1 kHz; (±3.0% + 20) <5 kHz
AC+DC	50 V	0.001 V	—
AC+DC	500 V	0.01 V	—
AC+DC	1000 V	0.1 V	—
Resistance
Resistance	500 Ω *	0.01 Ω	(±0.20% + 10)
Resistance	5 kΩ	0.0001 kΩ	(±0.20% + 5)
Resistance	50 kΩ	0.001 kΩ	(±0.20% + 5)
Resistance	500 kΩ	0.01 kΩ	(±0.50% + 5)
Resistance	5 MΩ	0.0001 MΩ	(±0.50% + 5)
Resistance	50 MΩ	0.001 MΩ	(±2.0% + 10)
* Use REL mode (REL Q) to compensate for offsets.
Temperature (Type-K)
Temperature (Type-K)	−200 to 1350 °C	0.1 °C	(±1.0% of reading + 3.0 °C) / (±1.0% of reading + 5.4 °F). Probe accuracy not included.
DC Current
DC Current	500 µA	0.01 µA	(±0.2% + 5)
DC Current	5000 µA	0.1 µA	(±0.2% + 5)
DC Current	50 mA	0.001 mA	(±0.2% + 5)
DC Current	500 mA	0.01 mA	(±0.3% + 8)
DC Current	10 A	0.001 A	(±0.5% + 8)
AC Current
AC Current	500 µA	0.01 µA	(±0.8% + 5) <1 kHz; (±3% + 5) <5 kHz
AC Current	5000 µA	0.1 µA	—
AC Current	50 mA	0.001 mA	—
AC Current	500 mA	0.01 mA	—
AC Current	10 A	0.001 A	—
All AC current ranges specified from 5% to 100% of range. Burden: mA input ≈ 3.8 mV/A, A input ≈ 30 mV/A.
Capacitance
Capacitance	5 nF *	0.001 nF	(±1.5% + 20)
Capacitance	50 nF	0.01 nF	(±1.5% + 8)
Capacitance	500 nF	0.1 nF	(±1.0% + 8)
Capacitance	5 µF	0.001 µF	(±1.5% + 8)
Capacitance	50 µF	0.01 µF	(±1.0% + 8)
Capacitance	500 µF	0.1 µF	(±1.5% + 8)
Capacitance	10 mF	0.01 mF	(±2.5% + 20)
* With film capacitor or better; use REL to zero residual.
Electronic Frequency
Electronic Frequency	50 Hz	0.001 Hz	(±0.05% + 5)
Electronic Frequency	500 Hz	0.01 Hz	(±0.01% + 5)
Electronic Frequency	5 kHz	0.0001 kHz	(±0.01% + 5)
Electronic Frequency	50 kHz	0.001 kHz	(±0.01% + 5)
Electronic Frequency	500 kHz	0.01 kHz	(±0.01% + 5)
Electronic Frequency	5 MHz	0.0001 MHz	(±0.01% + 5)
Electronic Frequency	10 MHz	0.001 MHz	unspecified
Electrical Frequency
Electrical Frequency	10.00 Hz – 10 kHz	0.01 Hz – 0.001 kHz	(±0.5% of reading)
Duty Cycle
Duty Cycle	0.1% – 99.90%	0.01%	(±1.2% of reading + 2 digits). Pulse width: 100 µs – 100 ms; Frequency: 5 Hz – 150 kHz.
