Megger Mvct Vt And Ct Analyzer

The Megger Mvct Vt And Ct Analyzer is a lightweight, robust, portable unit capable of testing both current and voltage transformers.

SKU: 5016

MME Shopping Event

Hurry and get discounts on Most of MME Products up to 20%

Call for Price

17 People watching this product now!

Megger Mvct Vt And Ct Analyzer

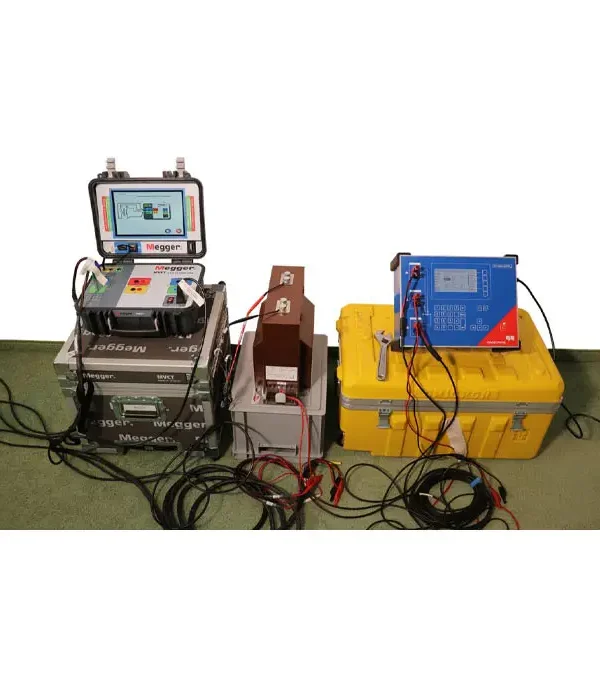

The Megger MVCT test set is a lightweight, robust, portable unit capable of testing both current and voltage transformers. At less than 20 lb (10Kg) the MVCT is a highly portable unit that also offers accuracy in testing. Capable of performing saturation, ratio, polarity, winding resistance, and insulation tests on current transformers, the MVCT can also be used for testing metering and protection class voltage/potential transformers.

The MVCT provides a microprocessor controlled variable voltage and current output along with precision instrumentation for automatically testing single and multi-ratio CTs and VT’s. The MVCT makes testing CTs easy. It will directly connect to multi ratio CT’s and perform all tests – saturation, ratio and polarity, winding resistance, and insulation – on all taps with the push of a button and without changing leads. This greatly reduces testing time.

Key Features of the Megger ct Tester

  • Comprehensive Testing Capabilities: The MVCT ct analyzer megger offers a wide range of tests for both voltage transformers (VT) and current transformers (CT). It can perform tests including turns ratio, excitation current, polarity, winding resistance, and secondary burden, which are crucial for verifying the operational integrity of transformers.
  • High Accuracy: This analyzer provides high precision measurements which are essential for critical assessments and ensure compliance with international standards.
  • Ease of Use: Designed with the user in mind, the MVCT features an intuitive interface and a large, clear display that facilitates easy operation and data review, even in field conditions.
  • Portability: The device is relatively compact and lightweight for a transformer analyzer, making it suitable for field testing where portability is necessary.
  • Automated Test Sequences: The MVCT supports automated test sequences that streamline the testing process, reduce the potential for human error, and save valuable time during maintenance checks.

Applications of the mvct Megger ct analyzer

  • Utility Substations: The MVCT is extensively used in substations for routine diagnostics and maintenance. It helps ensure that VTs and CTs are functioning correctly to maintain system reliability and accuracy.
  • Manufacturing Facilities: In facilities where VTs and CTs are manufactured, the MVCT is used to perform final checks before the transformers are shipped out, ensuring they meet all operational specifications.
  • Field Service: The analyzer is also used by field service technicians for commissioning new installations and troubleshooting existing systems to quickly diagnose and rectify issues with VTs and CTs.
  • Power System Studies: For studies that require accurate transformer data, the MVCT provides essential metrics that help in analyzing system conditions and planning for future upgrades or expansions.

Benefits Of ct vt Testing For Technicians and Engineers

  1. Reliability: By providing thorough and accurate assessments of transformer health, the MVCT helps in predicting potential failures and planning preventive maintenance, thereby enhancing the reliability of power distribution systems.
  2. Efficiency: With automated testing features and easy-to-use interface, the MVCT reduces testing time and increases productivity, allowing technicians to cover more equipment in less time.
  3. Safety: Regular testing with the MVCT can identify transformer issues before they lead to failures, reducing the risk of accidents and improving overall system safety.
  4. Cost-Effectiveness: By diagnosing and rectifying transformer issues early, the MVCT helps avoid costly repairs and downtime, ultimately saving money for utilities and industries.

Megger Mvct Vt And Ct Analyzer Specifications:

  • Input : 100 to 265 V, 50 or 60 Hz, 10 A max.
  • Outputs : Output Voltage 0 to 300 V AC 0 to 300 V DC Output Current 0 to 1 A eff Output Power 300 VA
  • Inputs : Ranges 0 to 2/10/50/300 V
  • Resolution : 0.0001 V
  • Accuracy : ±0.02% of reading and ± .02% range typical ±0.05% of reading and ±0.05% range maximum
  • Current Measurement
  • Range : 0 to 1.0 AResolution 0.0001 AAccuracy ±0.08% of reading ±.08% range typical ±0.2% of reading ±0.2% range maximum
