Description

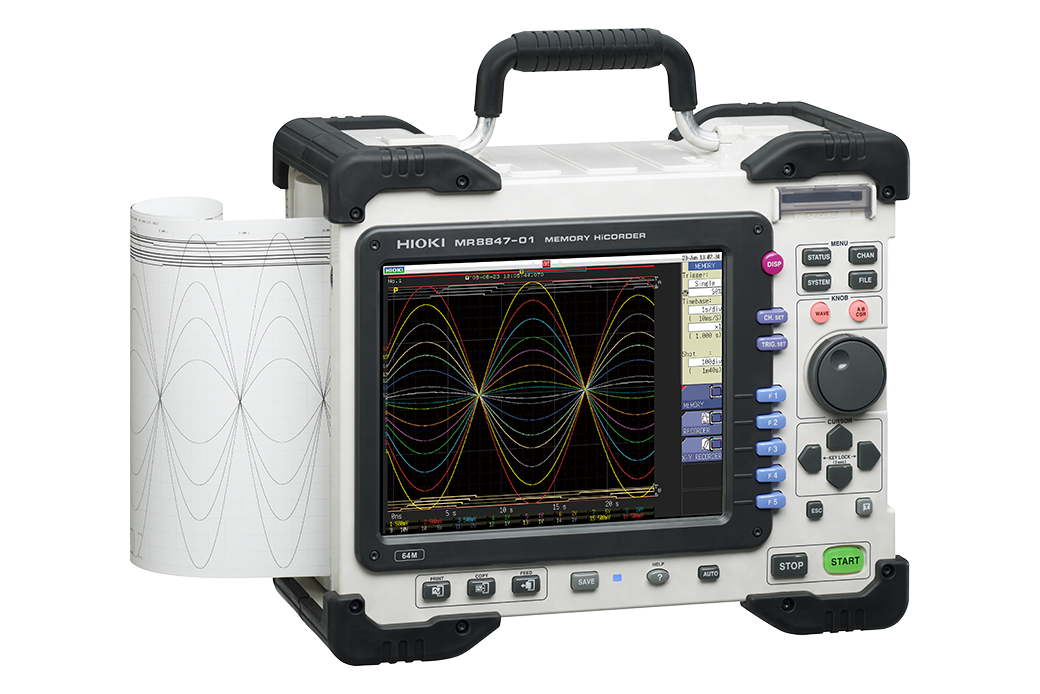

At MME, we offer the Hioki MEMORY HiCORDER MR8847-51, a cutting-edge memory recorder designed for high-speed recording and real-time measurement applications. With its advanced features and robust construction, this device is ideal for a wide range of industries, including electrical, electronics, and automotive.

Whether you’re looking to capture high-speed events or monitor complex systems, the Hioki MEMORY HiCORDER MR8847-51 has got you covered. Its high-speed recording capabilities allow you to capture events in real-time, while its real-time measurement capabilities enable you to monitor complex systems with ease.

Hioki MR8847-51 Key Features

The Hioki MEMORY HiCORDER MR8847-51 boasts an impressive range of features, including:

16 analog channels + 16 logic channels (standard)
10 analog channels + 64 logic channels (standard)
5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range
DC to 5 MHz (-3dB), using the 8966
5 µs to 5 min/div, 26 ranges,at 100 points/div resolution
MEMORY (high-speed recording), RECORDER (real-time recording)
Waveform judgment (at Memory, FFT function)
32M-words/ch to 4M-words/ch, Total capacity 64MW memory

Who Needs the Hioki MR8847-51?

The Hioki MEMORY HiCORDER MR8847-51 is designed for a wide range of applications, including:

Electrical and electronics testing and measurement

Automotive testing and measurement

Research and development

Quality control and assurance

Hioki MR8847-51 Applications

The Hioki MEMORY HiCORDER MR8847-51 is ideal for a variety of applications, including:

High-speed recording of electrical signals

Real-time measurement of complex systems

Automotive testing and measurement

Research and development

Quality control and assurance

Why Buy Hioki MR8847-51 from mme-ae?

Browse our recorders and dataloggers. Read more in our measurement guides.

At mme-ae, we offer the Hioki MEMORY HiCORDER MR8847-51 at competitive prices, along with exceptional customer service and support. Our team of experts is dedicated to helping you find the right solution for your measurement needs.

Whether you’re looking to purchase a single unit or a large quantity, we’ve got you covered. Contact us today to learn more about the Hioki MEMORY HiCORDER MR8847-51 and how it can benefit your business.

Hioki MR8847-51 Specifications

Number of channels	[8 analog input modules]: 16 analog channels + 16 logic channels (standard) [5 analog input modules + 3 logic input modules]: 10 analog channels + 64 logic channels (standard 16 channels + 48 channels in logic input modules) * For analog modules, channels are insulated vs. each other and vs. unit ground. For logic modules and integrated standard logic channels, all channels use the unit ground.
Measurement ranges (20 div full-scale)	5 mV to 20 V/div, 12 ranges, resolution : 1/100 of range (using the 8966) 5 mV to 20 V/div, 12 ranges, resolution : 1/1600 of range (using the 8968)
Max. allowable input	400 V DC (using the 8966/8968)
Frequency characteristics	DC to 5 MHz (-3dB, using the 8966), DC to 100 kHz (-3dB, using the 8968)
Time axis (MEMORY)	5 µs to 5 min/div, 26 ranges,at 100 points/div resolution, three steps of time-axis magnification from ×2 to ×10, and 13 steps of time-axis compression from ×1/2 to ×1/20,000
Measurement functions	MEMORY (high-speed recording), RECORDER (real-time recording), X-Y RECORDER (X-Y real-time recording), FFT
Other functions	Waveform judgment (at Memory, FFT function)
Memory capacity	MR8847-01: 32M-words/ch (using 2 Analog channels) to 4M-words/ch (using 16 Analog channels), Total capacity 64MW memory MR8847-02: 128M-words/ch (using 2 Analog channels) to 16M-words/ch (using 16 Analog channels), Total capacity 256MW memory MR8847-03: 256M-words/ch (using 2 Analog channels) to 32M-words/ch (using 16 Analog channels), Total capacity 512MW memory
Removable storage	USB memory, CF card slot × 1 (Up to 2 GB), Hard disk drive (option, 80GB)
Printing	216 mm (8.50 in) × 30 m (98.43 ft), thermal paper roll, Recording speed : Max. 50 mm (1.97 in)/sec
Display	10.4 inch TFT color LCD (SVGA, 800 × 600 dots)
Displayable languages	English, Japanese, Korean, and Chinese
External interfaces	[LAN]:100BASE-TX; Functions: DHCP, DNS supported, FTP server, HTTP server [USB]: USB2.0 compliant, series A receptacle 1 port, series B receptacle 1 port (file transfer to PC, remort control from PC)
Power supply	100 to 240 V AC, 50/60 Hz (130 VA max., when using printer: 220 VA max.) 10 to 28 V DC (when using the optional factory-installed DC power unit 9784)
Dimensions and mass	351 mm (13.82 in) W × 261 mm (10.28 in) H × 140 mm (5.51 in) D, 7.8 kg (275.1 oz) (main unit only)
Included accessories	Instruction Manual ×1, Measurement Guide ×1, Application Disk (Wave Viewer Wv, Communication Commands table) ×1, Power cord ×1, Input cord label ×1, USB cable ×1, Printer paper ×1, Roll paper attachment ×2
