Description

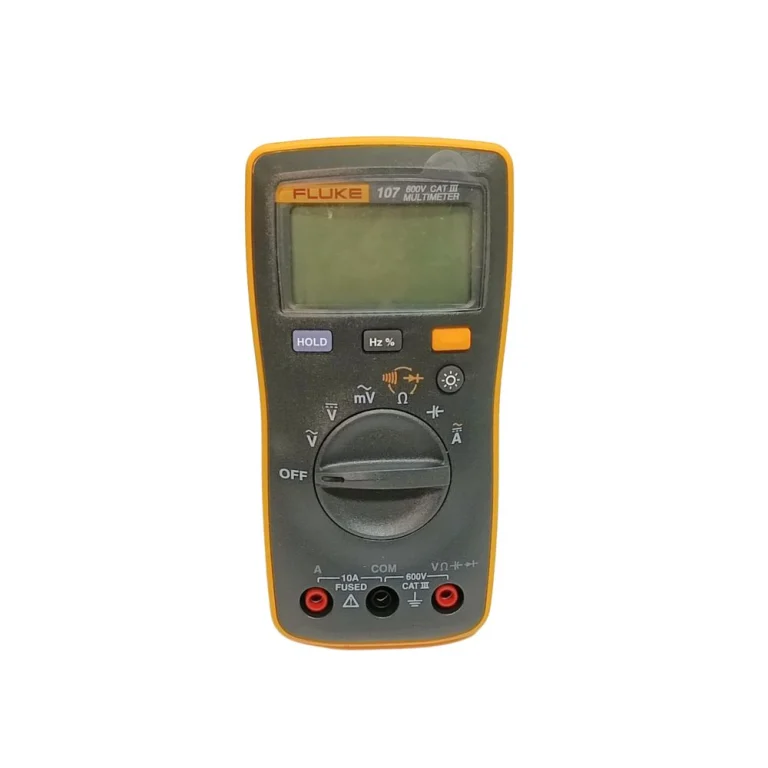

Fluke-107 ERTA Key Features

Precision specifications
AC voltage (40 Hz to 500 Hz) 1: Range
6.000 V 60.00 V 600.0 V: 0.001 V 0.01 V 0.1 V
DC voltage: 6.000 V 60.00 V 600.0 V
Exchange millivolts: 600.0 mV
Diode test 2: 2.000 V
Resistance (ohm): 400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ
Capacitor 3: 50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF

Who Needs the Fluke-107 ERTA?

Field technicians search for a dependable Fluke-107 ERTA when troubleshooting HVAC, electrical, or industrial systems. Engineers look up model-level specs before specifying instruments on drawings. Maintenance teams compare kits and accessories. Buyers searching “buy Fluke-107 ERTA” or “Fluke-107 ERTA UAE” use this listing to confirm the correct SKU and request pricing from MME.

Fluke-107 ERTA Applications

Use the Fluke-107 ERTA in commissioning, preventive maintenance, diagnostics, and acceptance testing where accurate measurements matter. Match the instrument to your category and environment using only the published specifications on this page.

Why Buy Fluke-107 ERTA from MME?

MME supplies measurement and test equipment across the UAE with product pages that keep brand, model, and SKU accurate. Request a quote for the Fluke-107 ERTA and related accessories from mme-ae.com.

Fluke-107 ERTA Specifications

Precision specifications
AC voltage (40 Hz to 500 Hz)¹		Range	Resolution	Accuracy
		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	1.0 % + 3
DC voltage		6.000 V 60.00 V 600.0 V	0.001 V 0.01 V 0.1 V	0.5 % + 3
Exchange millivolts		600.0 mV	0.1 mV	3.0 % + 3
Diode test²		2.000 V	0.001 V	10 %
Resistance (ohm)		400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitor³		50.00 nF 500.0 nF 5.000 μF 50.00 μF 500.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency⁴ Hz (10 Hz – 100 kHz)		50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1 % + 3
Duty cycle⁴		1 % to 99 %	0.10 %	1 % typical case⁵
AC current (40 Hz – 200 Hz)		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC		4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the open circuit test voltage is 2.0 V and the short circuit current is < 0.6 mA. The parameters do not include errors due to test lead capacitance and capacitor substrate (up to 1.5 nF in the 50 nF range). All AC current, frequency, and duty cycle are specified from 1% to 100% of the range. Input values below 1% of range are not specified. Typically, the frequency is 50 Hz or 60 Hz and the duty cycle is 10% to 90%.
Features	Overload protection	Input impedance (nominal value)	Common mode rejection ratio	Normal mode rejection ratio
AC voltage	600 V ¹	>10 MΩ <100 pF ²	>60 dB at 50 Hz or 60 Hz at DC current	−
Exchange millivolts	600 mV	>1M, <100 pF	>80 dB at 50 Hz or 60 Hz	−
DC voltage	600 V ¹	>10 MΩ <100 pF	>100 dB at 50 Hz or 60 Hz at DC current	>60 dB at 50 Hz or 60 Hz
Up to 6 x 105 V Hz For medium voltage (alternating current), the input impedance is approximately 1 MΩ.
General technical indicators
The highest voltage applied to any terminal and ground		600 V
Display (LCD)		6000 counts, updated three times per second
Type of battery		Two AAA batteries (NEDA 24A, IEC LR03)
Battery life		At least 200 hours
Temperature
Operating temperature		0 °C to 40 °C
Storage temperature		-30 °C to 60 °C
Relative humidity
Working humidity		No condensation below 10 °C ≤ 90 % at 10 °C to 30 °C; ≤ 75 % at 30 °C to 40 °C
Working humidity, 40 MΩ range		≤ 80 % at 10 °C to 30 °C; ≤ 70 % at 30 °C to 40 °C
Altitude
Working elevation		2000 m
Storage altitude		12,000 m
Temperature coefficient		0.1 X (specified accuracy) / °C (<18 °C or >28 °C)
Current input fuse protection		11A, 1000V fast-melting type, must use Fluke designated parts
Volume (height x width x length)		142 mm x 69 mm x 28 mm
Weight		200 g
Protection level		IEC 60529: IP 40
Safety		IEC 61010-1: 600 V CAT III, pollution degree 2
Electromagnetic environment		IEC 61326-1: Portable
Electromagnetic compatibility		Applicable only in Korea. Class A equipment (industrial broadcasting and communication equipment)¹
¹ This product meets the requirements of industrial (Class A) electromagnetic wave equipment, which should be noted by the seller or user. The device is suitable for use in a work environment, not a home environment.
